5-32 Removal and Replacement Procedures
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Writer: The Integrity Group Saved by: The Integrity Group Saved date: 10/26/00 12:36 PM
Part Number: 128679-006 File name: Ch05
2. Turn the computer bottom side up with the front facing forward.
3. Disconnect the battery terminal cable from the system board
(Figure 5-24).

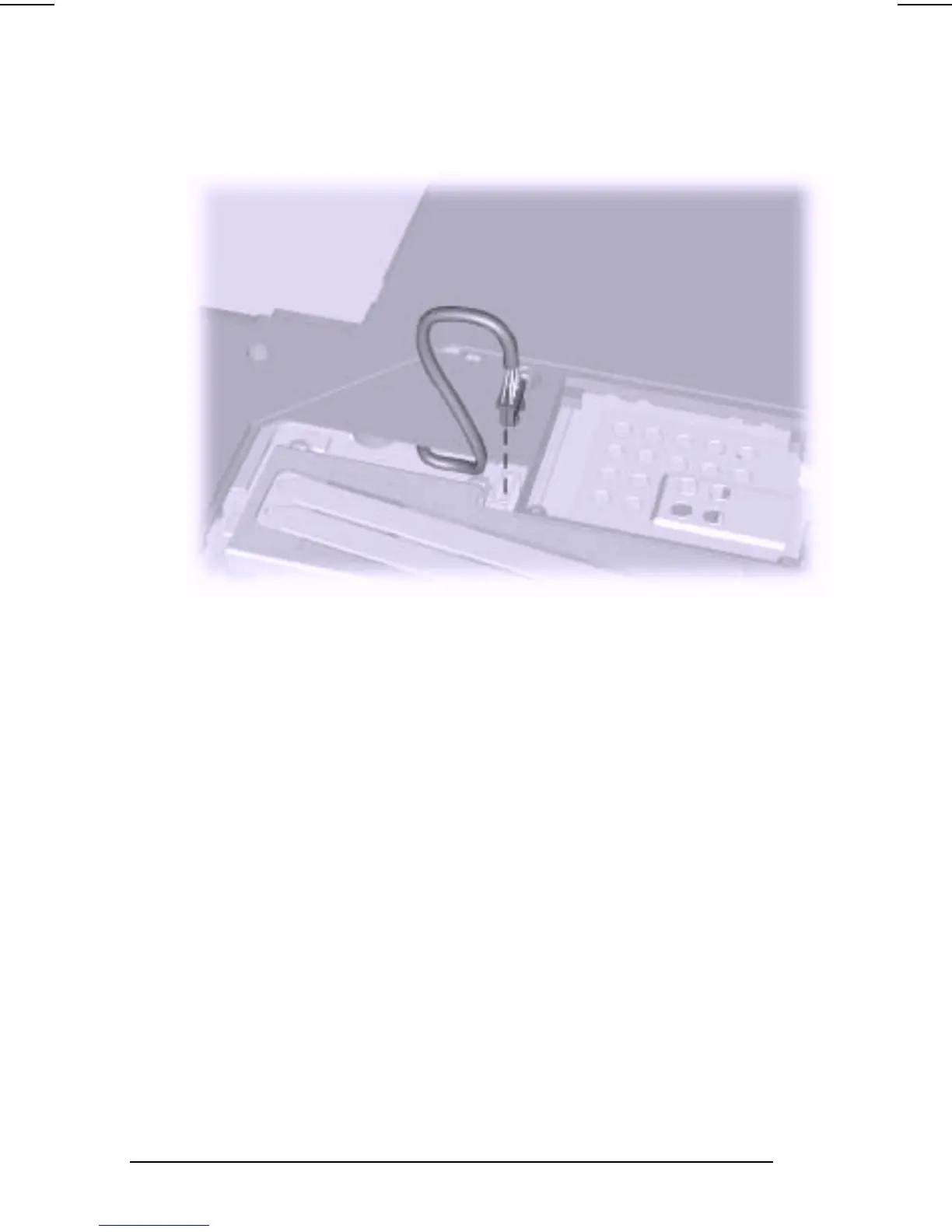

Figure 5-24. Disconnecting the Battery Terminal Cable
