Compaq Armada E500 Series Maintenance And Service Guide

Connector Pin Assignments A-7
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Writer: David Calvert Saved by: The Integrity Group Saved date: 09/13/00 2:38 PM
Part Number: 128679-005 File name: Appa.doc

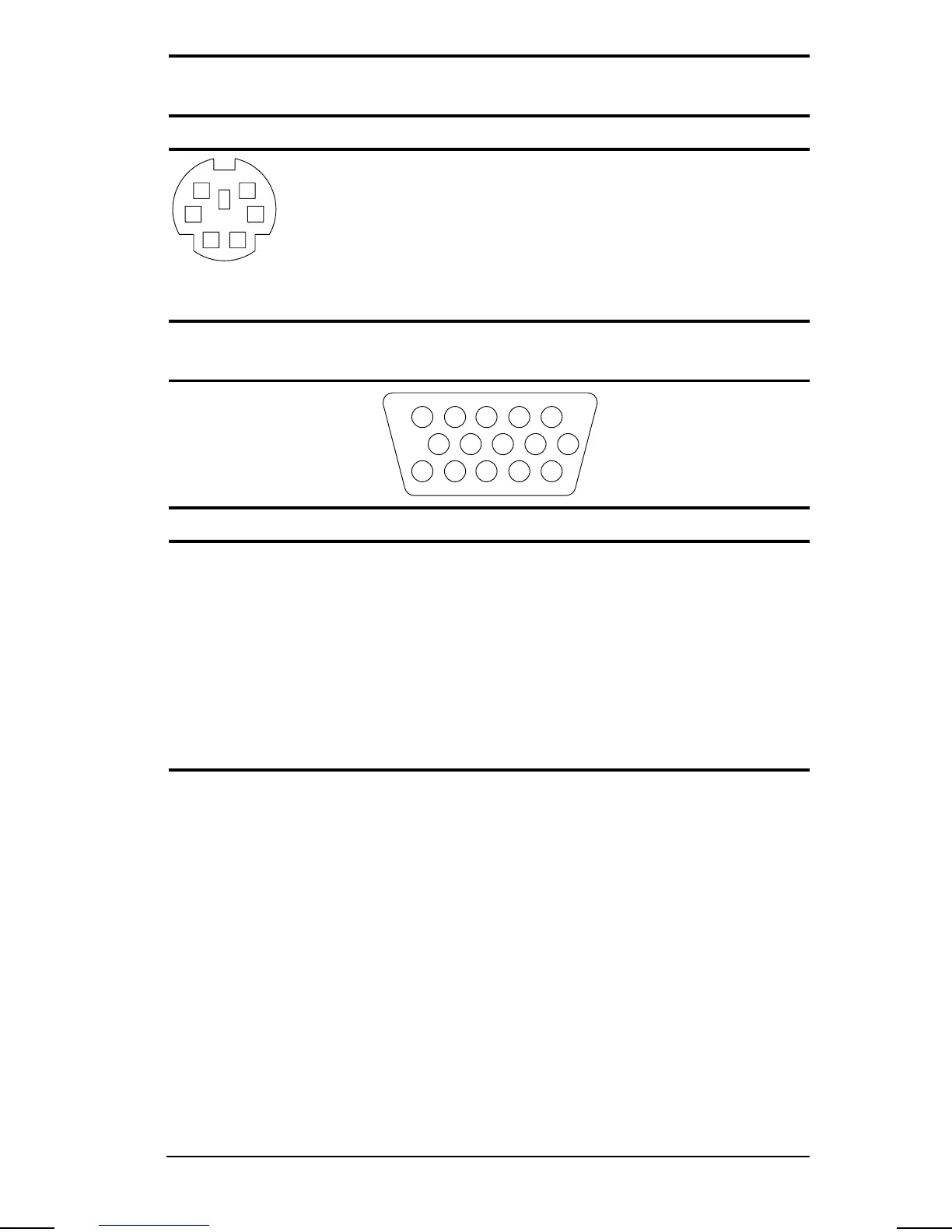

Table A-8
External Keyboard/Mouse Connector
Connector Pin Signal
KEY
65
43
2
1
1
2
3
4
5
6
Keyboard/mouse data
Keyboard/mouse data
Ground
+5 VDC
Keyboard/mouse CLK
Keyboard/mouse CLK
Table A-9
External Monitor Connector
1
6
23
87
45
10
KEY
1112131415
Pin Signal Pin Signal
1 Red analog 9 NC
2 Green analog 10 Ground
3 Blue analog 11 NC
4 NC 12 DDC data
5 Ground 13 Horizontal sync
6 Ground 14 Vertical sync
7 Ground 15 DDC clock
8 Ground

Compaq Armada E500 Series Specifications

General

Processor	Intel Pentium III
Chipset	Intel 440BX
Optical Drive	24x CD-ROM or DVD-ROM
Networking	10/100 Ethernet
Wireless	Optional 802.11b
RAM	Up to 512 MB
Display	14.1-inch TFT, 1024x768 resolution
Graphics	ATI Rage Mobility with 8 MB
Ports	USB, Parallel, Serial, VGA, PS/2, Infrared
Battery	Lithium-Ion
Operating System	Windows 98, Windows 2000
Storage	6 GB - 12 GB Hard Disk Drive
Battery Life	Approximately 2-3 hours
