5-26 Removal and Replacement Procedures
5.15 Display Assembly
NOTE: To prevent the computer from tipping over during removal of the display
assembly, a MultiBay device can be inserted into the computer MultiBay.
1. Prepare the computer for disassembly (Section 5.5).
2. Remove the keyboard (Section 5.12).
3. Remove the switch cover (Section 5.14).
4. Disconnect the audio/microphone cable
➊
(Figure 5-24).
5. Disconnect the display cable ➋.
6. Disconnect the inverter cable ➌.

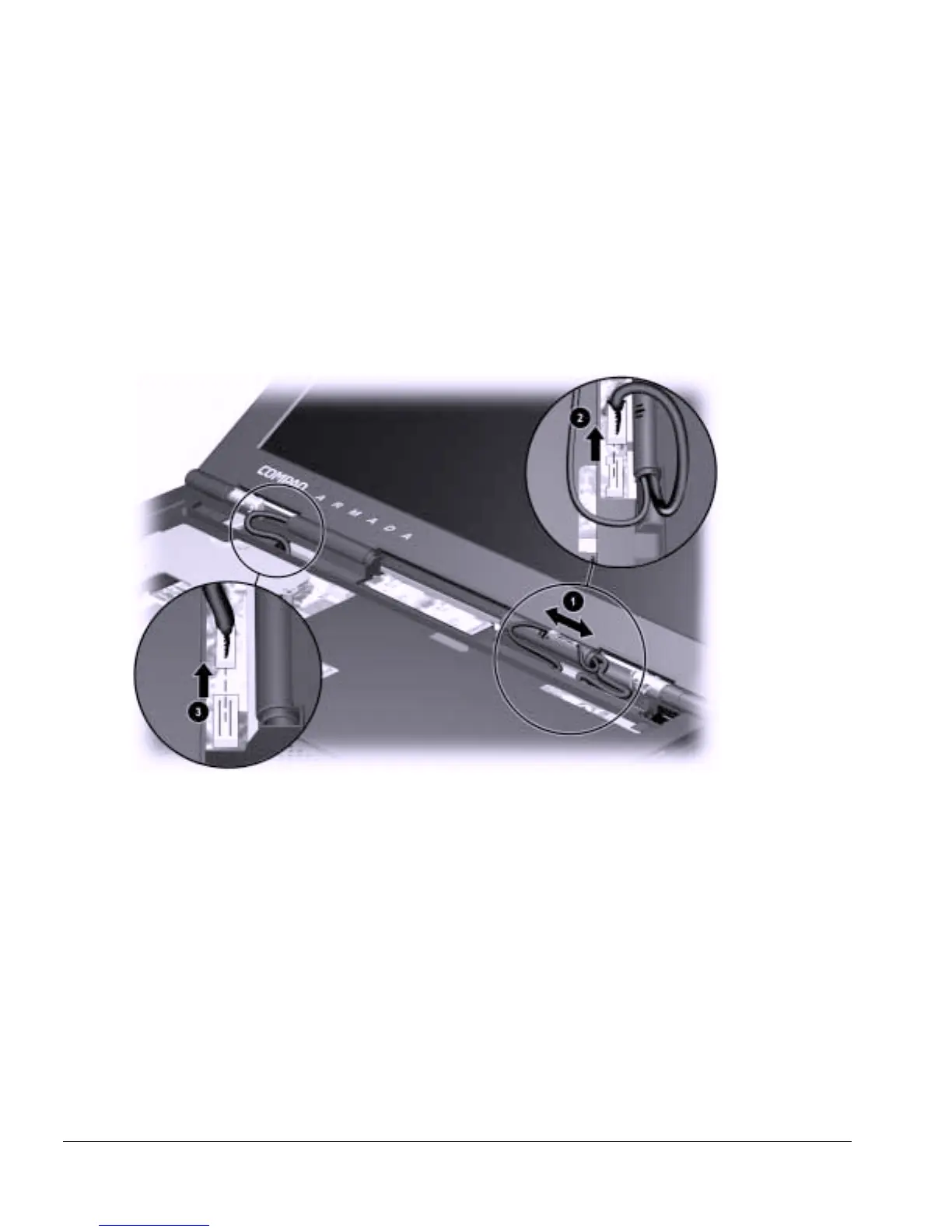

Figure 5-24. Disconnecting the Audio/Microphone and Display Connectors
