Removal and Replacement Procedures 5-11
5.8 MultiBay Devices
Removing MultiBay Devices
1. Save all work, exit all applications, and shut down the computer.
2. Remove the media (diskette, CD-ROM, DVD-ROM) from the drive. Be sure the
drive tray is closed.
3. Tilt the computer at an angle ➊ so the bottom of the computer is accessible
(Figure 5-10).
4. Slide the MultiBay release latch ➋ forward.
5. Pull the device out of the MultiBay ➌.

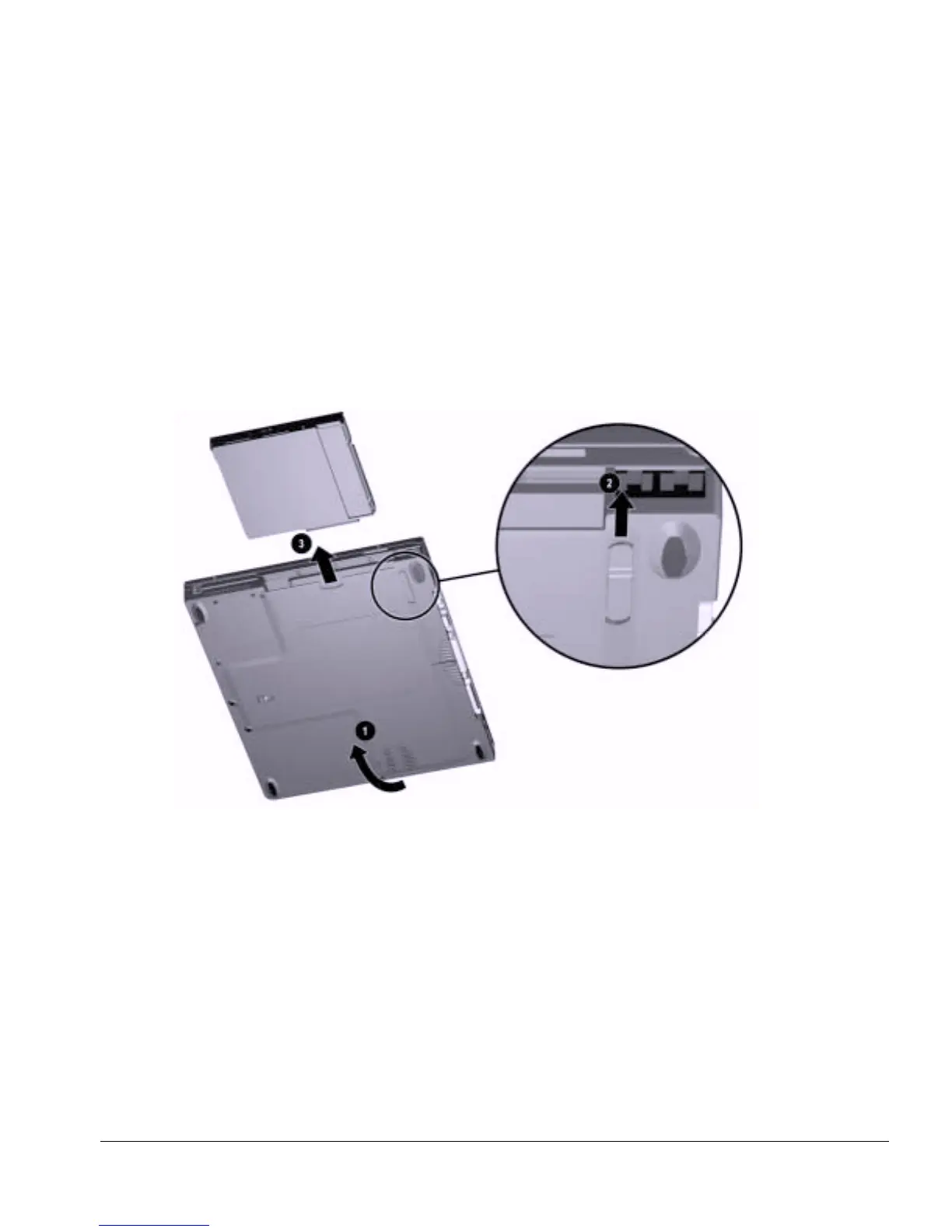

Figure 5-10. Releasing a Device from the MultiBay
NOTE: If you are not inserting another device into the MultiBay, insert the MultiBay
weight saver included with the computer.
