5-34 Removal and Replacement Procedures
5.18 Voltage Converter Board
1. Prepare the computer for disassembly (Section 5.5).
2. Remove the keyboard (Section 5.12).
3. Remove the switch cover (Section 5.14).
4. Remove the display assembly (Section 5.15).
5. Remove the top cover (Section 5.16).
6. Lift up on the front and right side of the voltage converter board
to disconnect it from the system board (Figure 5-32).
7. Remove the voltage converter board.

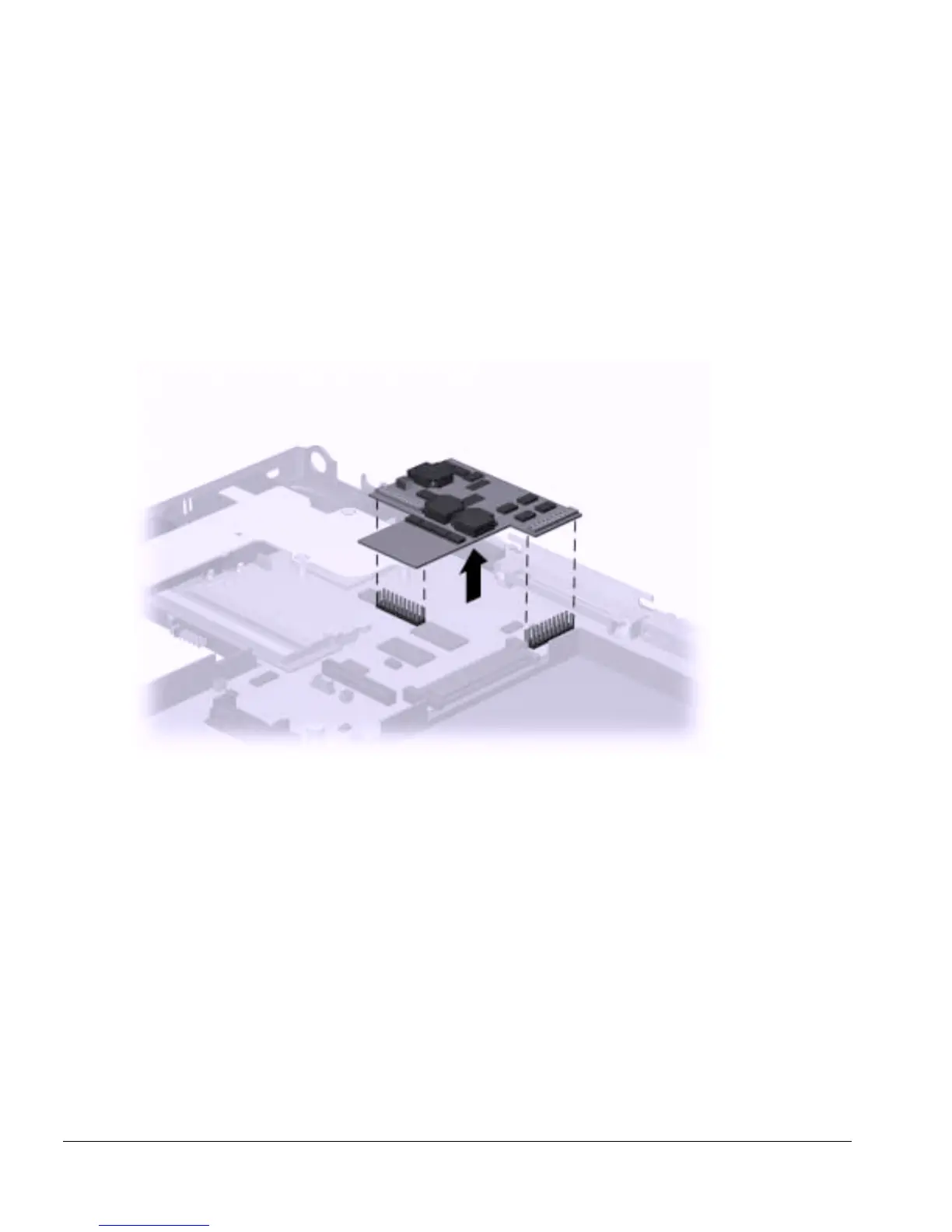

Figure 5-32. Removing the Voltage Converter Board
Reverse the above procedure to connect the voltage converter board.
