1-12 Product Description
1.3 Computer External Components
The computer external components on the front, rear, left side, right side, top, and
bottom, of the computer as well as the keyboard components for the pointing stick
model and TouchPad model are shown in the following figures and described in the
accompanying tables.
Front Components

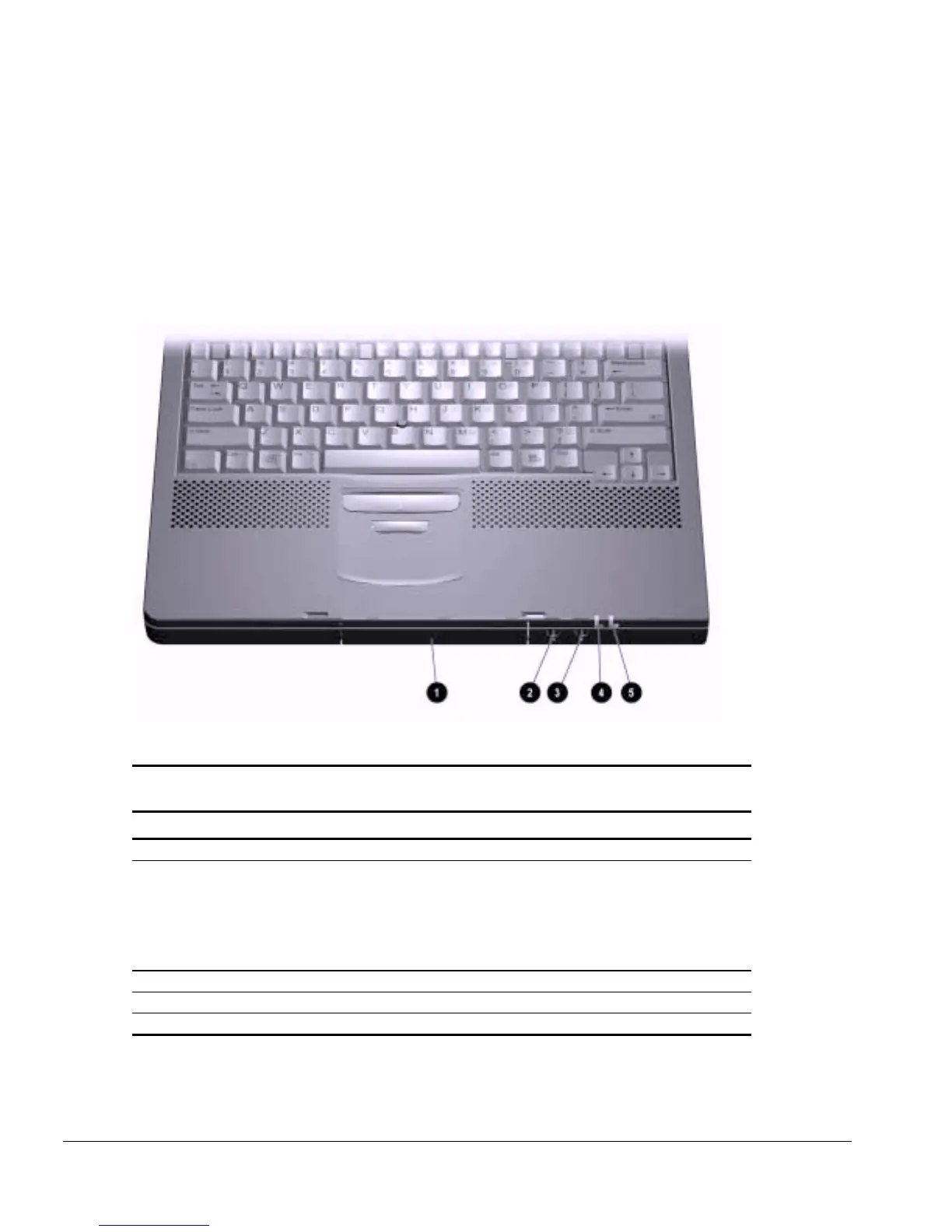

Figure 1-2 Front Components
Table 1-5
Front Components
Item Components Function
1 Hard drive bay Accepts removable hard drive.
2 Stereo speaker/headphone jack Connects external speakers, headset, or headphones
to the computer.
This jack is driven by an amplifier and has volume
control. The internal computer speakers are turned off
when external speakers or headphones are plugged
into this jack.
3 Microphone jack Connects an external microphone to the computer.
4 System-on light Indicates that the computer is turned on.
5 Battery charge light Indicates that the computer is charging a battery pack.
