Removal and Replacement Procedures 5-35
5.19 Infrared Board
1. Prepare the computer for disassembly (Section 5.5).
2. Remove the keyboard (Section 5.12).
3. Remove the switch cover (Section 5.14).
4. Remove the display assembly (Section 5.15).
5. Remove the top cover (Section 5.16).
6. Remove the screw that secures the infrared board to the base assembly ➊
(Figure 5-33).
7. Remove the infrared board assembly ➋.

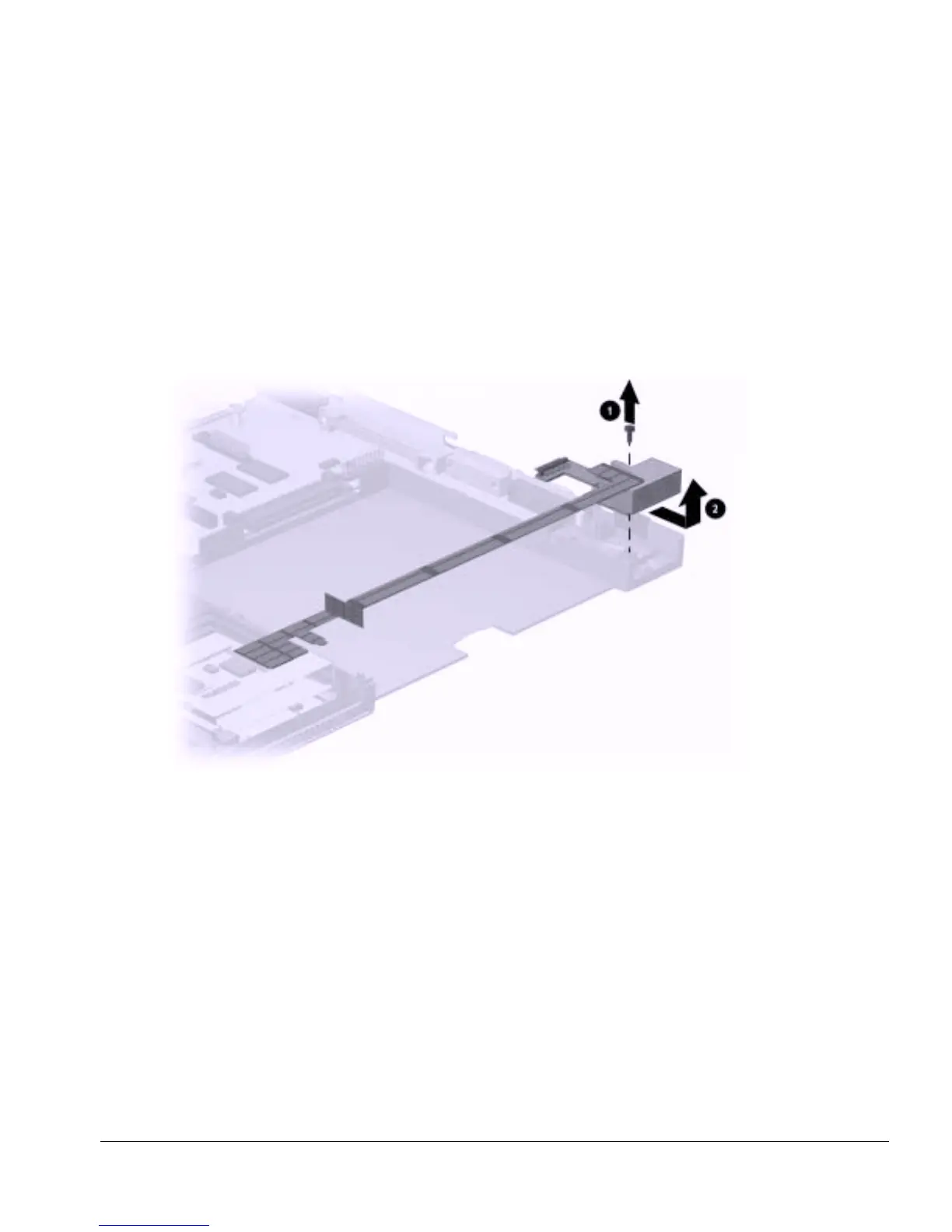

Figure 5-33. Removing the Infrared Board Assembly
Reverse the above procedure to connect the voltage converter board.
