Installing a Memory Expansion Board
All memory expansion boards supported by the computer can be used in either of the
two memory expansion slots. The memory expansion boards are also all keyed
(notched) to ensure correct positioning.
1. Insert the memory expansion board into an empty memory expansion slot at a
45-degree angle
➊
. Slide it into place until it is seated while tilted (Figure 5-21).
2. Push the memory expansion board down until the plastic retention clips
➋
snap
into place.

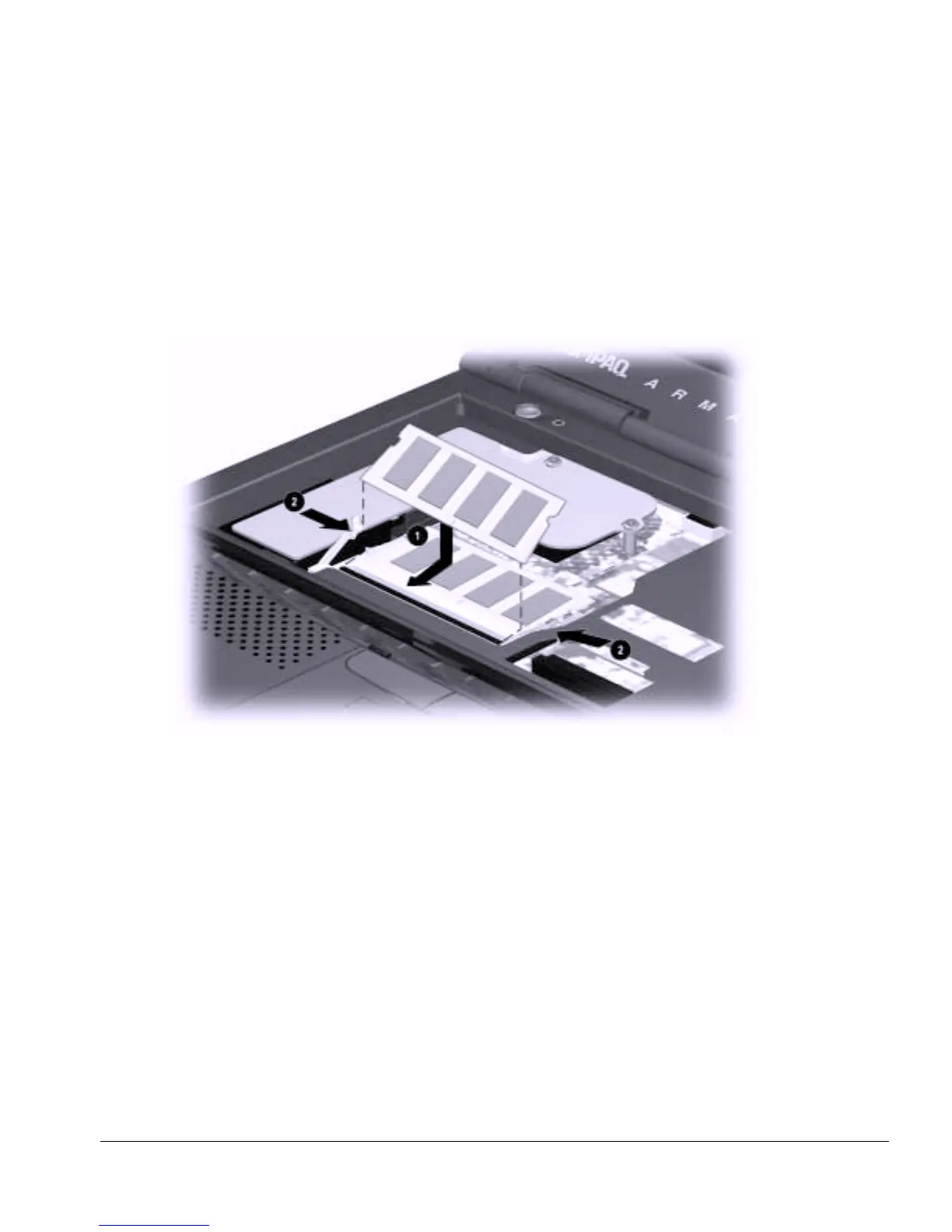

Figure 5-21. Installing a Memory Expansion Board
NOTE: If, after installation, a memory expansion board fails to be recognized,
remove the board and make sure the memory expansion slot is clean and free of
debris. Reinsert the card.
