1-18 Product Description
Bottom Components

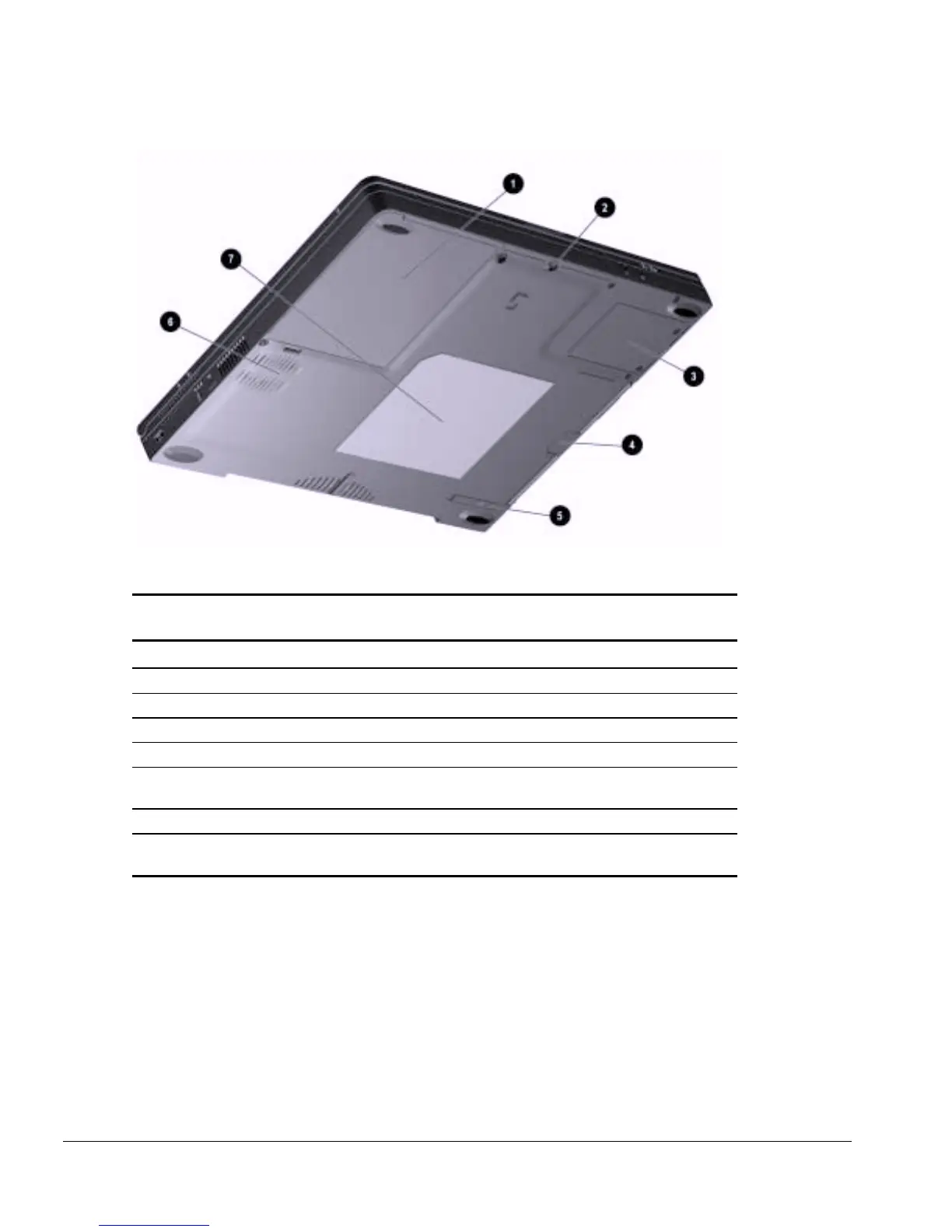

Figure 1-7 Bottom Components
Table 1-10
Bottom Components
Item Component Function
1 Battery bay Holds the primary battery.
2 Hard drive security screw Secures the hard drive in the hard drive bay.
3 Modem slot cover Contains the mini PCI modem card.
4 MultiBay notch Helps to grasp a drive or battery pack from the MultiBay.
5 MultiBay release latch Releases a removable drive or battery pack from the
MultiBay.
6 Fan Provides airflow to cool internal components.
7 Label Identifies computer and provides the serial number
needed when calling Compaq customer support.
