5-36 Removal and Replacement Procedures
5.20 System Board
1. Prepare the computer for disassembly (Section 5.5).
2. Remove the modem/combo card (Section 5.10).
3. Remove the RTC battery (Section 5.11).
4. Remove the keyboard (Section 5.12).
5. Remove the switch cover (Section 5.14).
6. Remove the display assembly (Section 5.15).
7. Remove the top cover (Section 5.16).
8. Remove the USB board (Section 5.17).
9. Remove the voltage converter board (Section 5.18).
10. Remove the infrared board (Section 5.19).
11. Turn the computer top side up with the rear panel facing forward.
12. Remove the two bushing guides (Figure 5-34).
NOTE: The left bushing guide is shorter than the right.

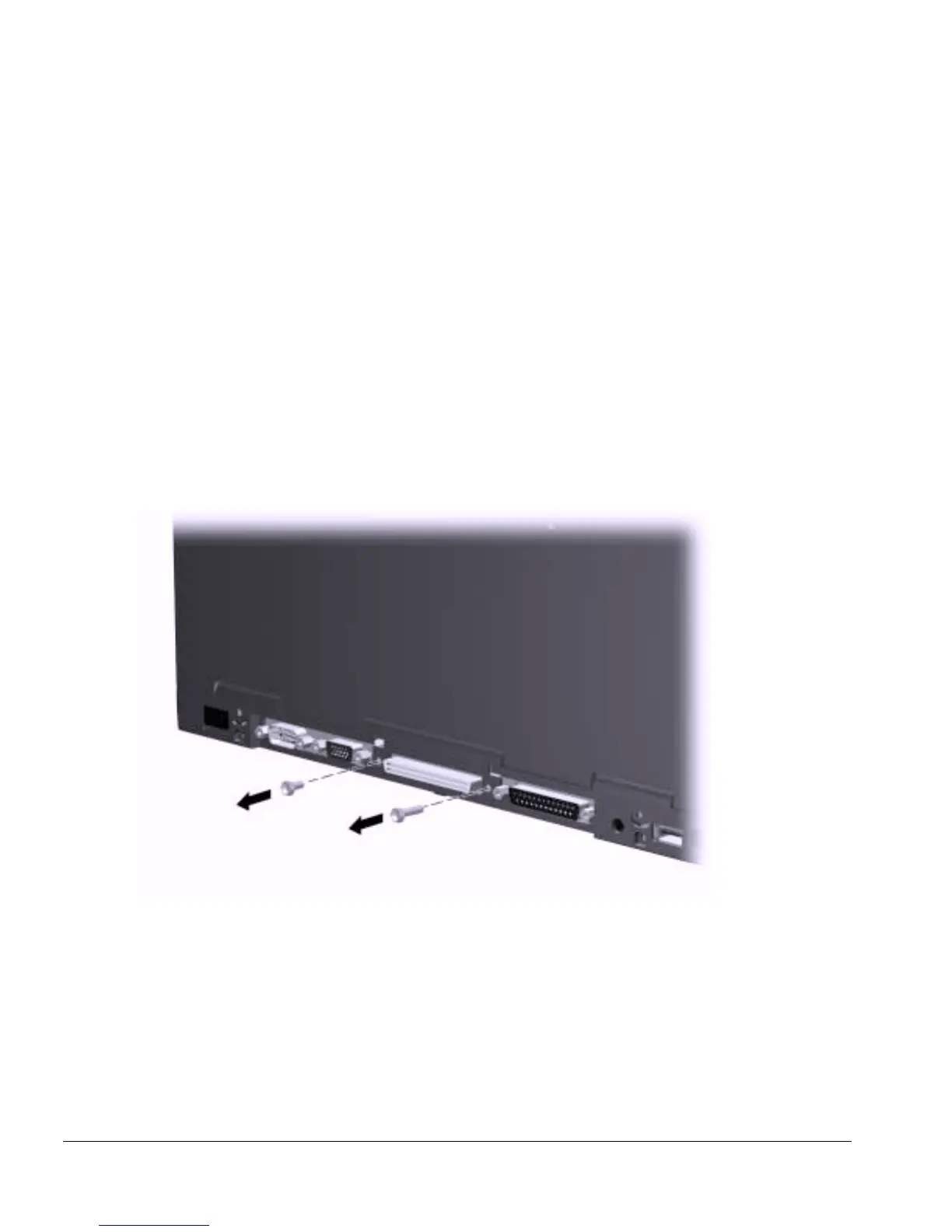

Figure 5-34. Removing the Bushing Guides
