13. Disconnect the memory bracket/connector by lifting up on the left
side ➊ (Figure 5-35).
14. Remove the screw underneath the memory bracket/connector that secures the
system board to the base assembly ➋.
15. Remove the two screws that secure the system board to the base assembly ➌.

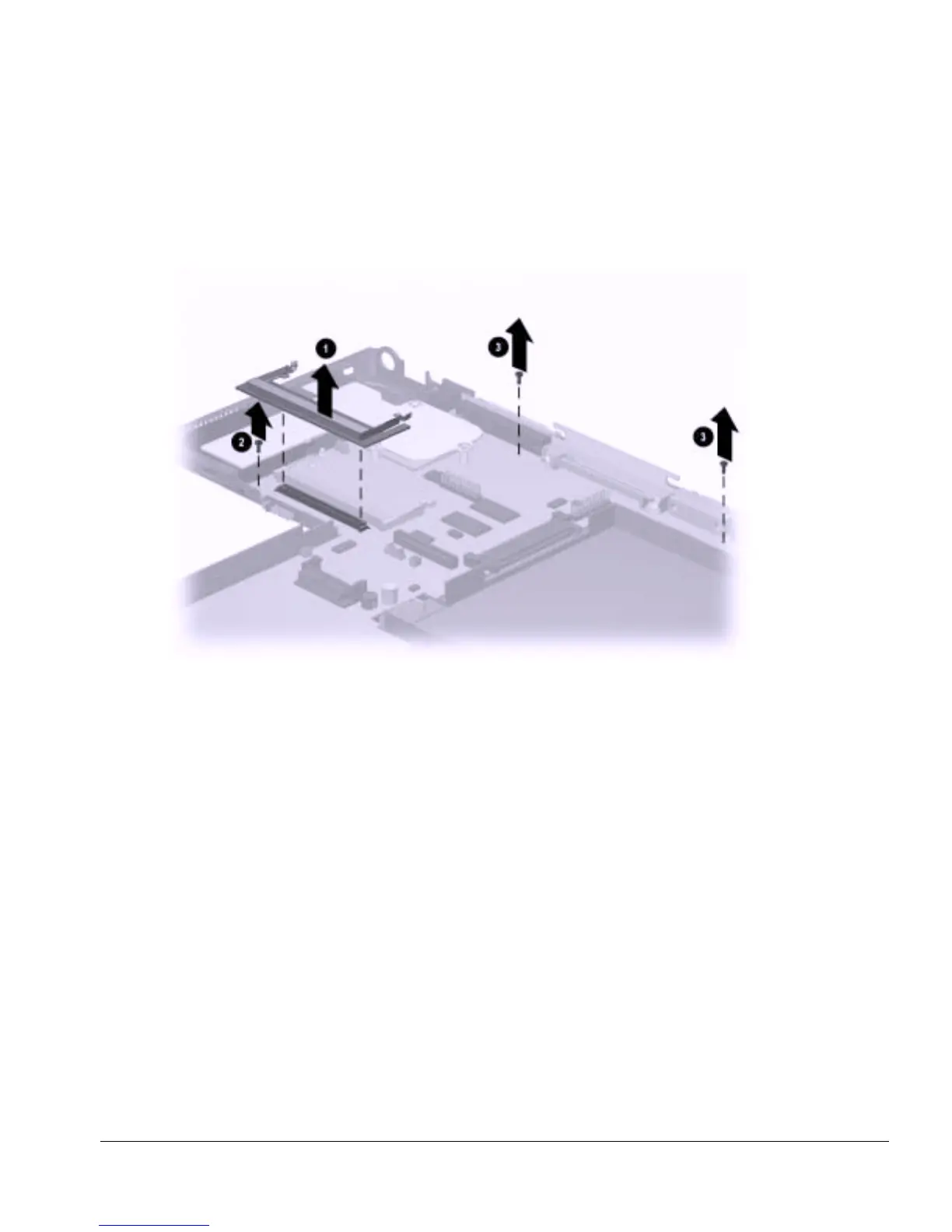

Figure 5-35. Removing the Memory Bracket/Connector and System Board Screw
