Removal and Replacement Procedures
5-31
9.
Disconnect the pointing device button cable
➊
(Figure 5-29).
10.
Disconnect the right
➋
and left
➌
speaker cables.
11.
Partially lift the top cover.
12.
Disconnect the LED board cable
➍
.
13.
Remove the top cover.

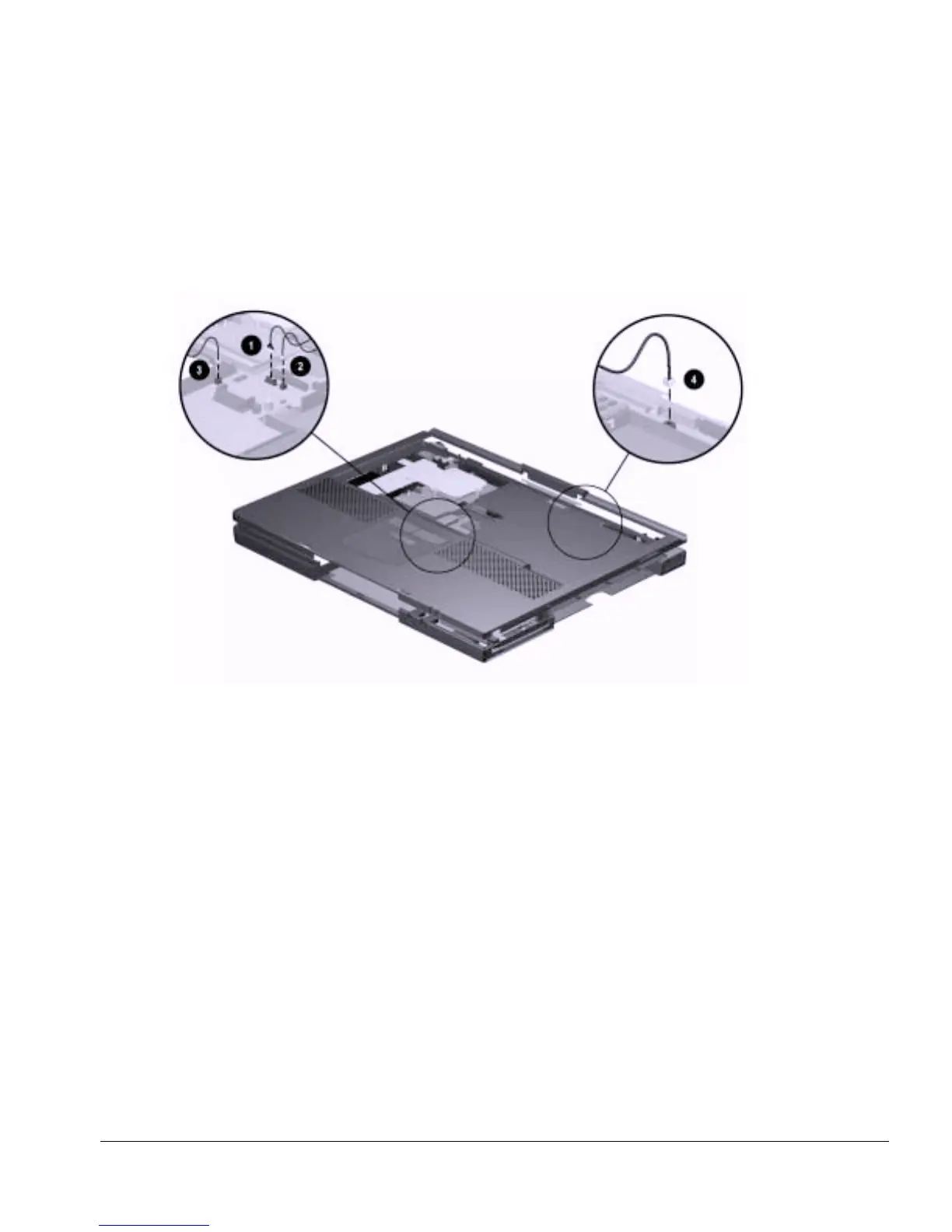

Figure 5-29.
Removing the Top Cover
Reverse the above procedures to install the top cover.
105
107
Table of Contents
Default Chapter
4
Table of Contents
4
Using this Guide
8
Symbols
8
Technical Notes
8
Serial Number
9
Locating Additional Information
9
Chapter 1 PRODUCT DESCRIPTION
10
Computer Features and Models
10
Models
11
Features
15
Intelligent Manageability
15
Accessing the Web Agent
16
Asset Management
16
Fault Management
17
Security Management
17
Configuration Management
18
Managing Power
18
Accessing Power Management
18
Power Management Levels
18
Computer Components
19
System Memory Options
19
Power Equipment
20
Mass Storage Devices
20
Computer External Components
21
Front Components
21
Rear Components
22
Left Side Components
23
Right Side Components
24
Top Components
25
Bottom Components
27
Easypoint IV Pointing Stick Model Components
28
Touchpad Components
29
Design Overview
30
System Board
30
Chapter 2 TROUBLESHOOTING
32
Preliminary Steps
33
Clearing Passwords
34
Power-On Self-Test (POST)
34
POST Error Messages
35
Compaq Utilities
38
Selecting Computer Setup or Compaq Diagnostics for Windows
38
Using Computer Setup
39
File Menu
39
Security Menu
40
Advanced Menu
41
Using Compaq Diagnostics for Windows
42
Factory Default Settings
42
Troubleshooting Without Diagnostics
44
Before Replacing Parts
44
Obtaining Update Information with Info Messenger
44
Checklist for Solving Problems
45
Chapter 3 ILLUSTRATED PARTS CATALOG
58
Serial Number Location
58
Computer System Major Components
59
Plastics Kit Components
65
Cable Kit Components
67
Mass Storage Devices
68
Miscellaneous
69
Chapter 4 REMOVAL and REPLACEMENT PRELIMINARIES
70
Tools Required
70
Service Considerations
70
Plastic Parts
70
Cables and Connectors
71
Preventing Damage to Removable Drives
71
Preventing Electrostatic Damage
72
Packaging and Transporting Precautions
72
Workstation Precautions
73
Grounding Equipment and Methods
74
Electrostatic Voltage Levels and Protective Materials
75
Chapter 5 REMOVAL and REPLACEMENT PROCEDURES
76
Serial Number
76
Disassembly Sequence Chart
77
Disconnecting the Computer
78
Computer Feet
79
Preparing the Computer for Disassembly
80
Battery Packs
81
Removing a Primary Battery Pack from the Battery Bay
81
Inserting a Primary Battery Pack in the Battery Bay
82
Hard Drives
83
Removing a Hard Drive from the Hard Drive Bay
83
Inserting a Hard Drive into the Hard Drive Bay
85
Multibay Devices
86
Removing Multibay Devices
86
Inserting Multibay Devices
87
Inserting a Hard Drive into the Multibay Adapter
88
PC Cards
89
Removing a PC Card
90
Inserting a PC Card
91
Modem/Combo Card
92
RTC Battery
94
Keyboard
95
Memory Expansion
97
Removing a Memory Expansion Board
97
Installing a Memory Expansion Board
98
Switch Cover
99
Display Assembly
101
Top Cover
104
USB Board
108
Voltage Converter Board
109
Infrared Board
110
System Board
111
Fan
115
Chapter 6 SPECIFICATIONS
118
Physical and Environmental
118
Display
119
Hard Drive
120
Diskette Drive
121
CD-ROM Drive
122
DVD-ROM Drive
123
Drive
124
Battery Pack
125
System DMA
125
System Interrupts
126
System I/O Addresses
127
System Memory Map
129
Appendix A C P a
130
Connector Pin Assignments
130
Appendix B POWER CORD SET REQUIREMENTS
136
3-Conductor Power Cord Set
136
Country-Specific Requirements
137
Index
138
