Removal and Replacement Procedures 5-41
12. Remove the screw ➊ that secures the fan to the system board (Figure 5-39).
13. Remove the fan ➋.

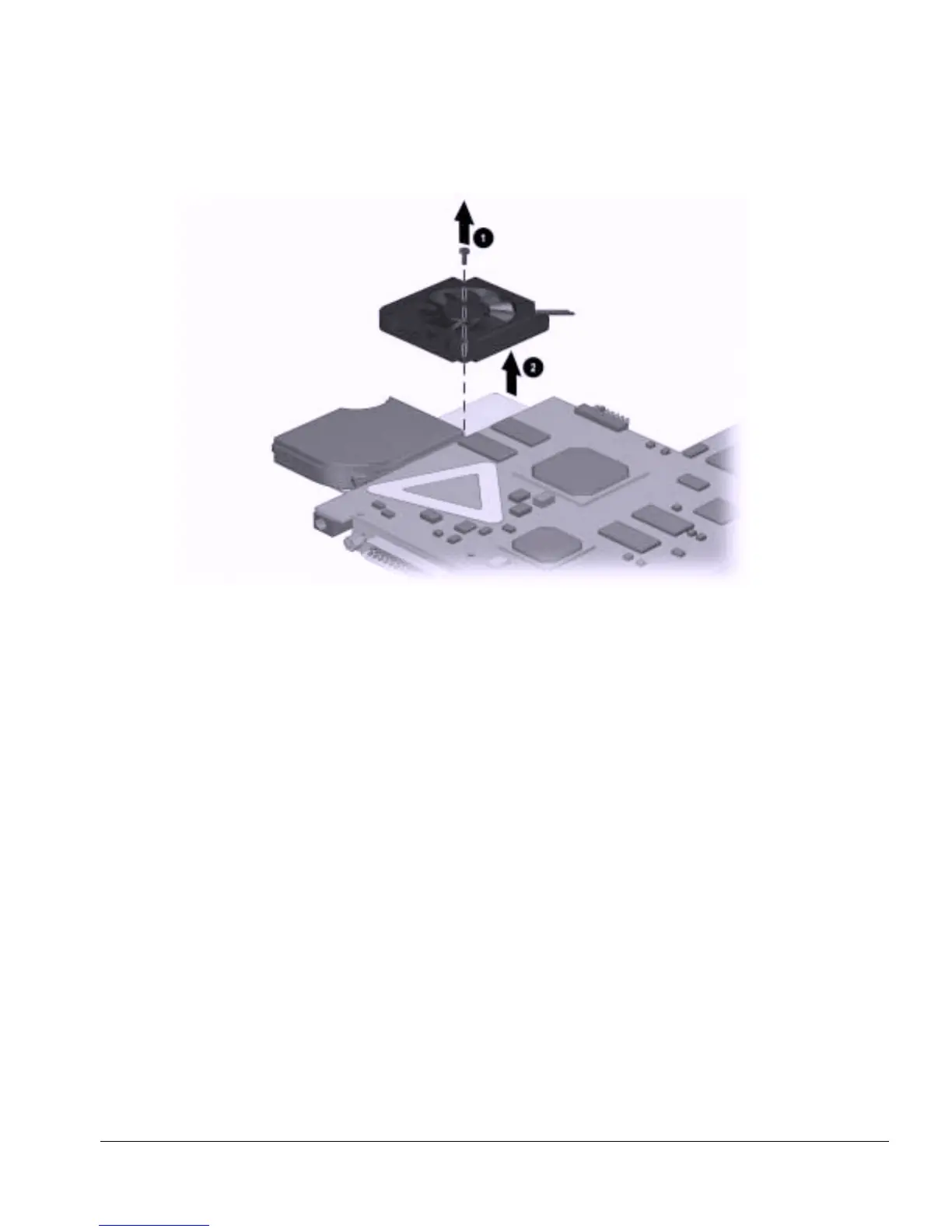

Figure 5-39. Removing the Fan
Reverse the above procedure to install the fan to the system board.
