5-18
Removal and Replacement Procedures
5.
Lift the left side of the modem/combo card to disconnect it from the system board.
Swing the card to the right
➊
(Figure 5-16).
6.
Disconnect the LAN and modem connectors from the card
➋
.

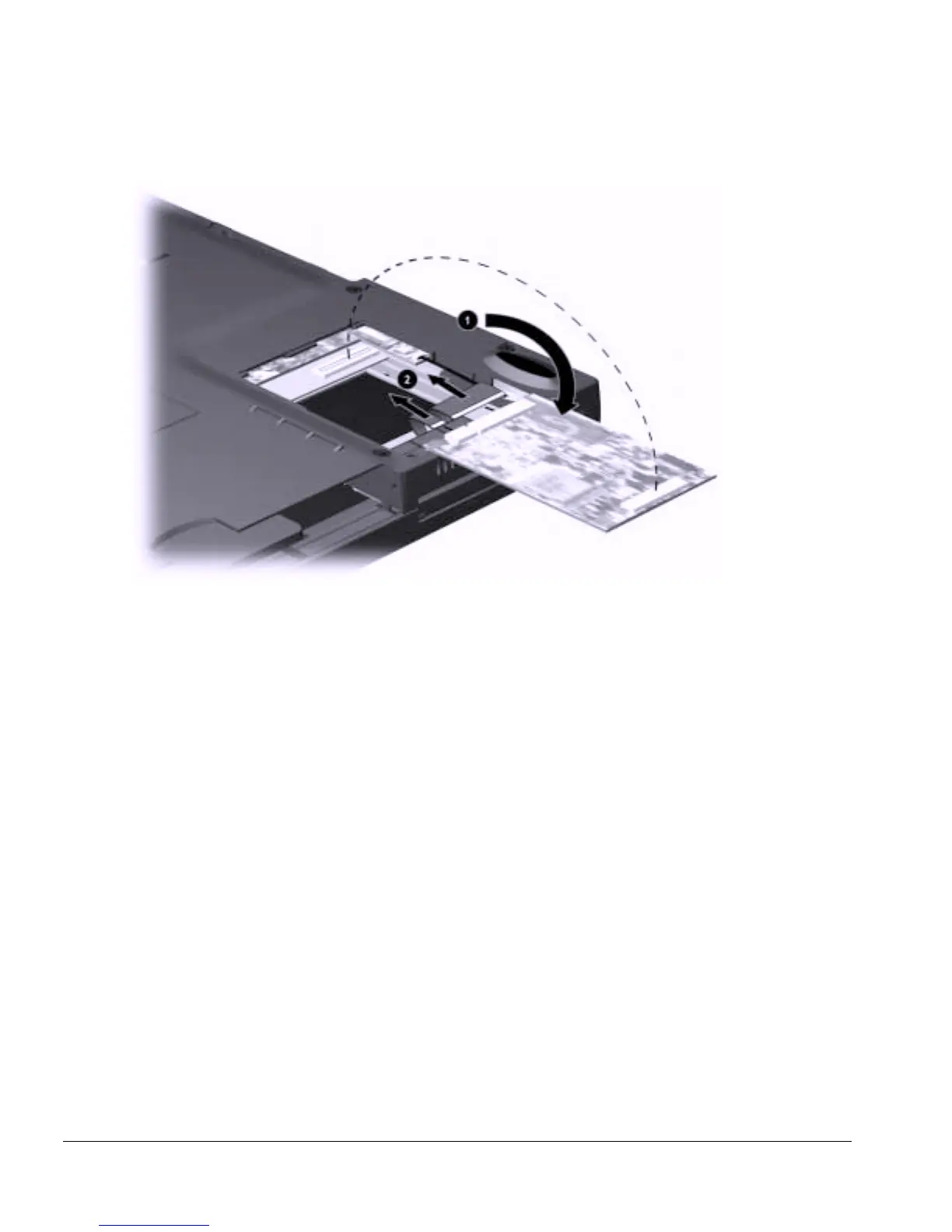

Figure 5-16.
Removing a Modem/Combo Card
Reverse the above procedure to install the modem/combo card and its cover.
92
94
