Removal and Replacement Procedures 5-21
5. Release the Zero Insertion Force (ZIF) connector to which the keyboard cable is
connected ➊ (Figure 5-19).
6. Disconnect the keyboard cable from the connector on the system board ➋.
7. Release the ZIF connector to which the pointing device cable is connected ➌
(EasyPoint IV models only).
8. Disconnect the pointing device cable from the connector on the top cover ➍
(EasyPoint IV models only).

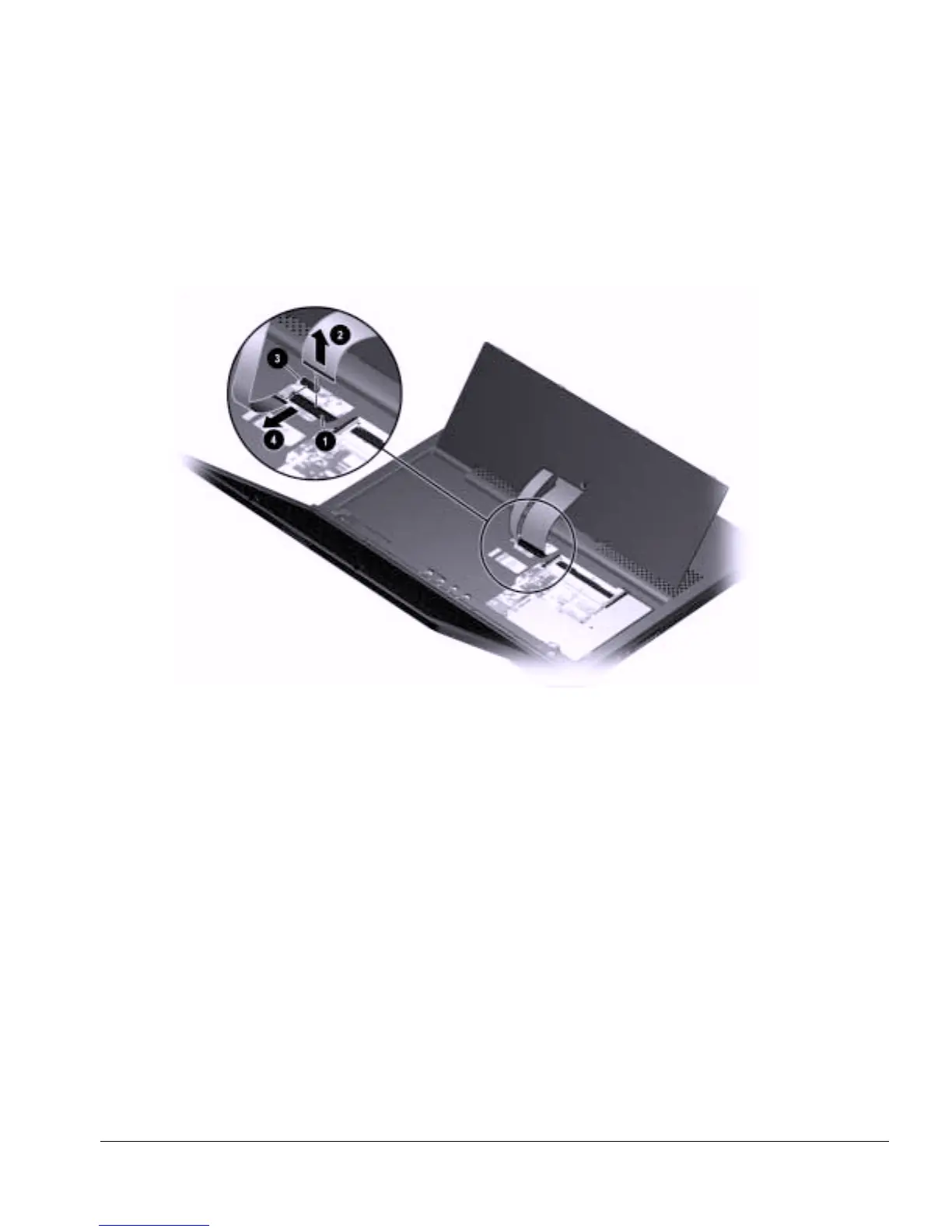

Figure 5-19. Disconnecting the Pointing Device and the Keyboard Cables
9. Remove the keyboard.
Reverse the above procedure to install the keyboard.
