 System status
All the I/O are shown and grouped in three categories. Output is shown in term of percentage.
Actual control functions are set as direct acting or reverse acting.
 Universal inputs show all the analog sensors
 Analog outputs shows the current output value in 0-100%.
0% = 0Vdc
100% = 10Vdc
 Optional sensors show derived reading from connected sensors. The following
calculated values are available.
o Return/Outside air dew point
o Return/Outside air enthalpy
o 24 hours temperature min/max

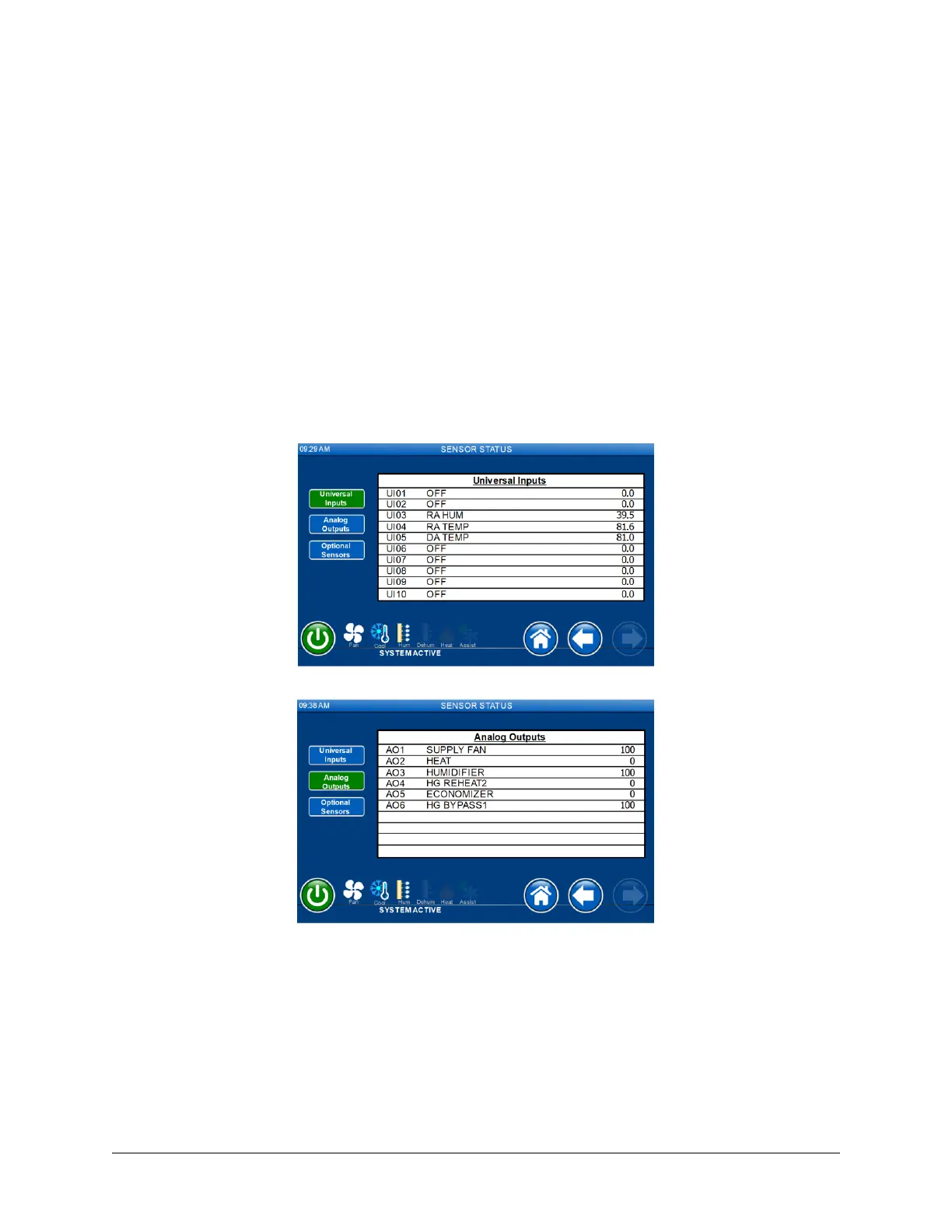

Figure 10. Universal inputs
Figure 11. Universal outputs
