7.2 Analog Output
All analog outputs support output voltage from 0-10Vdc. Min/Max function only takes effect
when unit is active. All output shall become 0Vdc once system off has taken place.
Support function
 OFF No function
 Cool Cooling output
 Heat Heating output
 Humidifier Humidifier output
 Supply fan Supply fan output
 HG bypass Hotgas bypass
 Economizer Air or chilled water econ
 Condenser fan Condenser fan output. Requires HP transducer
 HG Reheat Hotgas reheat used in dehumidification
 Chilled water Chilled water output
 VFD comp Digital compressor output

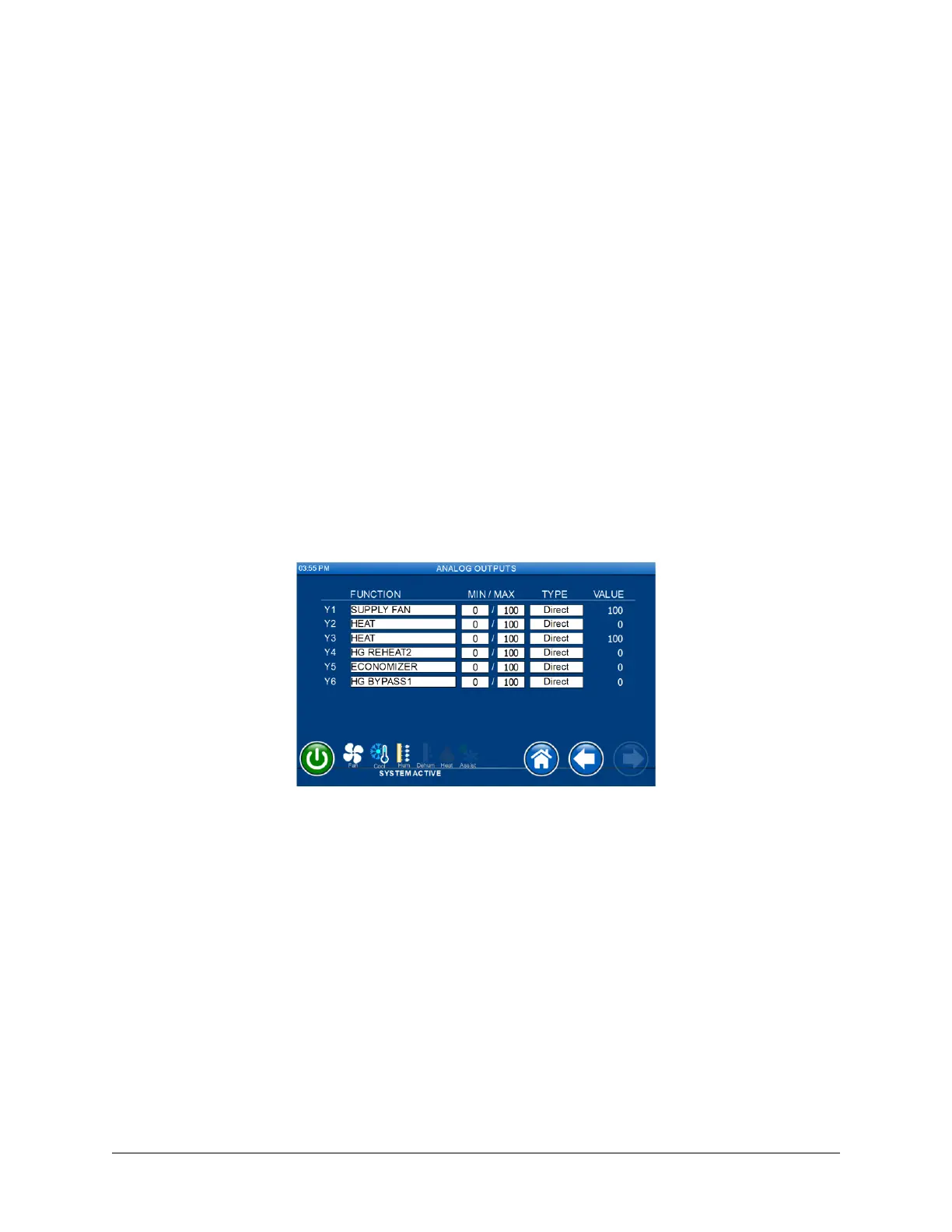

Figure 30. Factory Analog Outputs
