Display Setup
The following settings are accessible via the touch screen interface. Default settings are shown
below:
Backlight timeout 900s
Brightness 255
Alarm buzzer OFF (Only available on 13” screen)
Display-Control Sync 1

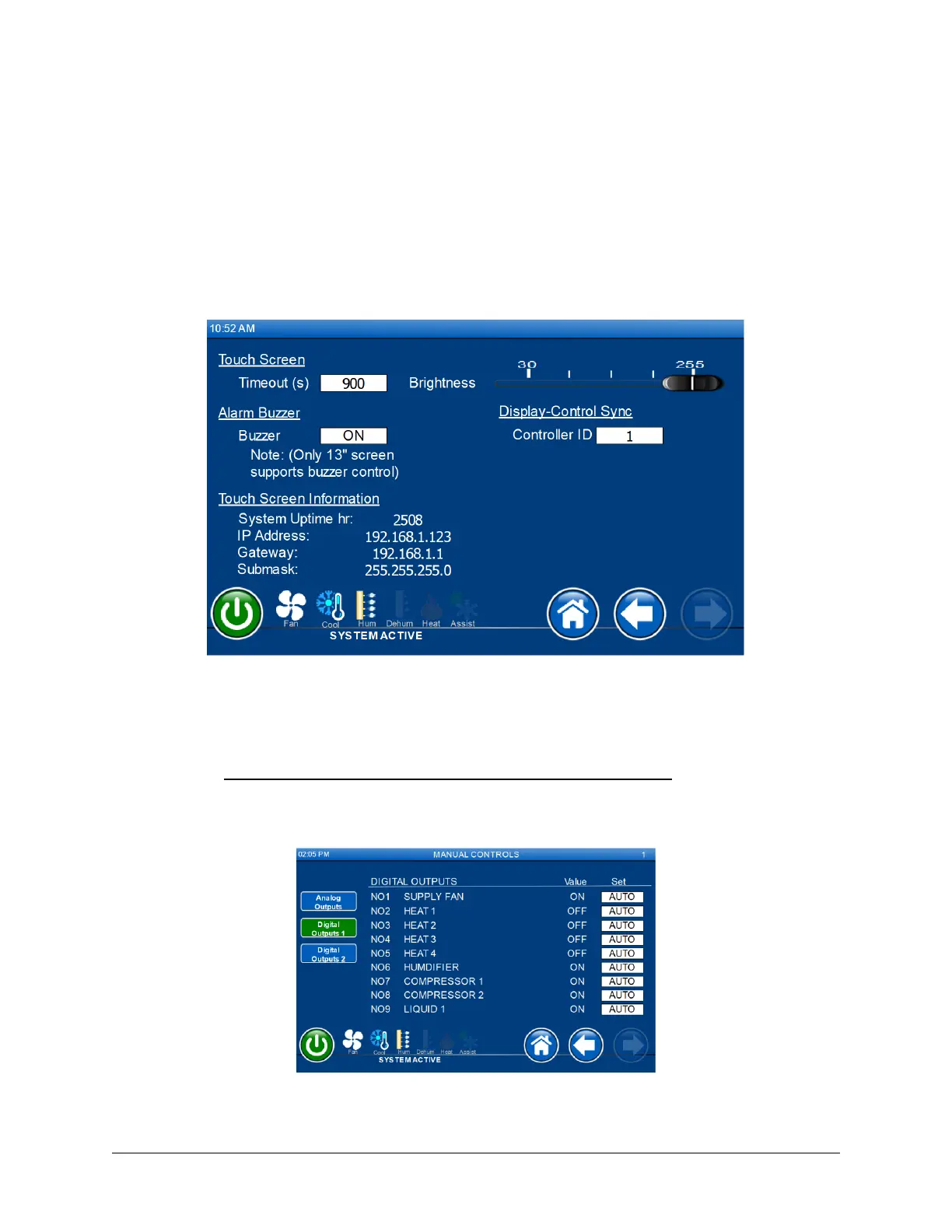

Figure 18. Display setup
Manual Controls
Analog and digital outputs can be overridden at any given time. Each outputs can be as follows
(changes are reflected under value column):
Outputs Channel Option
Analog outputs: AO[1:6] Auto, ON, OFF
Digital outputs: DO[1:18] Auto, ON, OFF
Figure 19. Manual controls
