4.1 About SDM-8400 Unit
Item Details
Unit chassis “Unit Chassis” on page 4-3
1 Ethernet port (requires customer-supplied LAN
cable)
“Ethernet Port” on page 4-5
4 or 8 serial ports (require custom serial cables) “Serial Port” on page 6-2
1 console port, with console cable “Console Port” on page 4-7
1 power supply, with removable power cable (UAC) “Power Supply” on page 4-9
1 rackmount kit “Rackmount Kit” on page 4-11
Table 4-1: Chapter references per Unit Item

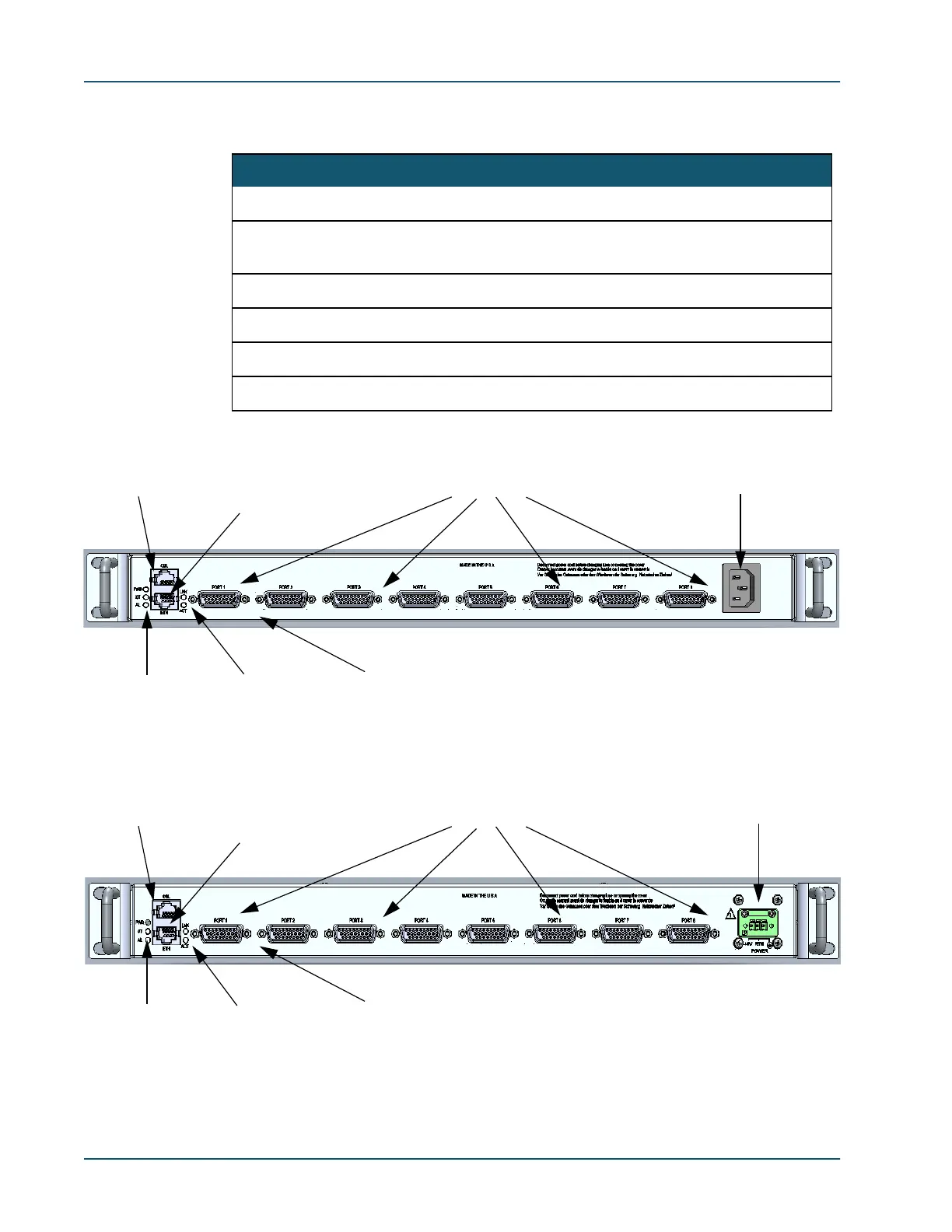

Figure 4-1: Rear View of the SDM-8400 UAC (8-port version)
AC connector
LAN status
LEDs
Console port
Serial ports (8)
Ethernet
LAN port
System status
LEDs
Product Serial Number
Figure 4-2: Rear View of the SDM-8400 DC version (8-port version)
DC connector
LAN status
LEDs
Console port
Serial ports (8)
Ethernet
LAN port
System status
LEDs
Product Serial Number
