UT-4500 Series C- and Ku-Band Up Converters MN/UT4500.IOM
Appendix A Revision 3
A–5

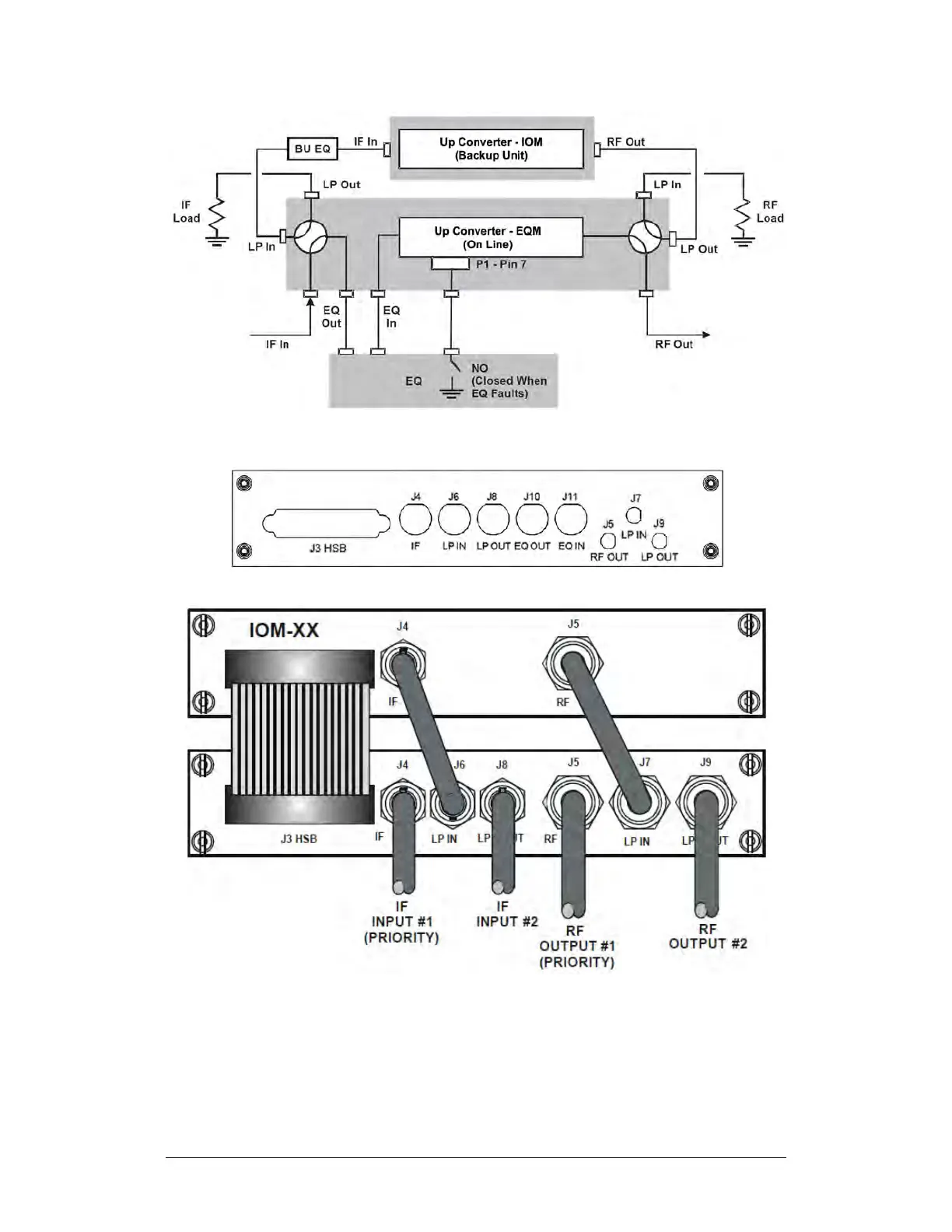

Figure A-3. 1:1 Redundant Configuration Diagram – Single Source RF Input
(with IOM and EQM)
Figure A-4. EQM Panel – Connector Locations
Figure A-5. 1:1 Redundant Configuration – Dual Source IF Input
