UT-4500 Series C- and Ku-Band Up Converters MN/UT4500.IOM
Appendix A Revision 3
A–11

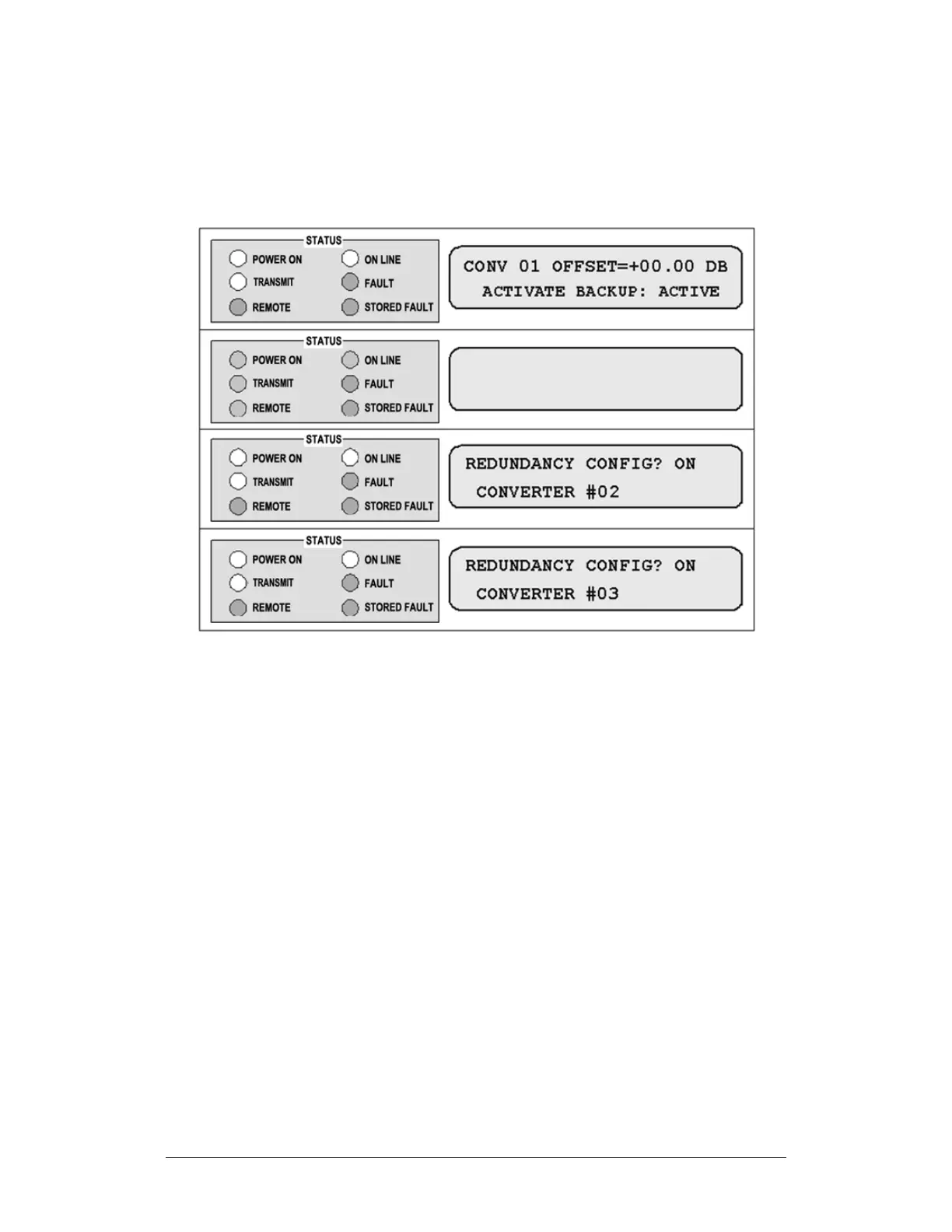

Figure A-11 shows the front panel displays after power has been turned off on
Converter #01. Note the ON LINE LED is lit on the BU. This indicates that the BU
is now providing the frequency translation in place of the faulted unit. Converter
#01 will not come back online until power is restored.
Figure A-11. Front Panel Example – Up Converter #01 Backup
