3 - 4 l I n st a ll a t i on
3

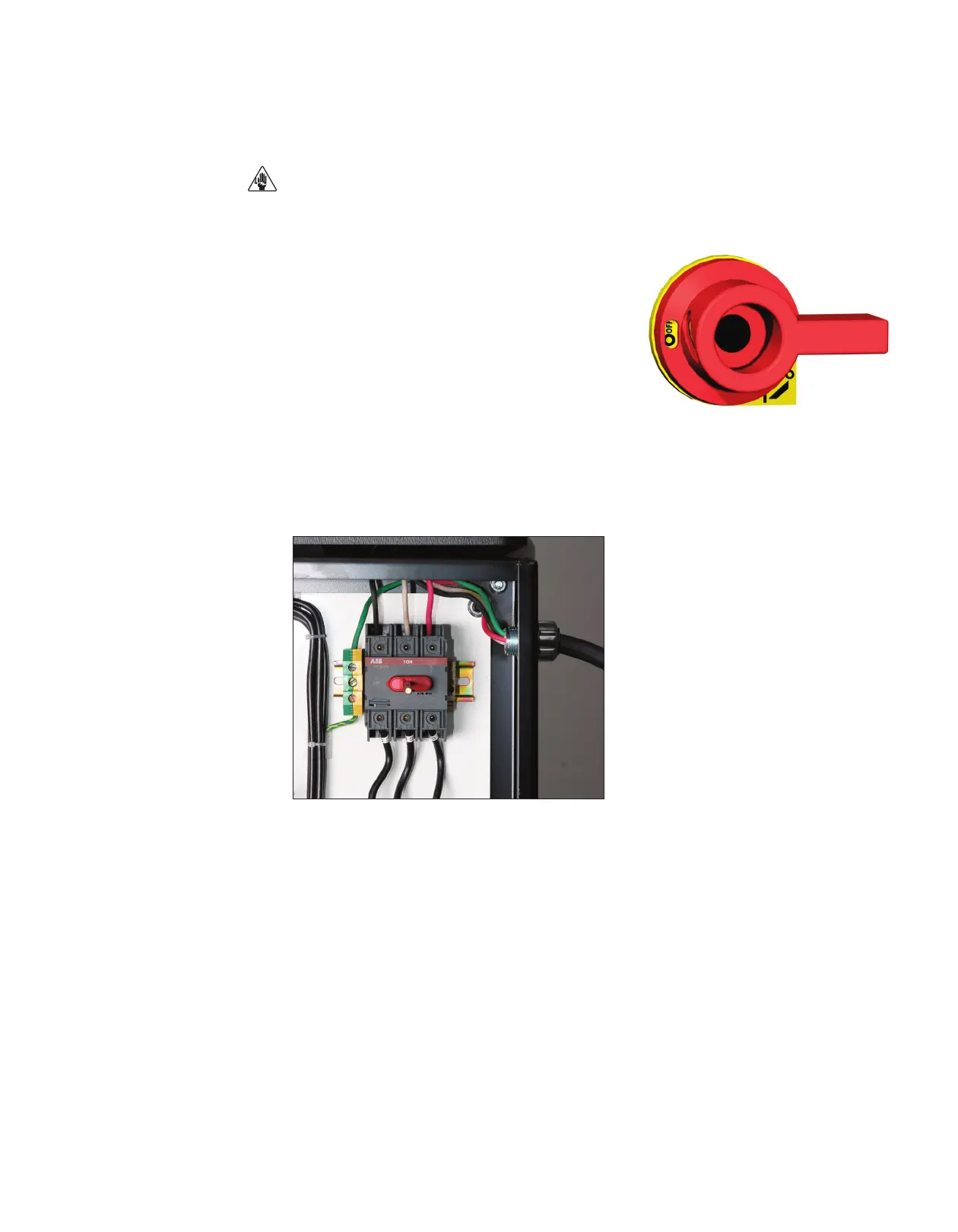

Connect the power wires
to the three terminals at the top of the power disconnect.
4 Connect the ground wire to the ground lug as shown in the photo.
C o n n e c t i n g the Ma i n Pow e r
CAUTION: Always disconnect and lock out the main power sources before making electrical con-
nections. Electrical connections should be made only by qualified personnel.
1 Open the dryer’s electrical enclosure. Turn the discon-
nect dial on the dryer door to the Off or “O” position.
Lock out the main power (see Page 1-6 for complete
lock out information). Turn the captive screw, and swing
the door open.
2
Insert the main power
wire through the knockout in the
side of the enclosure or the rear of the dryer. ( The
dryer’s electrical wire connection location was a factory
option and may be connected through the front or the
rear of the dryer.) Secure the wire with an appropriate
strain relief.
IMPORTANT: Always refer to the
wiring diagrams that came with
your dryer before making electrical
connections.
To Next Page
