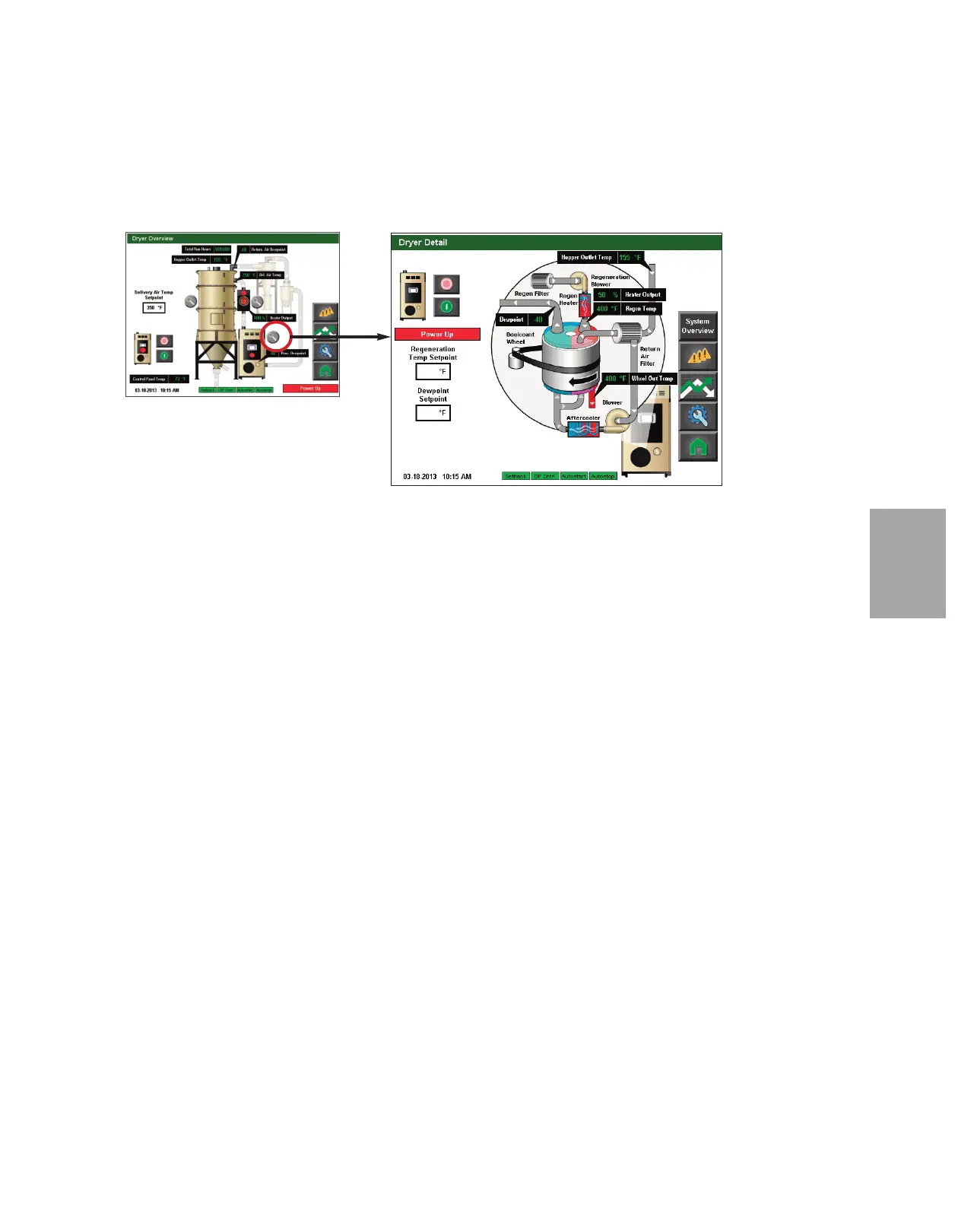

Dryer Detail Screen
To access the Dryer Detail screen:
1 Press the Magnifying Glass (zoom) button associated with the dryer on the Dryer
Overview screen.
This screen allows the user to start or stop the dryer.
The Dryer Detail screen provides the user with the current live information concerning the
processes within the dehumidifying dryer including:
• Hopper Outlet Temperature (if equipped with setback)
• Heater Output
• Regeneration Temperature (Regen. Temp)
• Dewpoint
• Wheel Out Temperature (Temp)
It also tells the user the current status of the aftercooler and precooler (if applicable), as well
as which features (Autostart, Autostop, Setback, Dewpoint Control) are enabled.
If the user is logged-in at the proper security level, setpoint changes can be made to:
• Regeneration Temperature Setpoint
• Dewpoint Setpoint
The user can also view the other system parameters, view alarms, view trending, return to
the Dryer Overview screen, or return to the Home screen by pressing the applicable buttons
on the right of the screen.
NOTE: Live data is displayed as
colored text inside a solid black
box. Set points boxes are white
with heavy black borders. Set
points can be changed, if the user
has logged in at the proper secu-
rity level, by pressing the set
point boxes. This will launch a
pop-up keypad window that can
be used to change the set point.
See Operation section entitled,
How to Navigate Control Screens.
After the new set point value has
been entered, press the "Enter"
key to lock in the new set point.
✐
