T h e D C- T C o nt r ol Pa n el
Home button
Go to the Home screen.
Displayed data
D
isplays the current
live data for the piece
o
f equipment. If this
data displays as all
dashes or blanks,
t
here is a communi-
cation error.
Screen name
Indicates what screen
you are currently
l
ooking at.
Setup button
Go to the Setup screen.
System status
This area displays mes-
sages to let you know the
current status of the
dryer.
Hopper Selection button
Go to the Hopper Selection
s
creen.
Trending buttons
Go to the Trend Selection
screen.
Magnifying glass /
“Zoom button”
Use these buttons to
zoom to more informa-
tion about the equip-
ment. In this example,
this Dryer Zoom button
takes you to the
ResinWorks Dryer
screen.

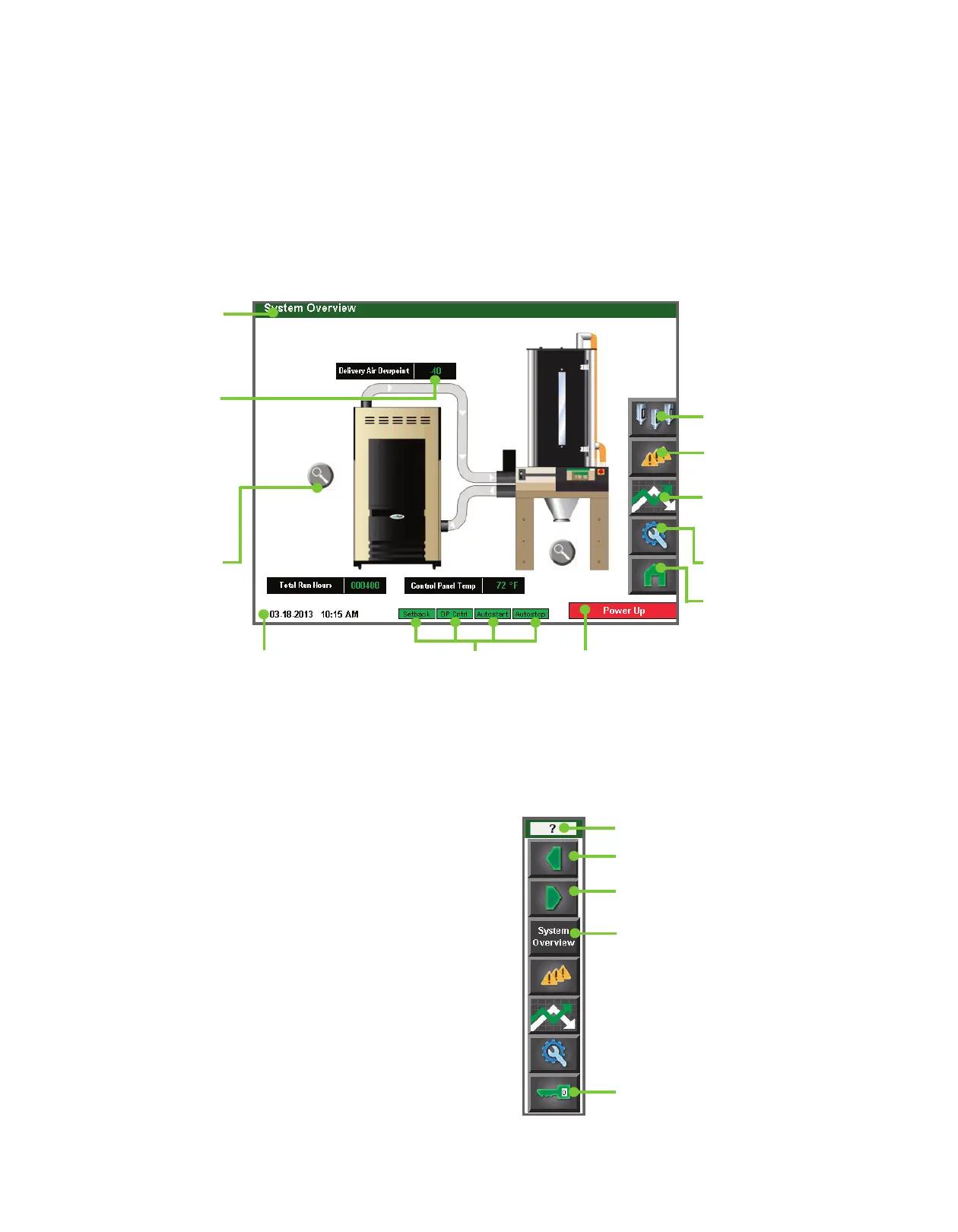

Below is a screen from the DC-T while in operation. This screen is shown as a sample of
functionality of a typical DC-T screen. See the functional descriptions below. The follow-
ing pages are helpful in understanding how to use the DC-T Control.
Alarms button
Go to the Alarms area.
NOTE: Depending upon which options were
ordered or are enabled, different icons may
appear as available or unavailable.
✐
System Overview button
Go to the System Overview screen.
4 - 6 l O pe r a t io n
Help Overview button
Help for the current screen.
Enabled Options
This area displays icons to let you
see what options are currently
being used. For example, this dryer
is using the Temperature Setback
feature, the Dewpoint Control, and
Autostart and Autostop.
Date and Time
This area displays the
current date and time.
Login/Logout button
This button is used to login or log
out as a user.
Previous button
Returns to the previous list of items.
Next button
Moves to the next list of items.
