Connector Locations
For NGX012
Input Power (P8)
Module
Connector (P1)
M.2 E-Key (Wi-Fi/BT)
M.2 M-Key (NVMe)
I/O Header (P4)
Force Recovery/RESET
Jumper (J2)
USB Header (P3)
(P3)
Fan Header (P10)
Power Input
+5V
GBE 1
GBE 2

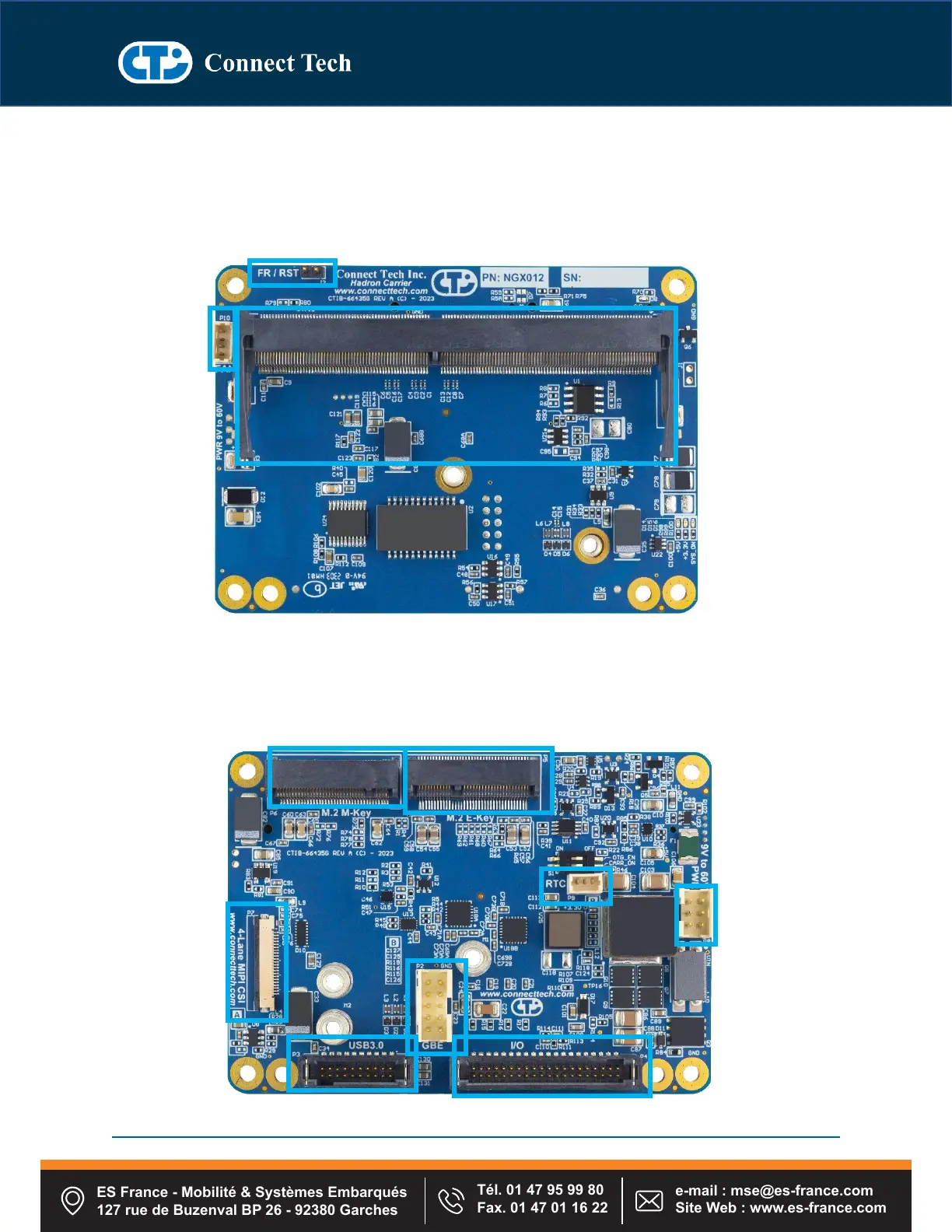

Top View
Bottom View
MIPI CSI
Connector (P7)
RTC Header (P9)
GbE
(P2)
