Connect Tech Hadron Carrier - Power Header

Hadron/ Hadron DM Carrier
Users Guide
www.connecttech.com
Document: CTIM-00088
Revision: 0.08
Page 20 of 41
Date: 2024-05-15

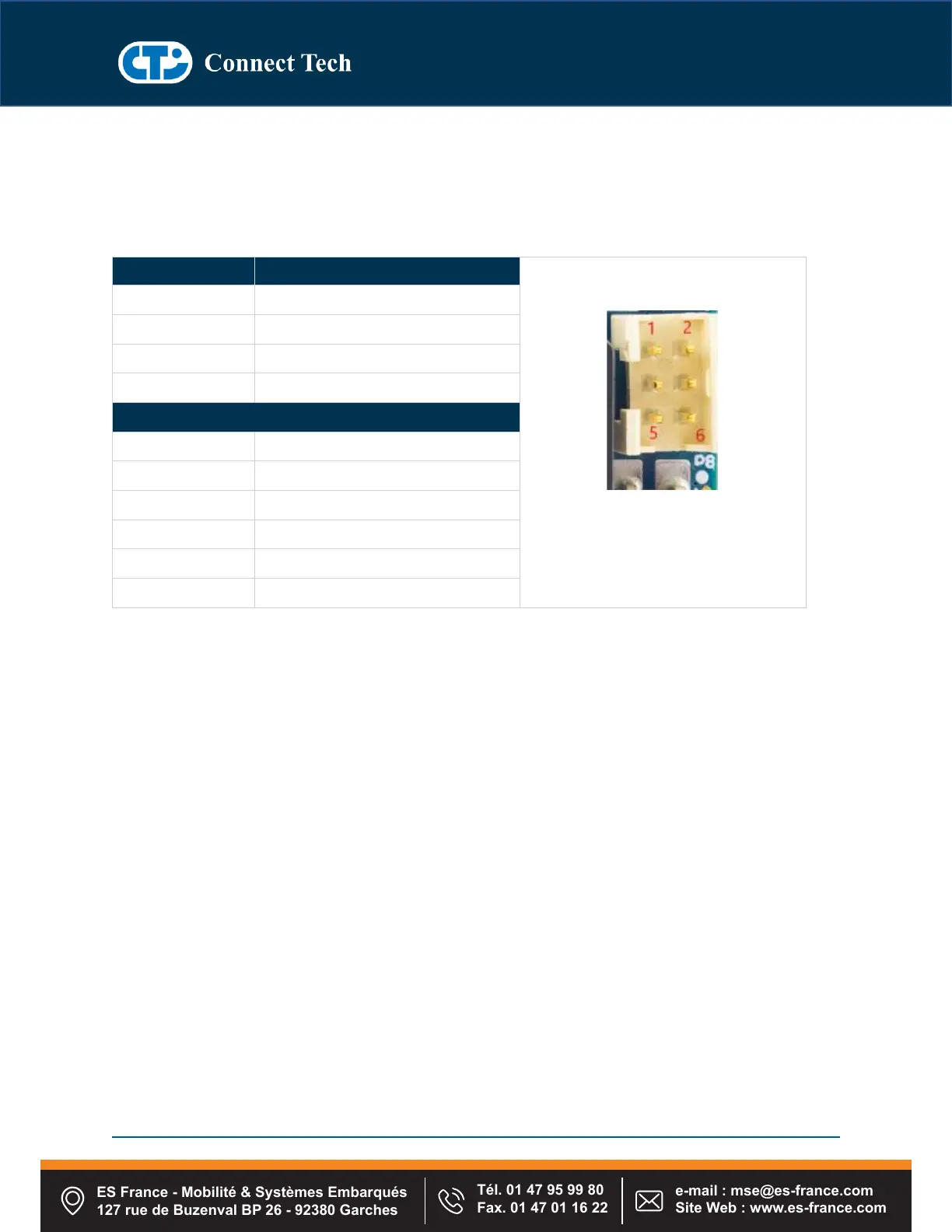

Power Header
Description
The Hadron/Hadron DM Carrier implements a Power Connector using 98414-G06-06LF from Amphenol
FCI.
Function
Description
Location
P8
Type
Amphenol FCI MiniTek Series Connector
Carrier Connector
98414-G06-06LF
Mating CTI Cable
CBG112
Pinout
Pin 1
GND
Pin 2
GND
Pin 3
GND
Pin 4
+VIN
Pin 5
+VIN
Pin 6
+VIN
