Connect Tech Hadron Carrier - 10;100;1000 Ethernet Connectors

Hadron/ Hadron DM Carrier
Users Guide
www.connecttech.com
Document: CTIM-00088
Revision: 0.08
Page 14 of 41
Date: 2024-05-15

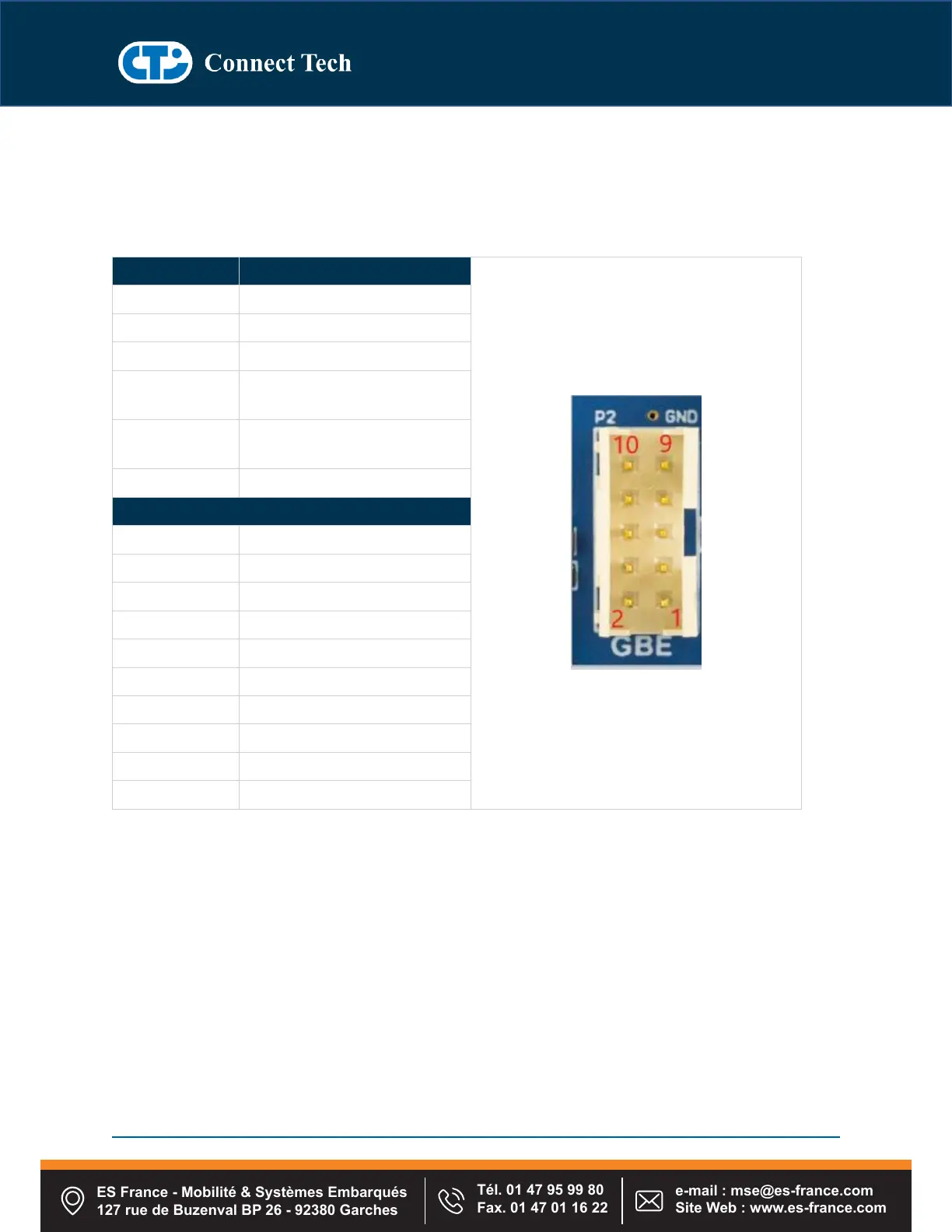

10/100/1000 Ethernet Connectors
Description
The NVIDIA® Jetson Orin™ NX/ NVIDIA® Jetson Xavier™ NX module will allow internet communication
via GbE connector as below.
Function
Description
Location
P2
Ethernet Usage
Jetson Onboard Ethernet
Type
10 pin RA connector
Carrier
Connector
Part Number: 98414-G06-10LF
Manufacturer: Amphenol ICC
Mating
Connector
90311-010LF
Mating CTI Cable
CBG117
Pinout
Pin 1
MDI0_N
Pin 2
MDI0_P
Pin 3
MDI1_N
Pin 4
MDI1_P
Pin 5
GBE_GND (Shield)
Pin 6
GBE_GND (Shield)
Pin 7
MDI2_N
Pin 8
MDI2_P
Pin 9
MDI3_N
Pin 10
MDI3_P
