Connect Tech Hadron Carrier - Detailed Feature Description; Jetson Orin; Xavier NX Module Connector

Hadron/ Hadron DM Carrier
Users Guide
www.connecttech.com
Document: CTIM-00088
Revision: 0.08
Page 13 of 41
Date: 2024-05-15
DETAILED FEATURE DESCRIPTION

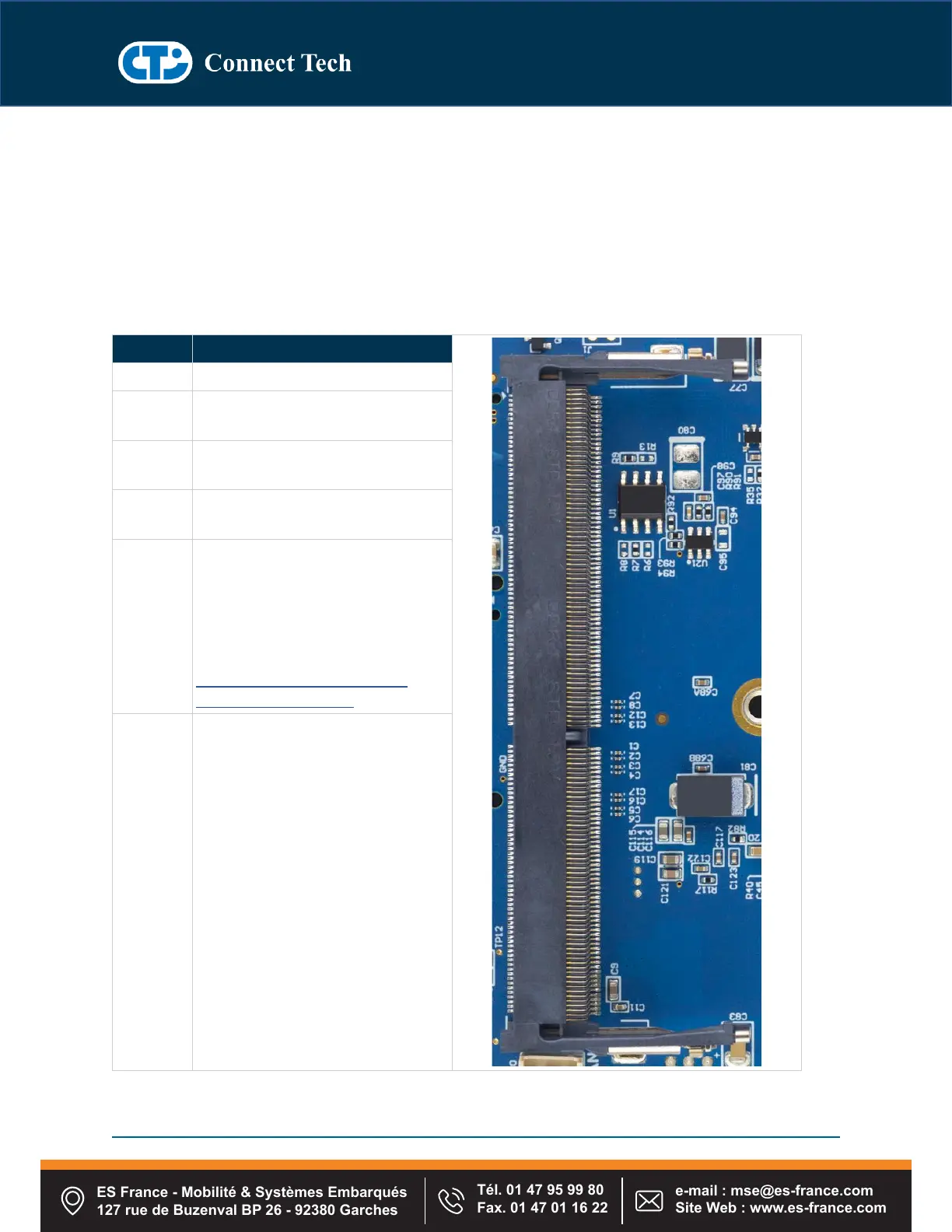

Jetson Orin™ / Xavier™ NX Module Connector
Description
The NVIDIA® Jetson Orin™ / NVIDIA® Jetson Xavier™ NX processor and chipset are implemented on the
Jetson Orin™ NX / Jetson Xavier™ NX Module. This connects to the Hadron/Hadron DM Carrier via a TE
Connectivity DDR4 SODIMM 260 Pin connector.
Function
Description
Location
P1
Type
TE Connectivity DDR4 SODIMM 260
Pin
Carrier
Connector
Part Number: 2309413-1
Manufacturer: TE Connectivity
Mating
Connector
Jetson Orin™ NX /Jetson Xavier™ NX
Module
Pinout
Refer to NVIDIA®’s Jetson Orin ™ NX
or
Jetson Xavier™ NX
System-On-Module datasheet for
pinout details
https://developer.nvidia.com/
embedded/downloads
Board-to-
Module
Standoff
Height
M2.5 x 6.57mm standoffs required
between
NVIDIA® Jetson Orin™ NX
or
NVIDIA® Jetson Xavier™ NX
Module and Hadron/Hadron DM
Carrier
