Connect Tech Hadron Carrier - 3-Pin RTC Battery Connector; +5 V Fan Connector

Hadron/ Hadron DM Carrier
Users Guide
www.connecttech.com
Document: CTIM-00088
Revision: 0.08
Page 21 of 41
Date: 2024-05-15

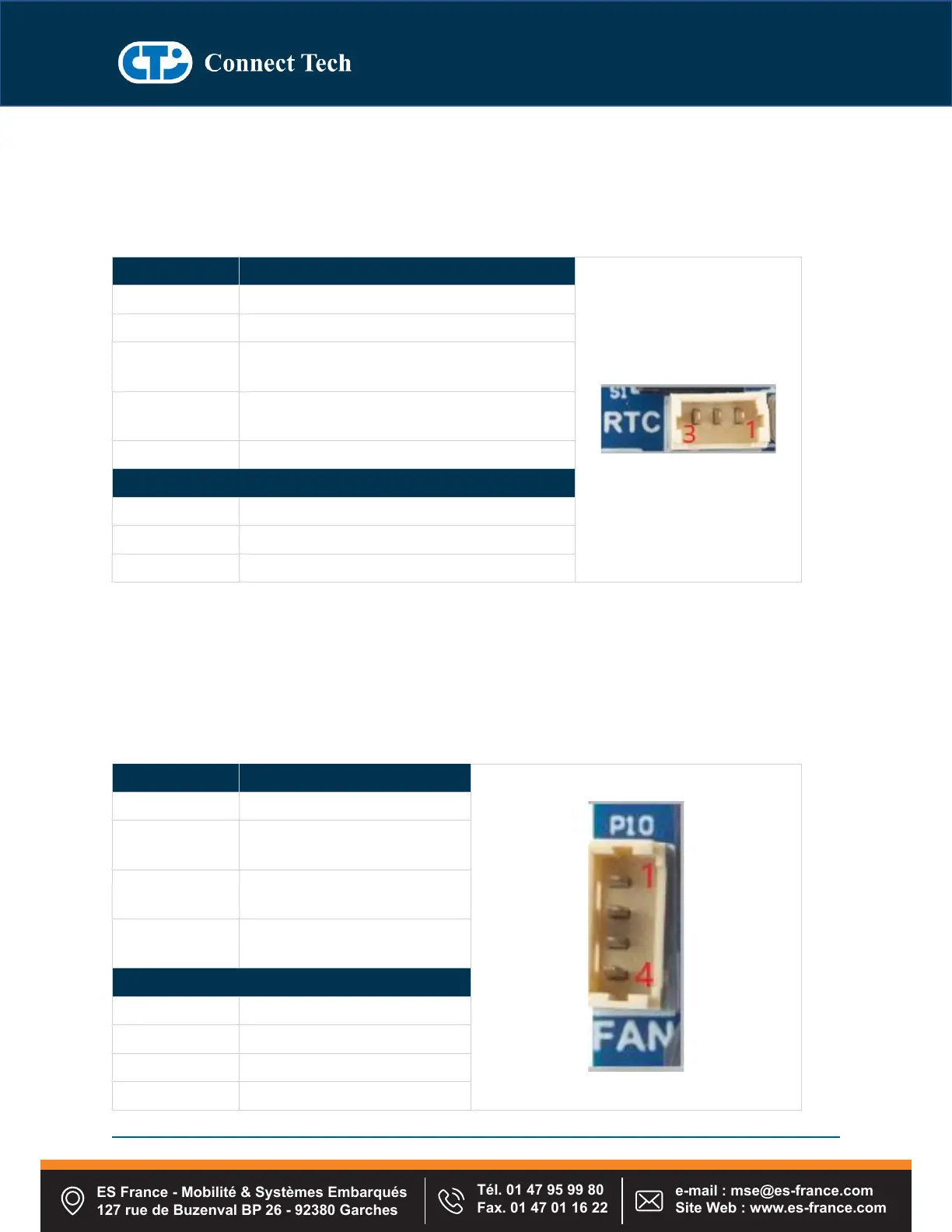

3-Pin RTC Battery Connector
Description
The Hadron/Hadron DM Carrier implements a 3-Position Molex PicoBlade connector for connecting the
RTC battery.
Function
Description
Location
P9
Type
Molex 3 Position 1.25mm PicoBlade Connector
Carrier
Connector
Part Number: 53047-0310
Manufacturer: Molex
Mating
Connector
Molex 51021-0300 PicoBlade Connector
Mating CTI Cable
CBG136
Pinout
Pin 1
RTC Battery Positive (+ve)
Pin 2
Not Connect
Pin 3
RTC Battery Negative (-ve)
+5V Fan Connector
Description
The Hadron/Hadron DM Carrier implements a 4-Position Molex PicoBlade connector for active cooling
capability.
Function
Description
Location
P10
Type
Molex 4 Position 1.25mm
PicoBlade Connector
Carrier
Connector
Part Number: 53047-0410
Manufacturer: Molex
Mating
Connector
Molex 51021-0400 PicoBlade
Connector
Pinout
Pin 1
GND
Pin 2
+5V
Pin 3
FAN_TACH
Pin 4
FAN_PWM
