Connect Tech Hadron Carrier - USB Host; Device Mode and Power Switch; LED Indicators

Hadron/ Hadron DM Carrier
Users Guide
www.connecttech.com
Document: CTIM-00088
Revision: 0.08
Page 23 of 41
Date: 2024-05-15

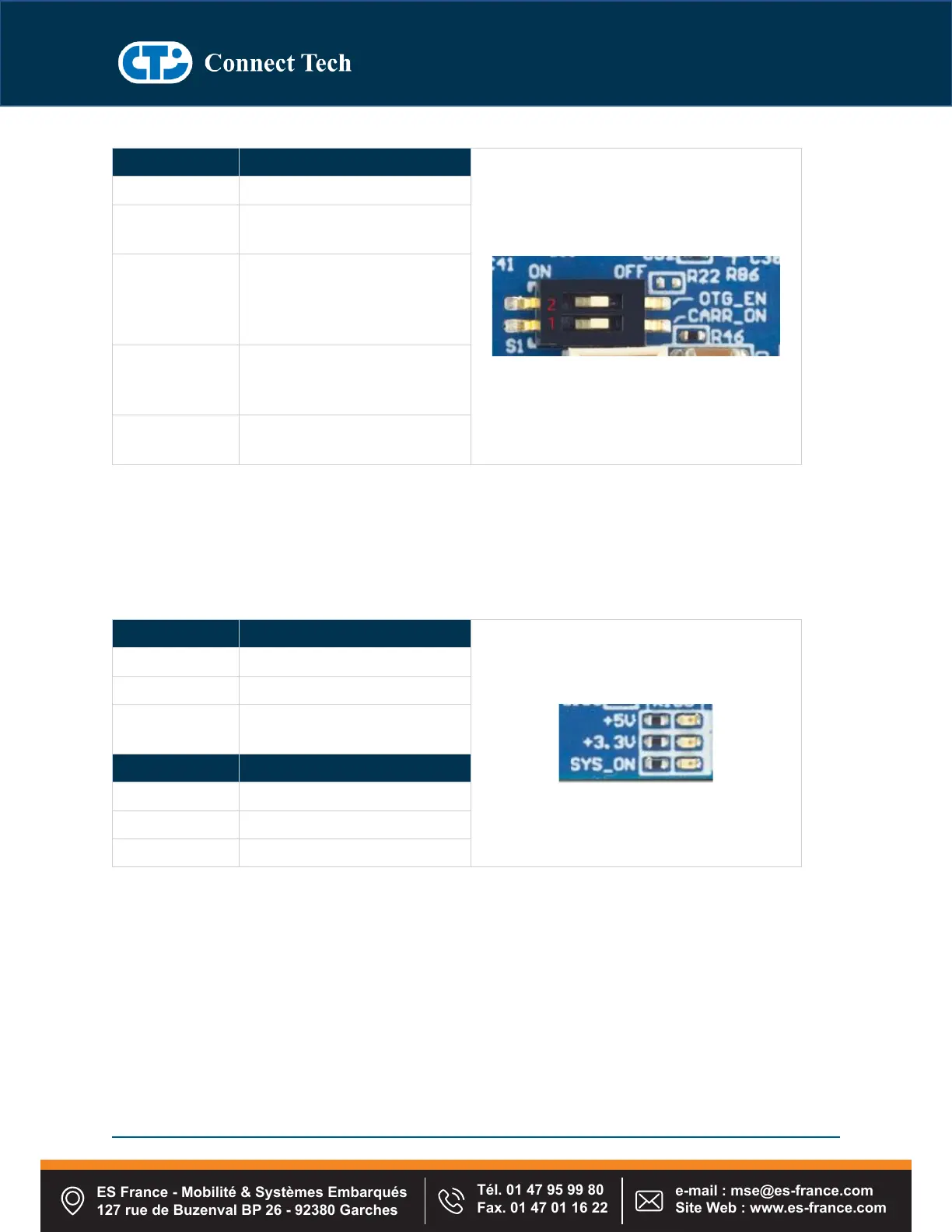

USB Host / Device Mode and Power Switch
Function
Description
Location
SW1
Type
TE Connectivity 1571983-1 DIP
Switch
Carrier
Connector
Part Number: 1571983-1
Manufacturer: TE Connectivity
Product is shipped with both
switches OFF
S1-1
Manufacturing use ONLY. Leave
in OFF position for proper
operation.
S1-2
On: USB Host Mode
Off: USB Device Mode
LED Indicators
Description
The Hadron/ Hadron DM Carrier implements three LED’s (D14, D15, D16) for power status indication as
follows:
Function
Description
Location
D14, D15, D16
Type
Green LED
Carrier
Connector
Part Number: APHHS1005CGCK
Manufacturer: Kingbright
Function
LED
+5V
D14
+3.3V
D15
SYS_ON
D16
Note: When an Orin NX module is not installed, SYS_ON is state is indeterminate.
