Xavier™ NX SW Interface Cross Reference
Signal Name
Module ID
Controller ID
GPIO07
GPIO07
PR.00
GPIO10
GPIO10
PQ.01
GPIO11
GPIO11
PQ/06
GPIO12
GPIO12
PCC/04
GPIO13 (PWM)
C280000.pwm
pwmchip0
GPIO12 (PWM)
c340000.pwm
pwmchip1
Signal Name
SW/Dev ID
DTB ID
I2C0
i2c-1
i2c@c240000
RS232_0
/dev/ttyTHS1
serial@3110000
RS232_1
/dev/ttyTHS0
serial@3100000
SPI0
/dev/spidev0.0
spi@3210000
Orin™ NX SW Interface cross Reference
Signal Name
Module ID
Controller ID
GPIO07
GPIO07
PG.06
GPIO10
GPIO10
PEE.02
GPIO11
GPIO11
PQ.06
GPIO12
GPIO12
PN.01
GPIO13 (PWM)
32c0000.pwm
pwmchip2
GPIO12 (PWM)
3280000.pwm
pwmchip0
Signal Name
SW/Dev ID
DTB ID
I2C0
i2c-1
I2c@c240000
RS232_0
/dev/ttyTHS1
serial@3110000
RS232_1
/dev/ttyTHS0
serial@3100000
SPI0
/dev/spidev0.0
spi@3210000
1. +3.3V and +5V power pins are outputs only, DO NOT feed power to these pins
2. GPIO are 3.3V

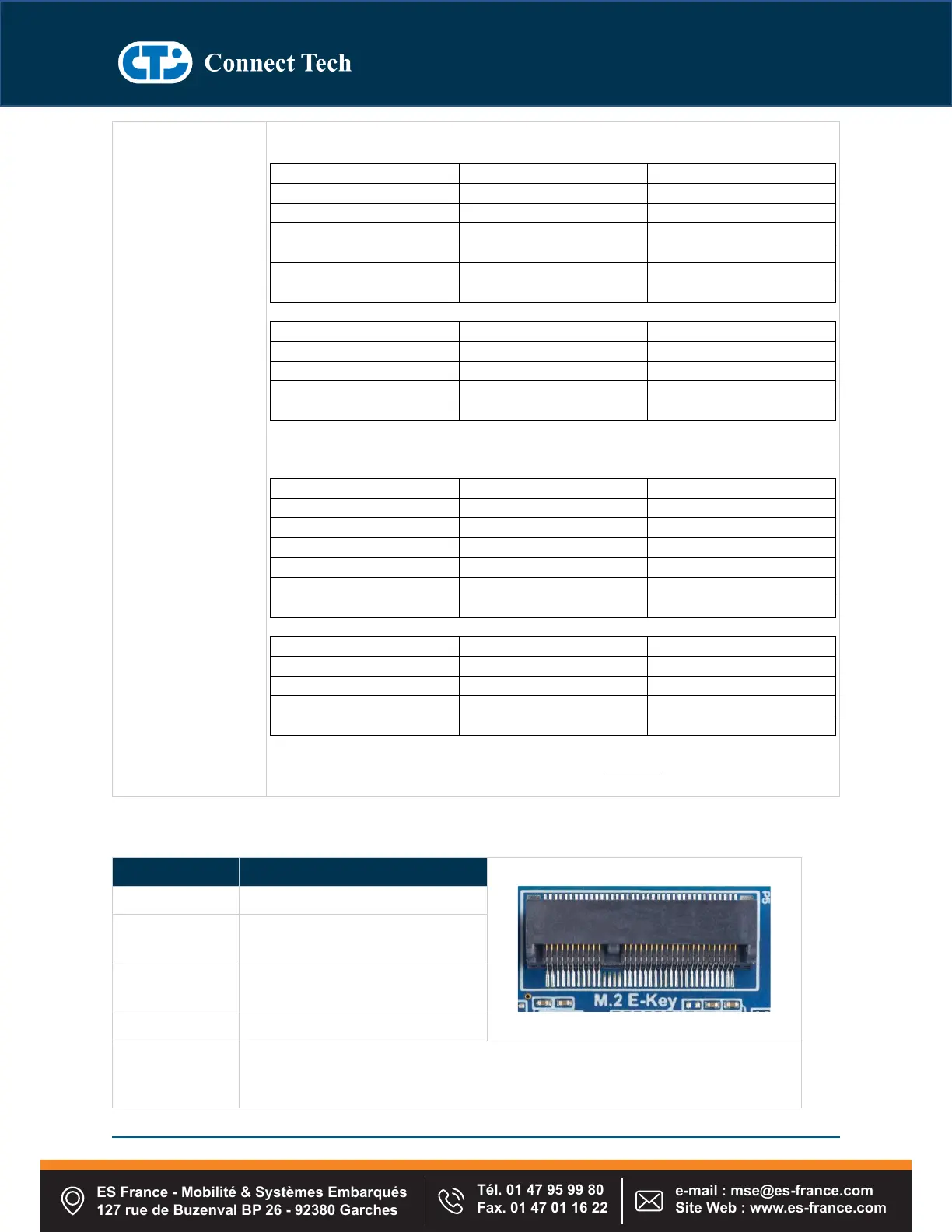

M.2 E-Key – Wi-Fi and Bluetooth Expansion Port
Function
Description
Location
P5
Type
67 Pin M.2 Connector with M2.5
Mounting Standoff
Connector
Part Number: 10128797-004RLF
Manufacturer: Amphenol ICC
Pinout
As per the M.2 E-key specification
Notes
This port contains a x1 PCIe Gen 1 interface and one USB 2.0 interface.
* PCIe Gen# is based on available equipment and their testing with Hadron/Hadron DM
Carrier.
