Connect Tech Hadron Carrier - USB 3.1 Connector

Hadron/ Hadron DM Carrier
Users Guide
www.connecttech.com
Document: CTIM-00088
Revision: 0.08
Page 15 of 41
Date: 2024-05-15

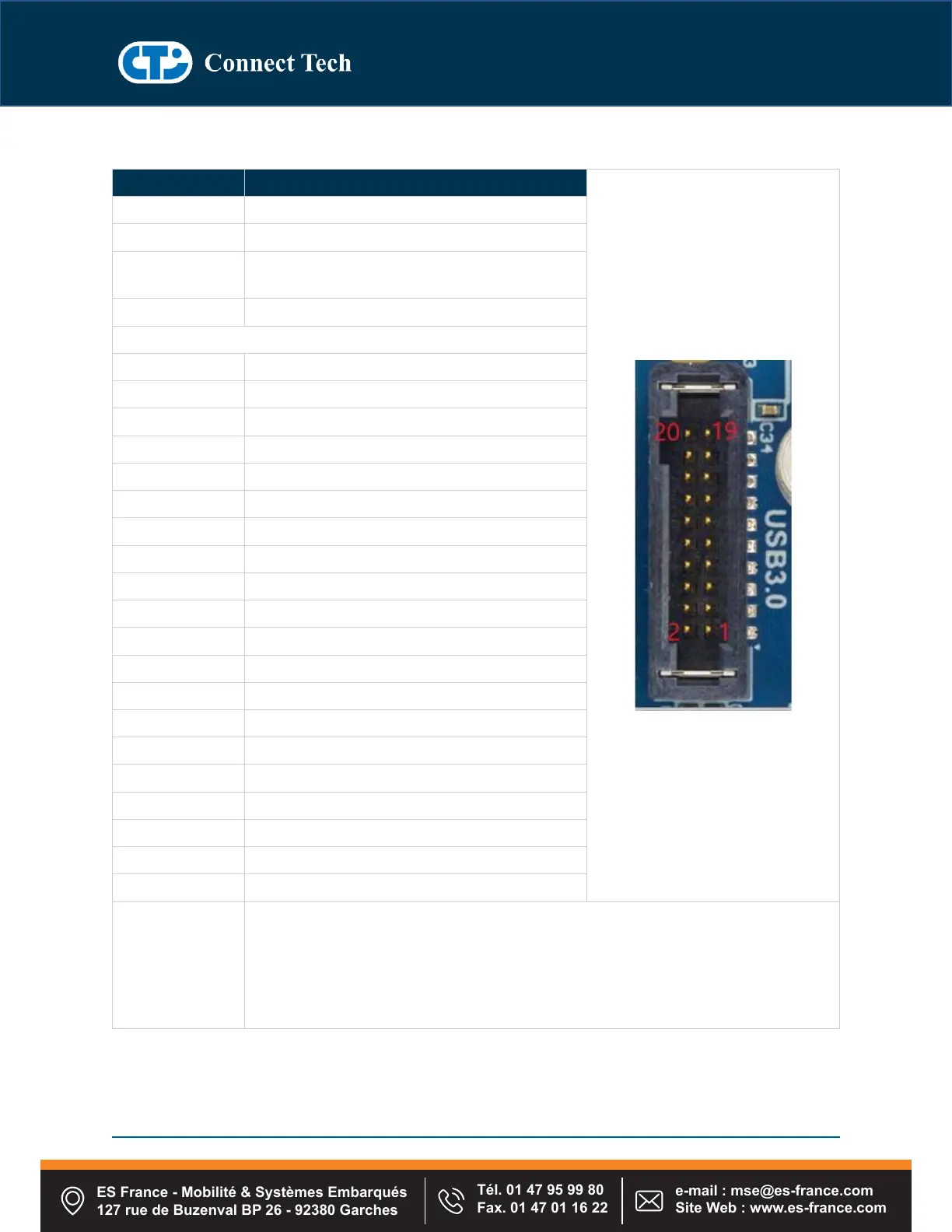

USB 3.1 Connector
Function
Description
Location
P3
Type
Tiger Eye 20 Pin Connector, 0.05mm Pitch
Carrier Connector
Part Number: TFM-110-02-L-D-WT
Manufacturer: Samtec
Mating Cables
CBG615 (USB 2.0 only), CBG686 (USB3.0), XBG023
Pinout
Pin 1
GND
Pin 2
USB1_D_P
Pin 3
USB0_D_P
Pin 4
USB1_D_N
Pin 5
USB0_D_N
Pin 6
GND
Pin 7
GND
Pin 8
USB3_P1_TX_P
Pin 9
USB3_P0_TX_P
Pin 10
USB3_P1_TX_N
Pin 11
USB3_P0_TX_N
Pin 12
GND
Pin 13
GND
Pin 14
USB3_P1_RX_P
Pin 15
USB3_P0_RX_P
Pin 16
USB3_P1_RX_N
Pin 17
USB3_P0_RX_N
Pin 18
USB1 VBUS
Pin 19
USB0 VBUS
Pin 20
GND
Notes
Both ports will only be USB 3.1 capable when using Jetson Orin™ NX. Only Port 0 will be
USB 3.1 capable when using Jetson Xavier™ NX.
Maximum power available on each individual port is as below:
Hadron Rev A, Rev B = 1A per port
Hadron Rev C and onwards = 2A per port
