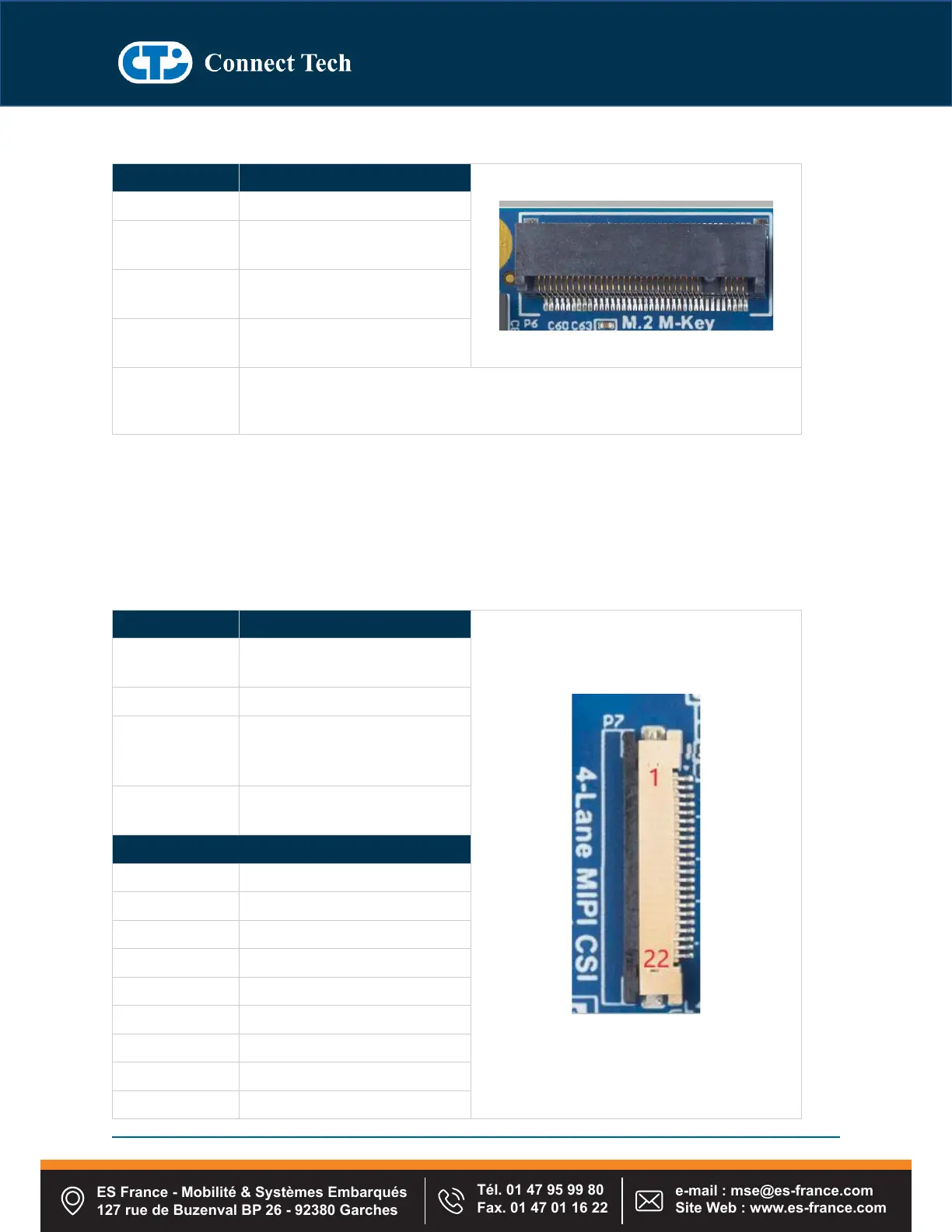

M.2 M-Key – NVMe
Function
Description
Location
P6
Type
67 Pin M.2 Connector with
M2.5 Mounting Standoff
Connector
Part Number: 10131758-001RLF
Manufacturer: Amphenol ICC
Pinout
As per the M.2 M-key
specification
Notes
Interface is x4 PCIe Gen 4. Support for M.2 2230 and 2242 sizes only.
* PCIe Gen# is based on available equipment and their testing with Hadron/Hadron DM
Carrier.
MIPI CSI-2 Connectors
Description
The NVIDIA® Jetson Orin™ NX/ NVIDIA® Jetson Xavier™ NX module will allow 2-lane or 4-Lane MIPI video
input via the Right-Angle FPC connector. 2-lane support for 15-pin cameras if used with a 22-to-15 pin
FFC/FPC cable.
Function
Description
Location
P7 (NGX012, NGX024)
P11(NGX024)
MIPI Lane usage
CSI0
Type
MOLEX FPC Right Angle
Connector
22 Pin
Carrier
Connector
Part Number: 54548-2272
Manufacturer: Molex
Pinout
Pin 1
+3.3V
Pin 2
CAM1_I2C_SDA
Pin 3
CAM1_I2C_SCL
Pin 4
GND
Pin 5
CAM1_MCLK
Pin 6
CAM1_PWDN
Pin 7
GND
Pin 8
CSI1_D1_P
Pin 9
CSI1_D1_N
