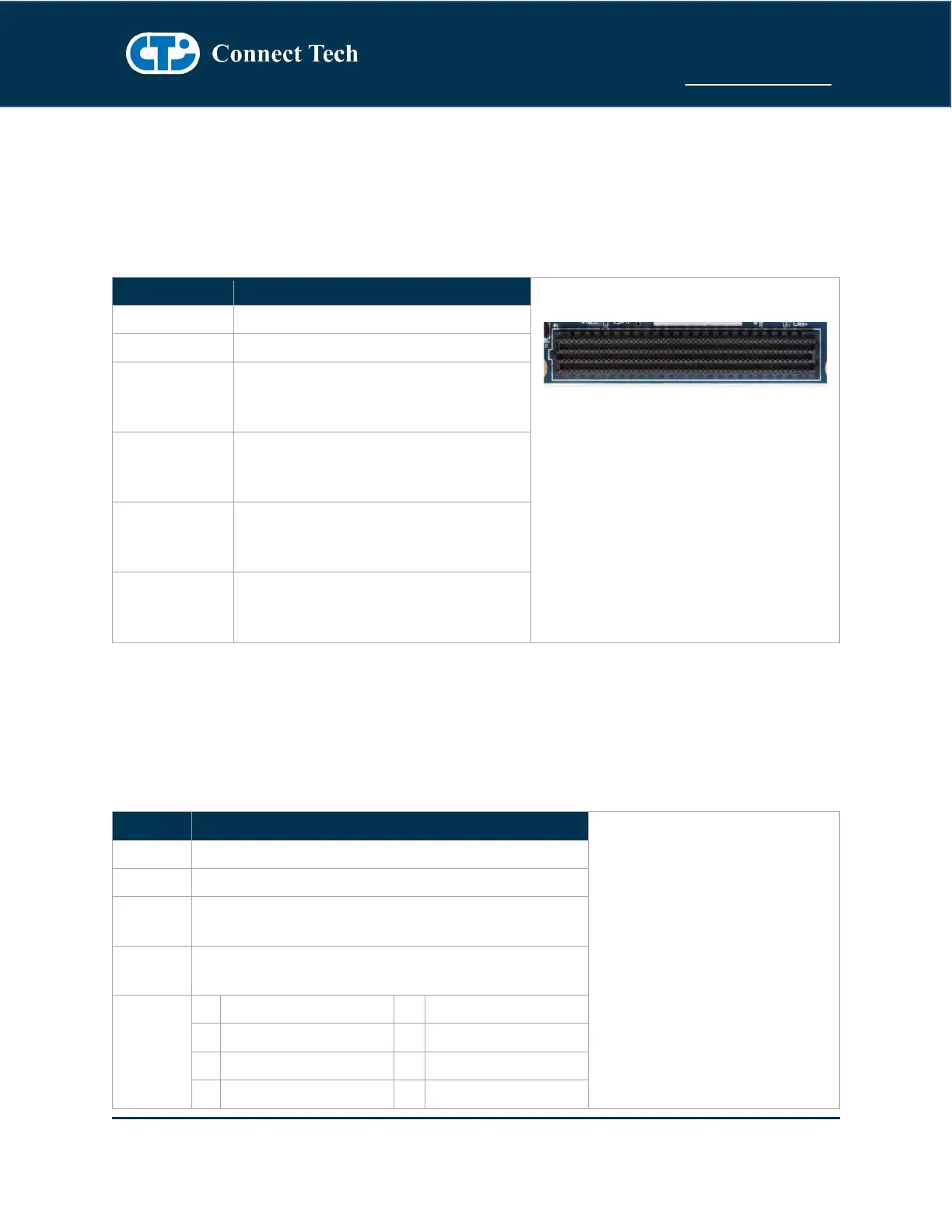

DETAILED FEATURE DESCRIPTION
Jetson™ TX2/TX2i Board-to-Board Connector
With the NVIDIA Jetson™ TX2 or TX2i, the processor and chipset are implemented on the Jetson™
TX2/TX2i Module. This connects to the Orbitty Carrier via a Samtec SEARAY™ Board to Board Connector.
Function
NVIDIA Jetson™ TX2/TX2i Interface
Location
P1
Type
Samtec SEARAY™ Connector
Carrier
Connector
Part Number: SEAM-50-03.0-S-08-2-A-K-
TR (8.0mm stacking height)
Manufacturer: Samtec
Mating
Connector
Part Number: SEAF-50-05-S-08-02-A-K
(Installed on Jetson™ TX2/TX2i)
Manufacturer: Samtec
Pinout
Refer to NVIDIA’s Jetson™ TX2/TX2i
System-on-Module datasheet for pinout
details
Board-to-Board
Standoff Height
8.0mm height M3 Standoffs Required
between NVIDIA Jetson TX2/TX2i Module
and Orbitty (ASG003) Carrier
System Expansion IO Connector
The System Expansion header has numerous interfaces to connect external peripherals and IO. As well
as the ability to provide external connection to the Recovery, Reset and Power Buttons. The System
Expansion IO Connector also has 2 voltage output pins to allow powering of external devices.
Function
System Connector
Location
P4
Type
0.1” / 2.54mm Pitch IDC Header (DIL)
Carrier
Connector
Part Number: TSW-110-07-L-D
Manufacturer: Samtec
Mating
Connector
Any IDC / DIC 0.1” Cable, Socket or Jumper Wire
Assemblies
Pinout
Pin
Description
Pin
Description
1
+3.3V OUTPUT
2
+5V OUTPUT
3
UART0 TX
4
UART0 RX
5
UART1 TX
6
UART1 RX
