SWITCH DETAILS

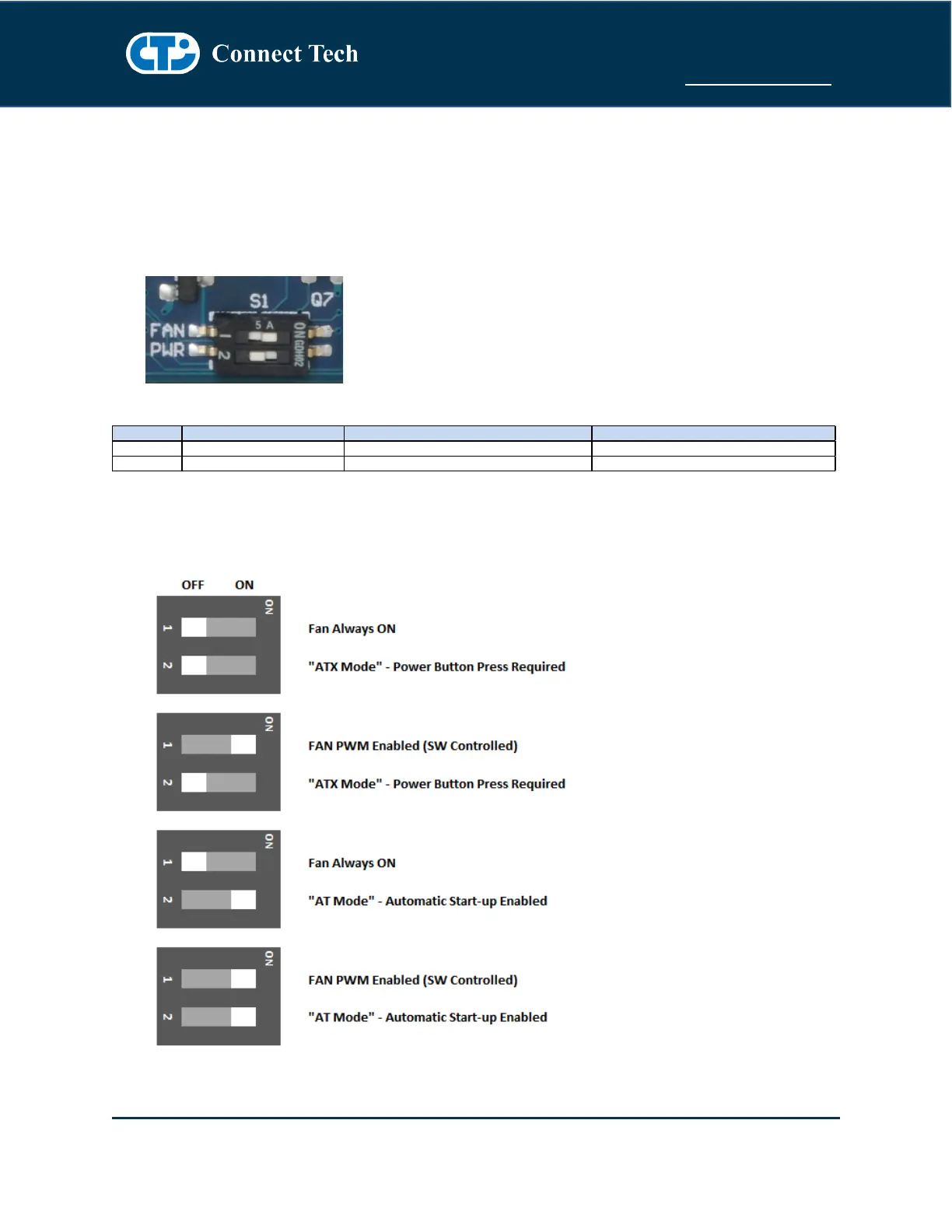

DIP Switch Details (S1)
The Orbitty Carrier has a 2 position DIP switch block which controls the PWM Fan Control and the main
Power-up / Start-up Control.
Position No. Position Description Switch ON Switch OFF
1 PWM Fan Control FAN PWM Enabled (SW Controlled) FAN Always ON
2 Power-Up / Start-up Control "AT Mode" - Automatic Start-up Enabled "ATX Mode" - Power Button Press Required
S1 Usage Examples
