Orbitty Carrier for NVIDIA® Jetson™ TX2/TX2i
Users Guide
www.connecttech.com
Document: CTIM-00471
Revision: 0.14
Page 9 of 31 Date: 2021-10-05

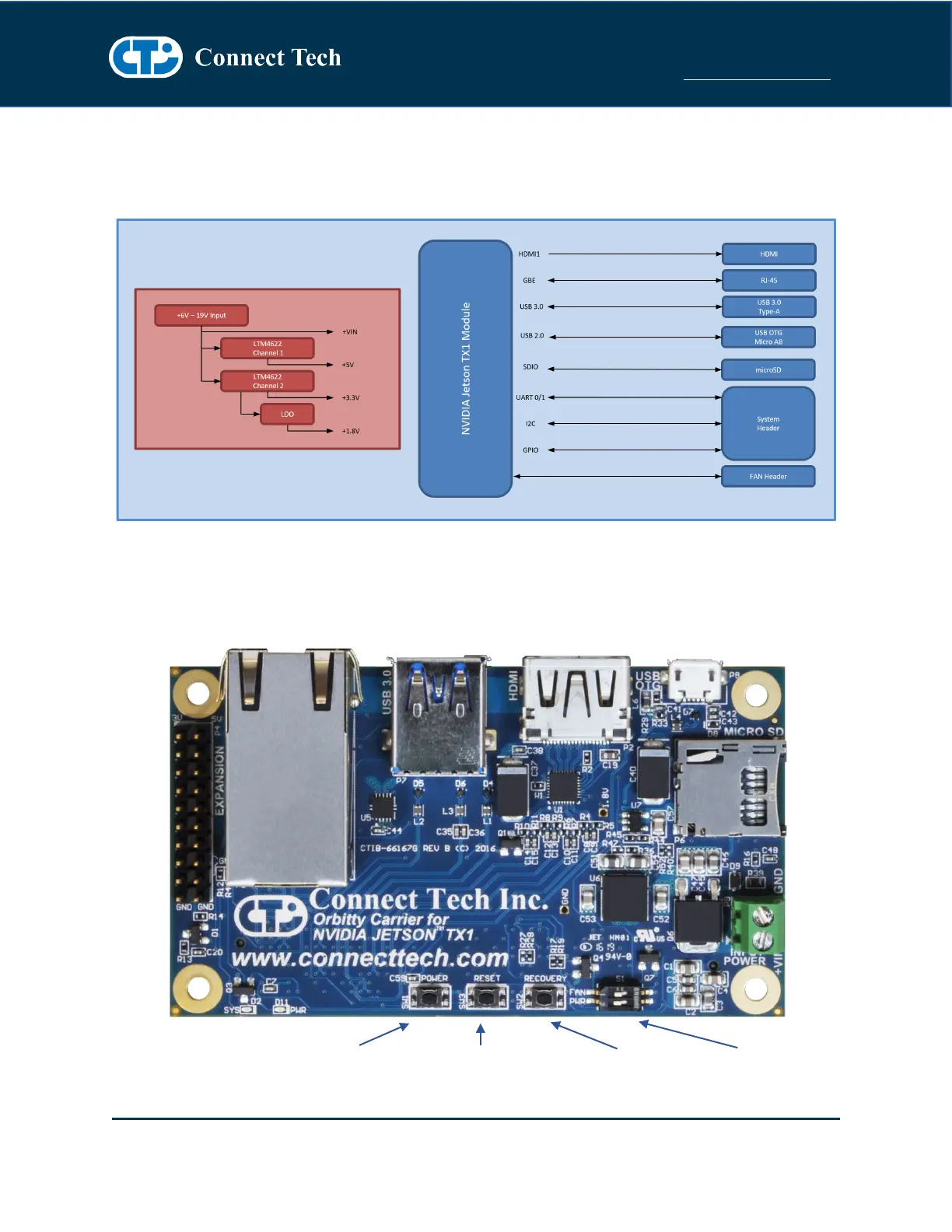

PRODUCT OVERVIEW
Block Diagram
Connector Locations (Top Side)
FAN / SYS PWR
SWITCH (S1)
POWER
BUTTON (SW1)
RESET
BUTTON (SW3)
RECOVERY
BUTTON (SW2)
POWER
INPUT (P9)
MICRO SD (P6)
SYS LED
PWR LED
Gigabit Ethernet (P6)
USB 3.0 (P7)
USB OTG (P8)
HDMI
(P2)
EXPANSION IO
HEADER (P4)
