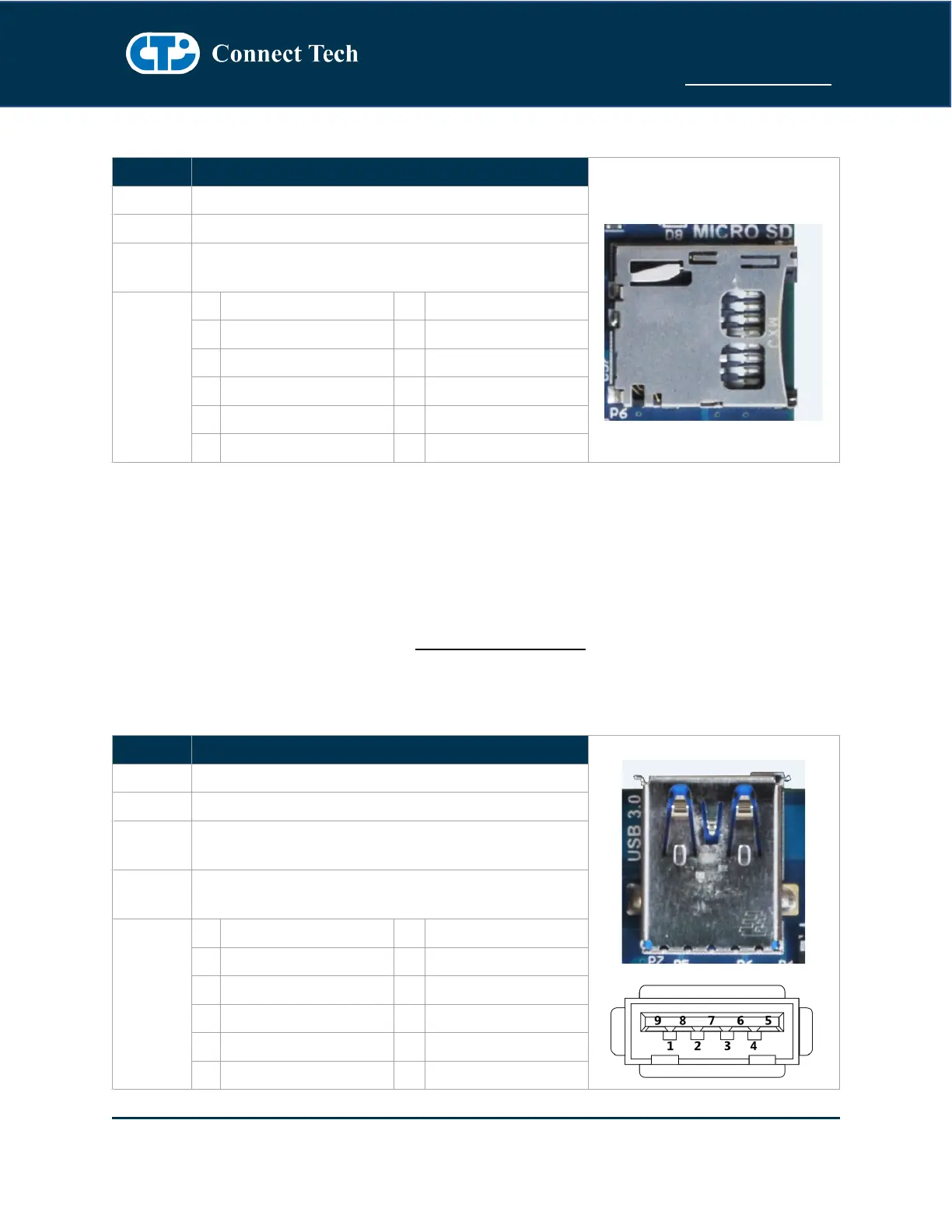

microSD Card Slot
Function
microSD Card Slot
Location
P7
Type
Molex microSD Memory Card Connector
Carrier
Connector
502570-0893
Pinout
Pin
Description
Pin
Description
1
SDIO_DATA2
2
SDIO_DATA3
3
SDIO_CMD
4
SDIO_VCC
5
SDIO_CLK
6
GND
7
SDIO_DATA0
8
SDIO_DATA1
9
GND
10
SDIO_CD
USB 3.0
The Orbitty Carrier provides one external USB 3.0 Port with an integrated USB 2.0 Port. The USB 3.0
signals are sourced directly from the Jetson TX2/TX2i Module. Over current protection, power supply
filtering and ESD protection is provided on-board. The current limit on this port is set to 1A, if more
current capacity is required, please contact sales@connecttech.com
.
NOTE: Please note that USB3.0 support is NOT natively supported by the stock L4T builds. For USB3.0
support users must deploy CTI-L4T BSP
Function
USB 3.0
Location
P7
Type
USB 3.0 Type-A
Carrier
Connector
Part Number: 1932258-1
Manufacturer: TE Connectivity
Mating
Connector
Any USB 3.0 Type-A Cable
Pinout
Pin
Description
Pin
Description
1
VBUS
2
USB 2.0 D-
3
USB 2.0 D+
4
GND
5
SSRX-
6
SSRX+
7
GND
8
SSTX-
9
SSTX+
