Orbitty Carrier for NVIDIA® Jetson™ TX2/TX2i
Users Guide
www.connecttech.com
Document: CTIM-00471
Revision: 0.14
Page 18 of 31 Date: 2021-10-05

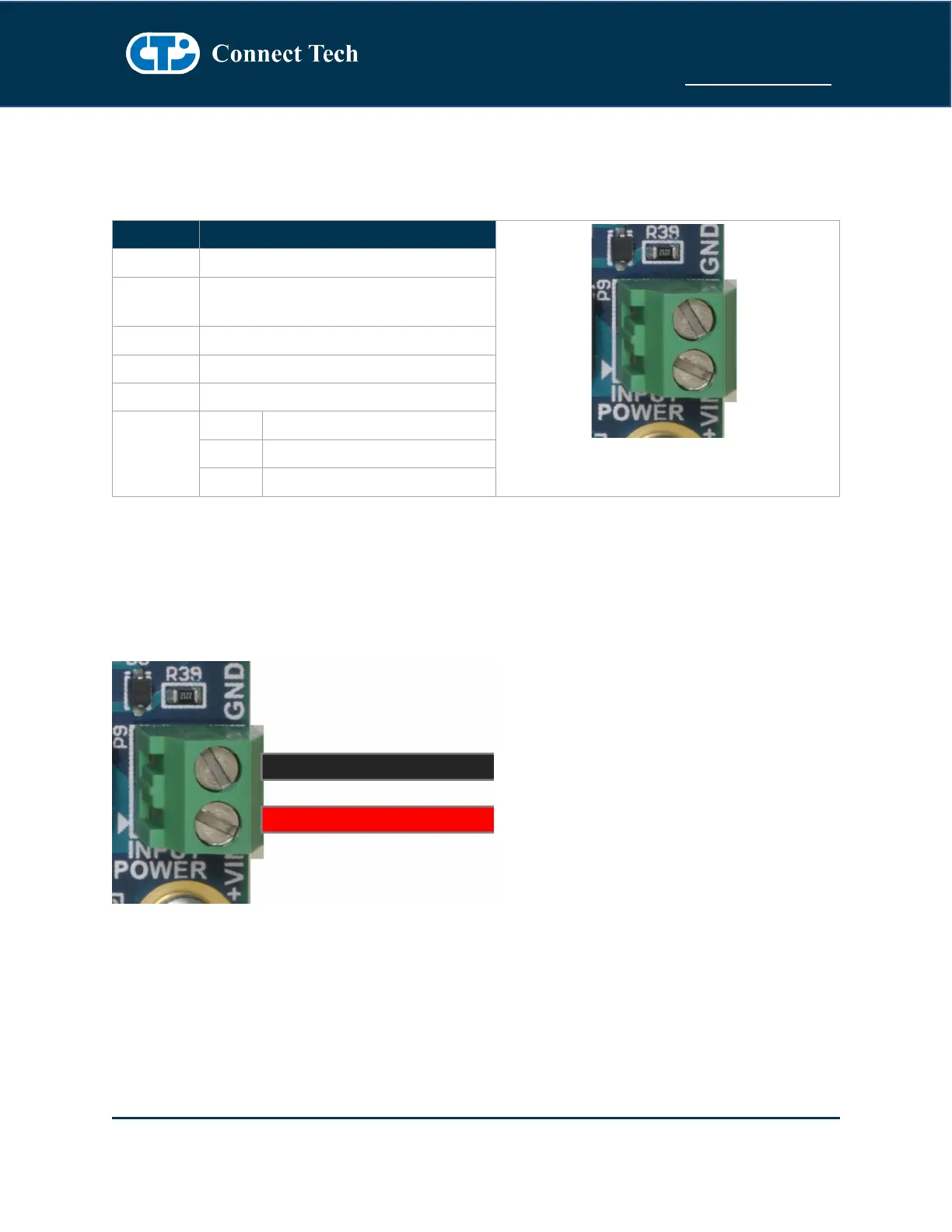

Input Power
The Orbitty Carrier accepts a single power input to power all on-board devices.
A power input range of +9V to +14V is recommended.
Function
Input Power
Location
P9
Type
3.5mm Pitch Wire-to-Board Screw
Terminal
P/N
Texas Instruments 1546551-2
Mating
Stripped and Tinned 8-22 AWG Wire
Cable
MSG064, MSG072
Pinout
Pin
Description
1
+VIN
2
GND
Input Power - Wiring
The positive wire should be connected to the +VIN terminal, and the negative wire should be connected
to the GND terminal.
