Connect Tech NVIDIA Jetson TX2 - HDMI Connector

Orbitty Carrier for NVIDIA® Jetson™ TX2/TX2i
Users Guide
www.connecttech.com
Document: CTIM-00471
Revision: 0.14
Page 14 of 31 Date: 2021-10-05
- Pulse / Short this signal to GND to initiate
a reset sequence
POWER BUTTON
External Power Button Source
- Pulse / Short this signal to GND to initiate
a power sequence
Input 17
GND
Ground / Reference Connection
- This pin is connected to the Orbitty
Carrier’s main digital ground connection
- Use this pin as a reference/return for any
externally connected peripherals to the
Expansion IO Connector
Reference 16,18,19,20

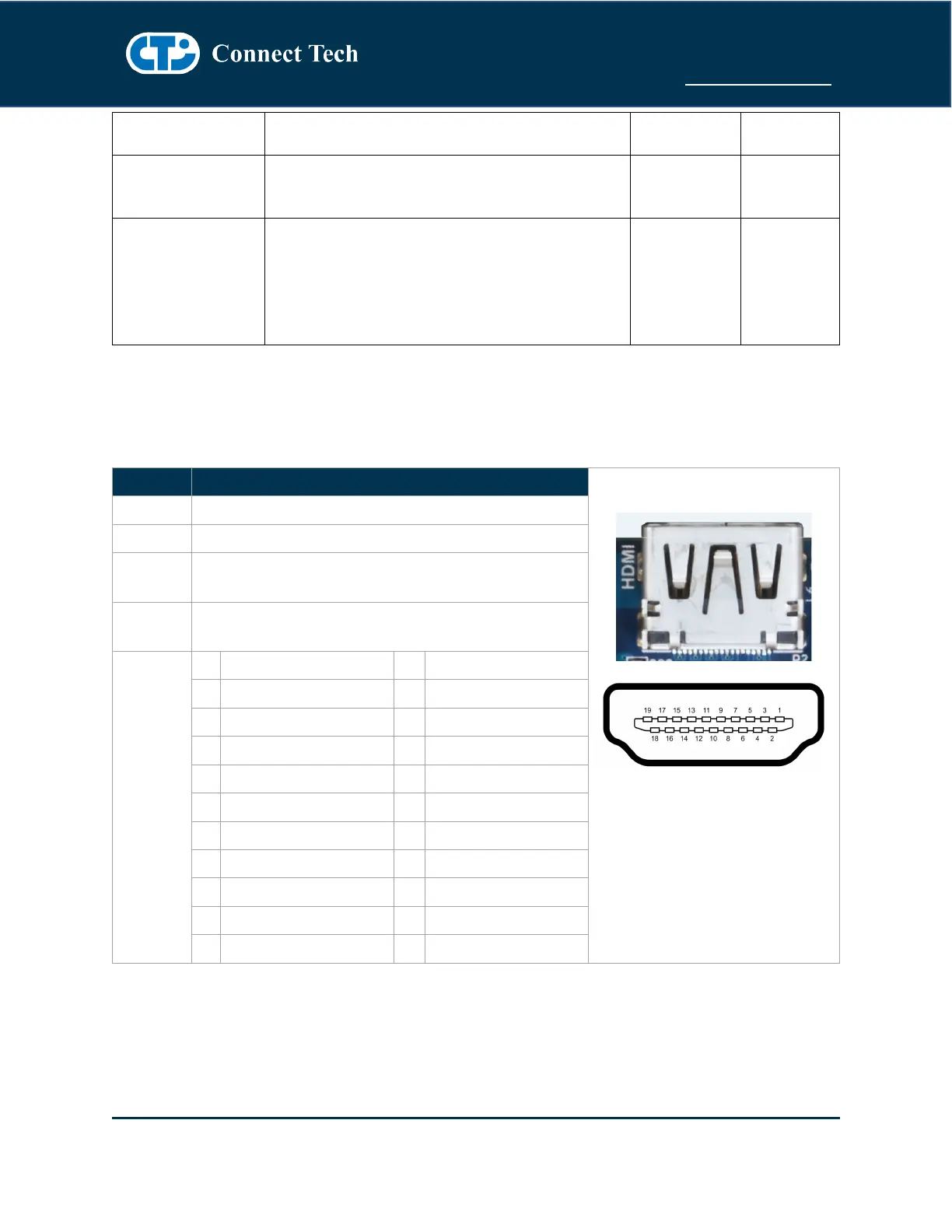

HDMI Connector
Function
HDMI Connector
Location
P2
Type
HDMI Type-A Connector (Female)
Carrier
Connector
Part Number: A35071TR-ND
Manufacturer: TE Connectivity
Mating
Connector
Any HDMI Type-A Cable Assembly
Pinout
Pin
Description
Pin
Description
1
TMDS Data2+
2
TMDS Data2 GND
3
TMDS Data2-
4
TMDS Data1+
5
TMDS Data1 GND
6
TMDS Data1-
7
TMDS Data0+
8
TMDS Data0 GND
9
TMDS Data0-
10
TMDS Clock+
11
TMDS Clock GND
12
TMDS Clock-
13
CEC
14
No Connect
15
DDC clock
16
DDC data
17
DDC GND
18
+5V Power
19
Hot Plug Detect
