8. STANDARD ADJUSTMENTS

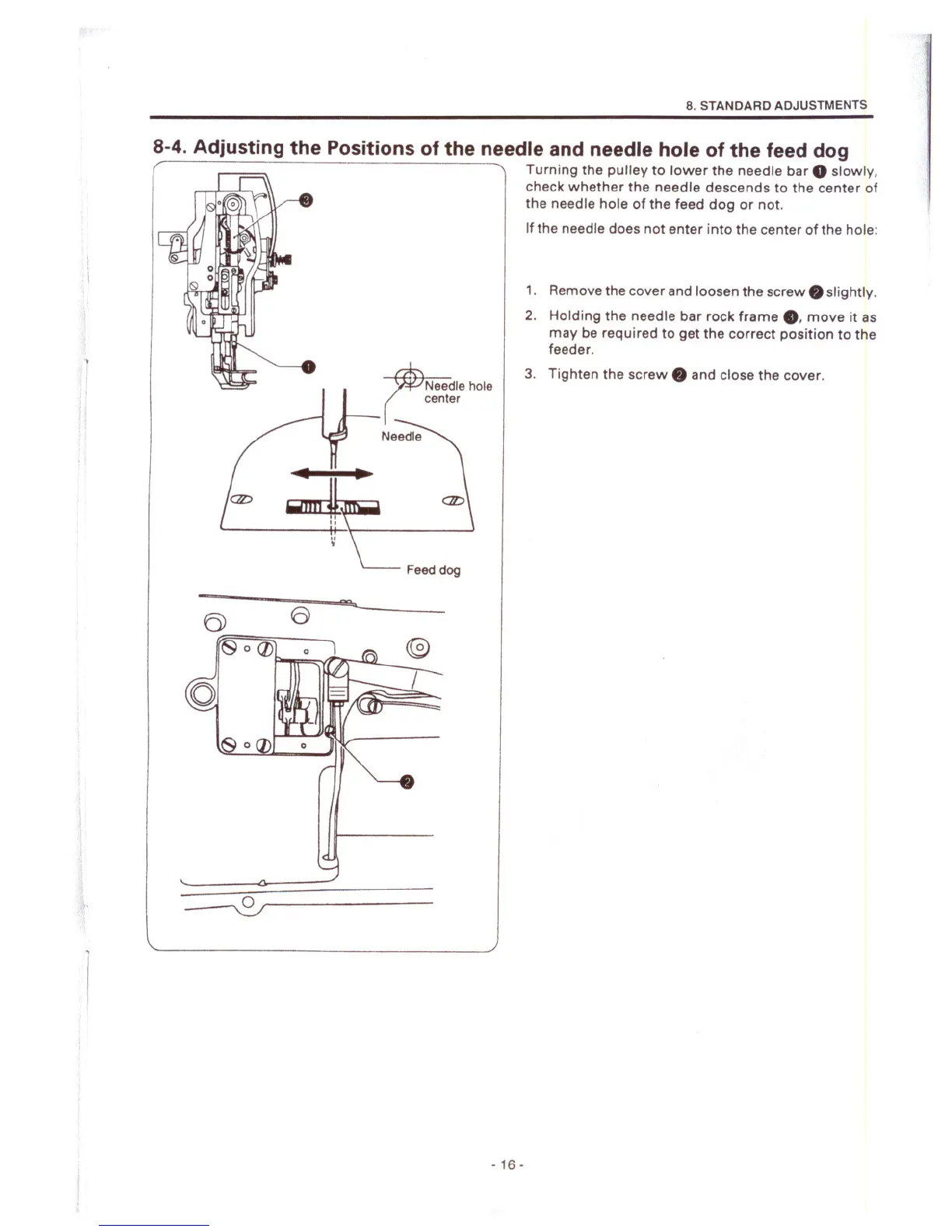

8-4. Adjusting the Positions of the needle and needle hole of the feed dog
Turning the pulley to lower the needle bar 0slowly,
check whether the needle descends to the center of
the needle hole of the feed dog or not.
If the needle does not enter into the center of the hole:
1. Remove the cover and loosen the screw. slightly.
2. Holding the needle bar rock frame
e, move it as
may be required to get the correct position to the
feeder.
3. Tighten the screw. and close the cover .
•
Feed dog
(@
7
- 16 -
