Consew 206RBL - Install Belt Guard (L); Install Thread Stand

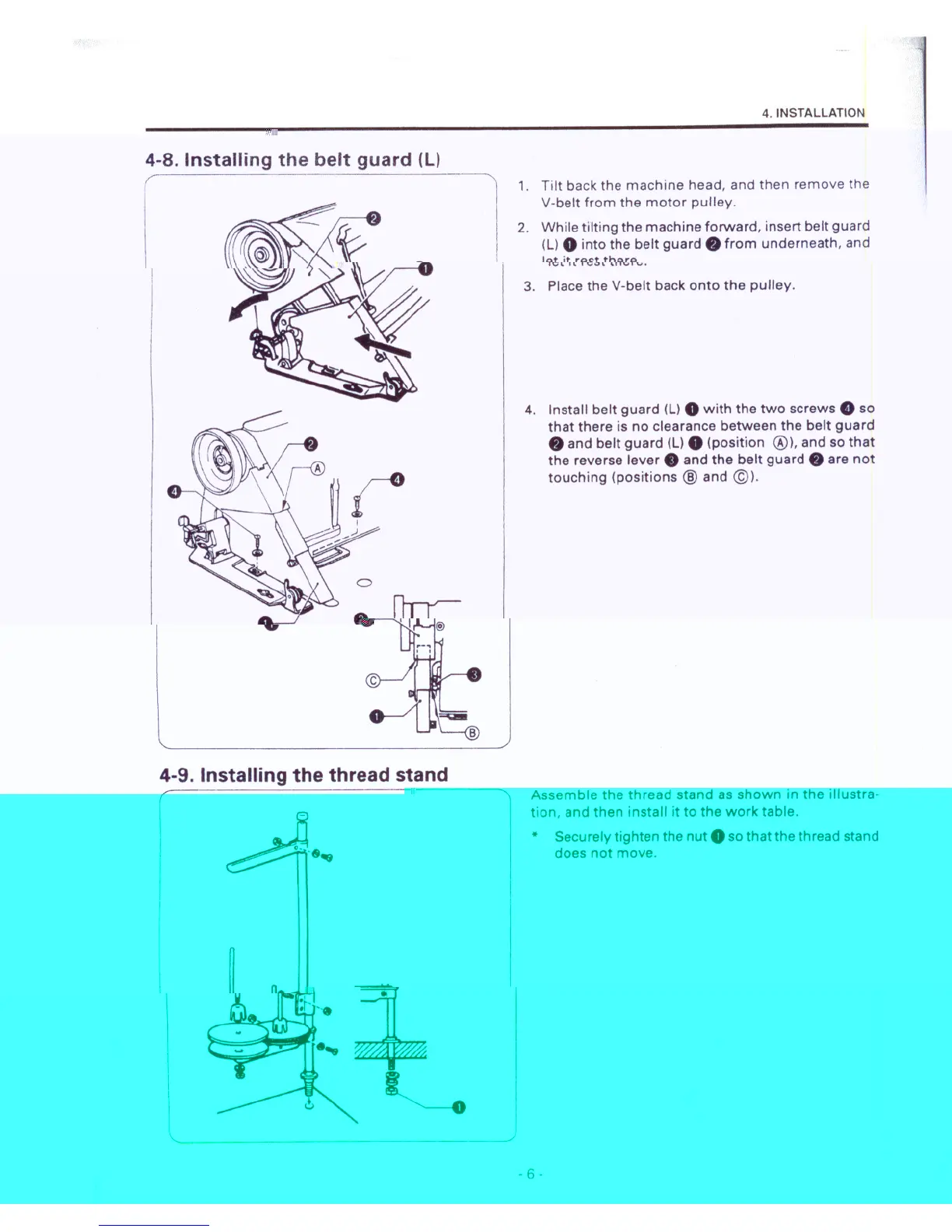

4-8. Installing the belt guard (L)
('
I
~
B
4-9. Installing the thread stand
4. INSTALLATION
1. Tilt back the machine head, and then remove the
V-belt from the motor pulley.
2. While tilting the machine forward, insert belt guard
(L)
0into the belt guard. from underneath, and
let it rest there.
3. Place the V-belt back onto the pulley.
4. Install belt guard (L)
0with the two screws eso
that there is no clearance between the belt guard
f) and belt guard (L) 0 (position (6)), and so that
the reverse lever. and the belt guard f) are not
touching (positions
® and @).
Assemble the thread stand as shown in the illustra-
tion, and then install it to the work table.
* Securely tighten the nut 0so that the thread stand
does not move.
- 6 -
