8. STANDARD ADJUSTMENTS
iJ

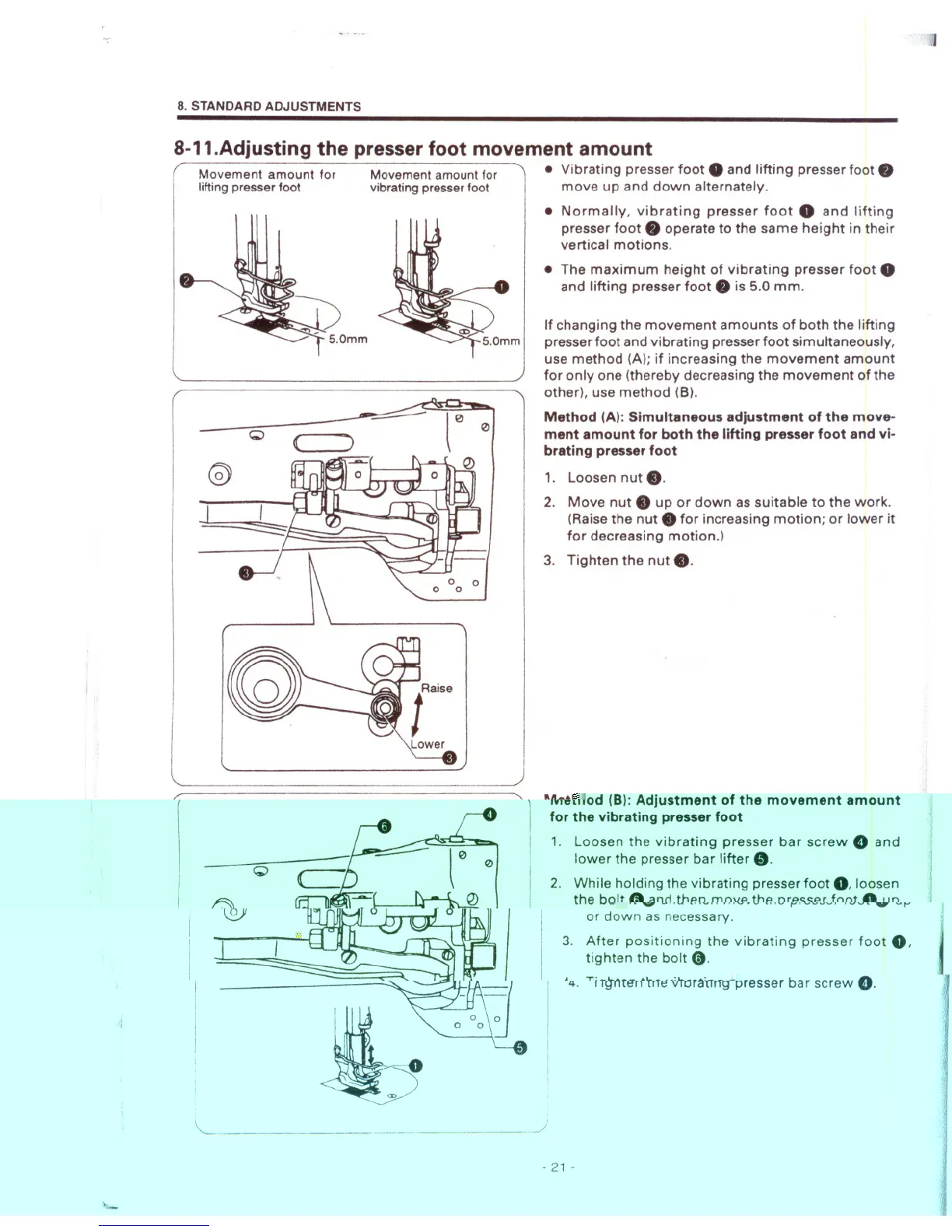

8-11.Adjusting the presser foot movement amount
Movement amount for Movementamountfor • Vibrating presser foot. and lifting presser foot.
liftingpresserfoot vibratingpresserfoot move up and down alternately .
• Normally, vibrating presser foot
0 and lifting
presser foot. operate to the same height in their
vertical motions .
• The maximum height of vibrating presser foot
0
and lifting presser foot. is 5.0 mm.
I
I
I
I
i
I
I,
I
i
'4
I
I
i
!
I
~
(
o
l
I
I
I
I
i
I
I
-_._------------_._--~
If changing the movement amounts of both the lifting
presser foot and vibrating presser foot simultaneously,
use method (A); if increasing the movement amount
for only one (thereby decreasing the movement of the
other), use method (B).
Method (A): Simultaneous adjustment of the move-
ment amount for both the lifting presser foot and vi-
brating presser foot
1. Loosen nut
e.
2. Move nut eup or down as suitable to the work.
(Raisethe nut
efor increasing motion; or lower it
for decreasing motion.)
3. Tighten the nut
e.
Method (B): Adjustment of the movement amount
for the vibrating presser foot
1. Loosen the vibrating presser bar screw
8and
lower the presser bar lifter
0.
2. While holding the vibrating presser foot 0,loosen
the bolt
0and then move the presser foot 0up
or down as necessary.
3. After positioning the vibrating presser foot
0,
tighten the bolt 0.
4. Tighten the vibrating presser bar screw 8.
