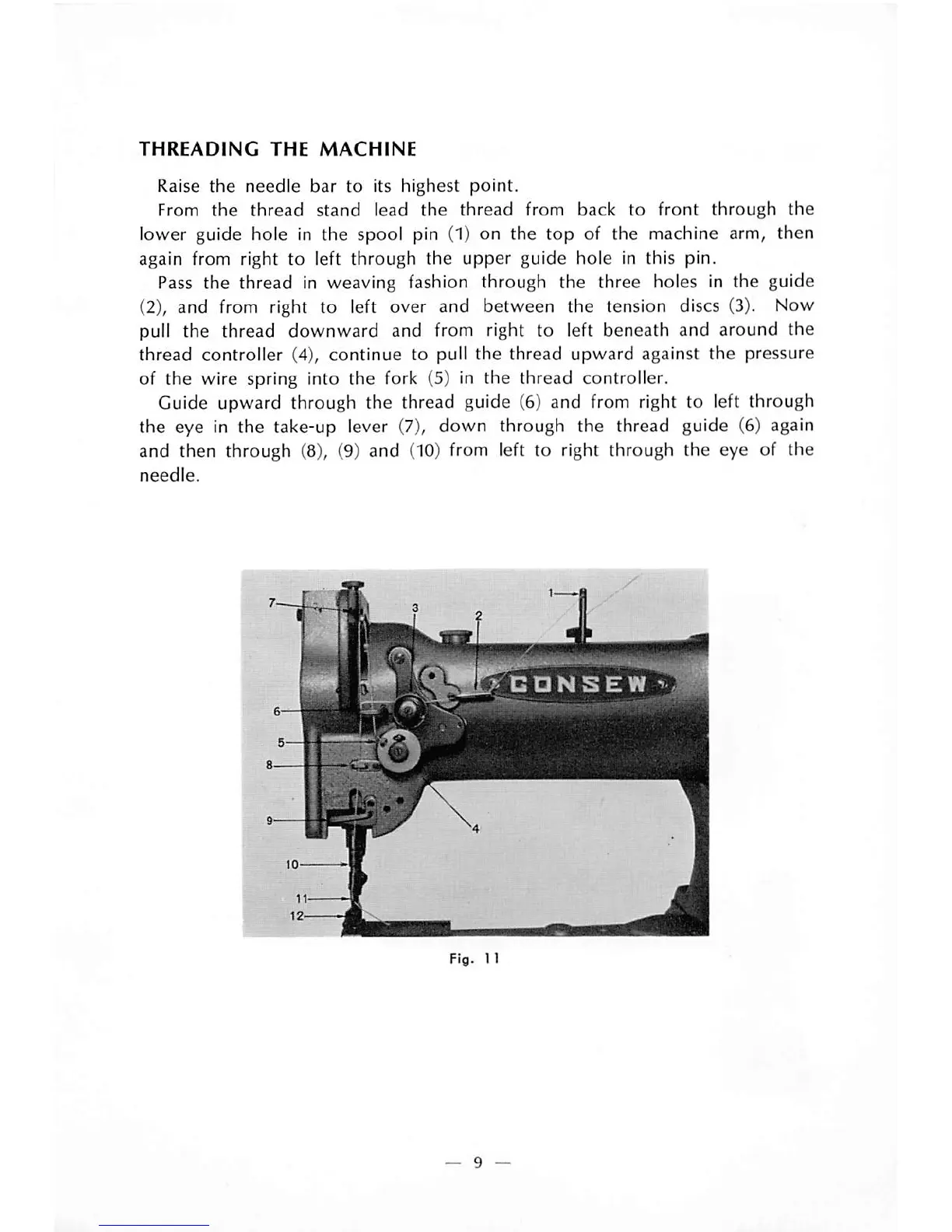

THREADING
THE
MACHINE
Raise
the
needle
bar
to its
highest
point.
From
the
thread
stand lead
the
thread
from back to front through
the
lower guide hole in the spool pin (1) on the top of the machine arm, then
again from right to left through the upper guide hole in this pin.
Pass the thread in weaving fashion through the three holes in the guide
(2), and from right to left over and between the tension discs (3). Now
pull the thread downward and from right to left beneath and around the
thread
controller (4),
continue
to pull the
thread
upward
against
the
pressure
of the wire spring into the fork (5) in the thread controller.
Guide upward through the thread guide (6) and from right to left through
the eye in the take-up lever (7), down through the thread guide (6) again
and then through (8), (9) and
(10)
from left to right through the eye of the
needle.
