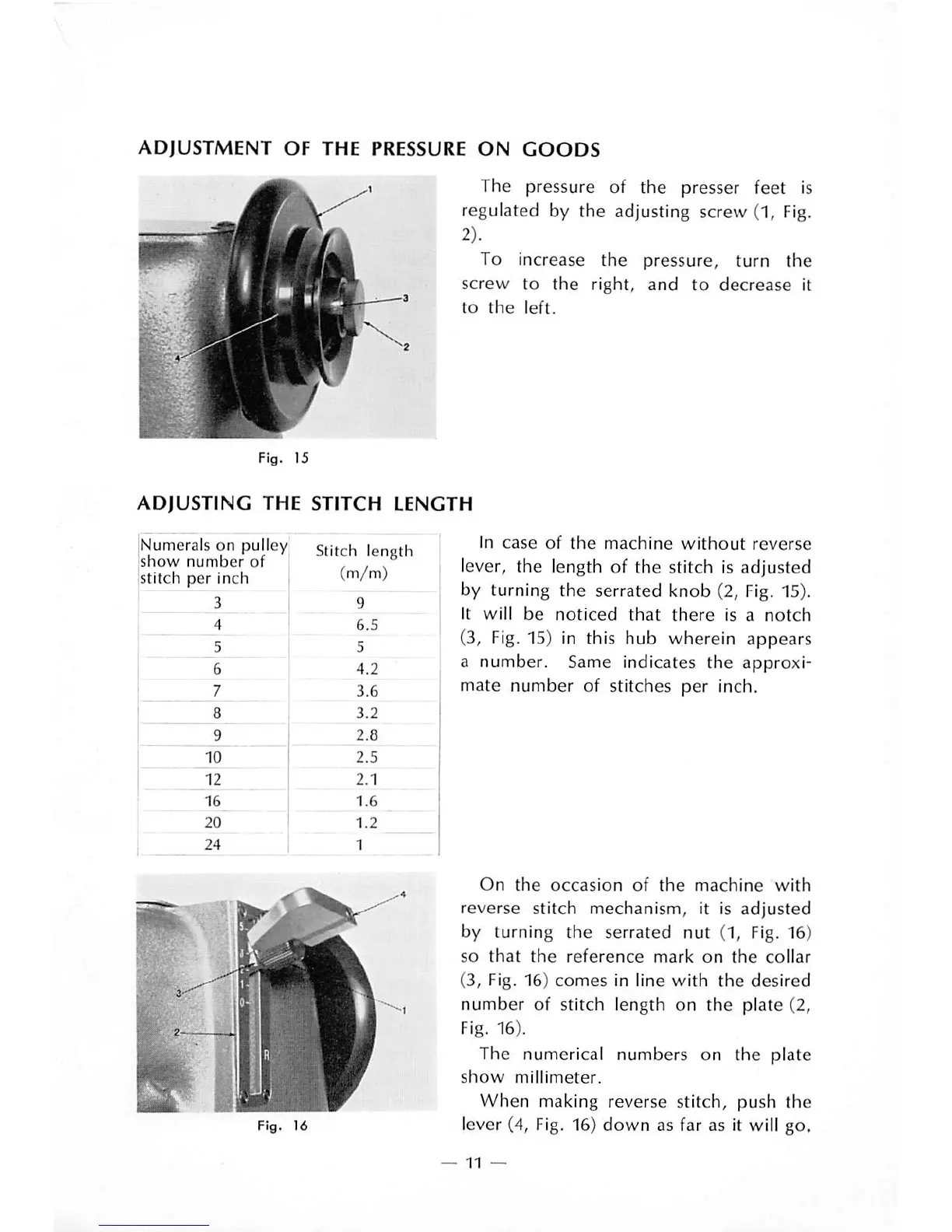

ADJUSTMENT
OF
THE
PRESSURE
ON
GOODS
Fig.
]5
The pressure of the presser feet is
regulated by the adjusting screw (1, Fig.
2).
To
increase
the
pressure,
turn
the
screw
to
the
right,
and
to
decrease
it
to
the
left.
ADJUSTING
THE
STITCH
LENGTH
[Numerals
on
pulley
jshow number of
:stitch per inch
~3
Stitch
length
(m/m)
Fig. 16
In
case
of
the
machine
without
reverse
lever, the length of the stitch Is adjusted
by turning the serrated knob (2,
Fig.
15).
It
will
be
noticed
that
there
is a
notch
(3,
Fig.
15) in this hub wherein appears
a number. Same indicates the approxi
mate number of stitches per inch.
On
the
occasion
of
the
machine
with
reverse
stitch
mechanism,
it is
adjusted
by turning the serrated nut (1, Fig. 16)
so
that
the
reference
mark
on
the
collar
(3, Fig. 16) comes in line with
the
desired
number
of stitch length on
the
plate {2,
Fig. 16).
The numerical numbers on the plate
show
millimeter.
When
making reverse stitch, push
the
lever (4, Fig. 16) down as far as it will go.
