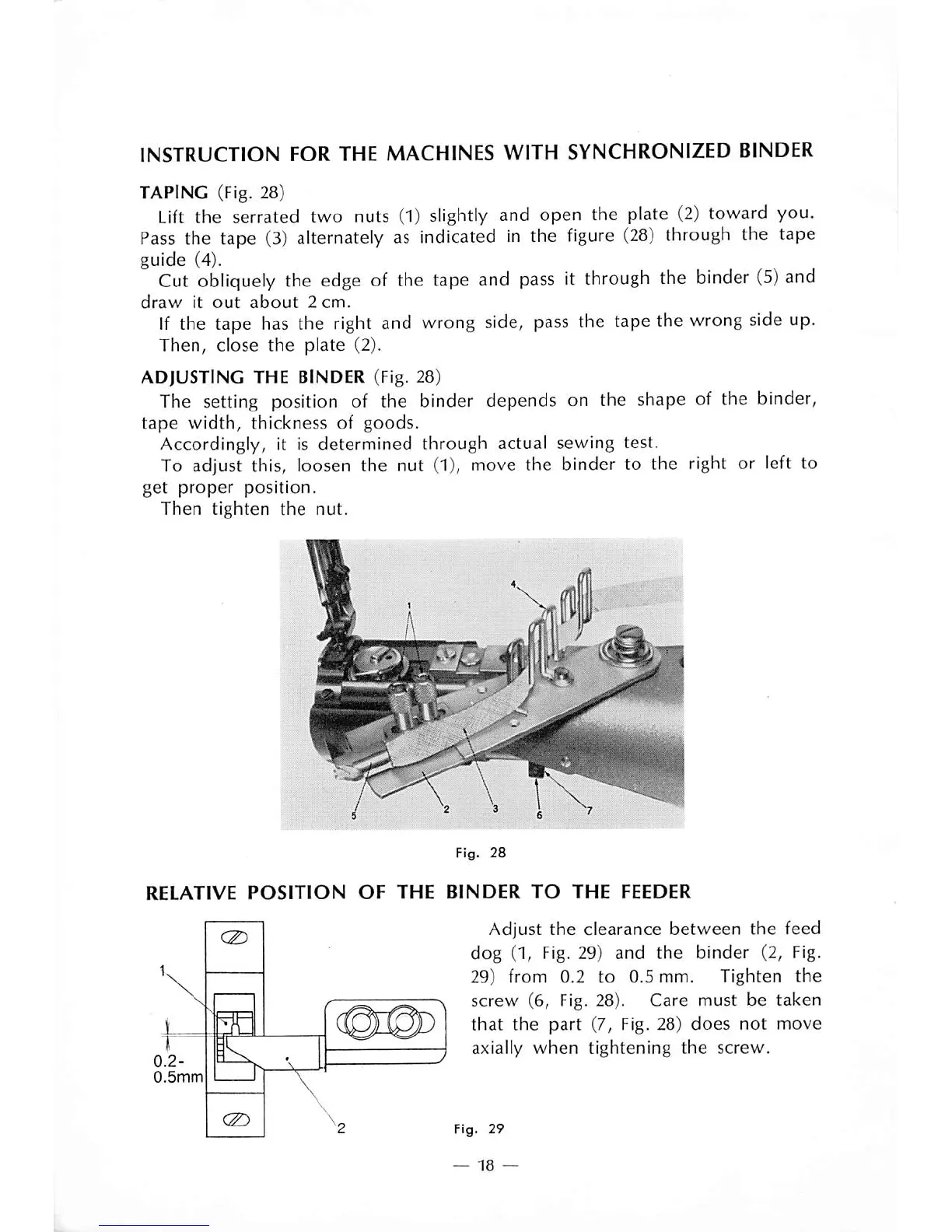

INSTRUCTION FOR THE MACHINES WITH SYNCHRONIZED BINDER
TAPING (Fig. 28)
Lift
the serrated two nuts
(1)
slightly and open the plate (2) toward you.
Pass
the tape
(3)
alternately
as
indicated
in
the
figure
(28)
through
the tape
guide (4).
Cut
obliquely
the
edge
of the tape and
pass
it
through
the
binder
(5)
and
draw
it
out
about
2
cm.
If
the tape
has
the
right
and
wrong
side,
pass
the tape the
wrong
side
up.
Then, close
the
plate (2).
ADJUSTING THE BINDER (Fig. 28)
The setting position of the binder depends on the shape of the binder,
tape
width, thickness of goods.
Accordingly, it is determined through actual sewing test.
To adjust this, loosen the nut (1), move the binder to the right or left to
get
proper
position.
Then tighten the nut.
RELATIVE
POSITION
OF
THE
BINDER
TO
THE
FEEDER
0.2-
0.5mm
Adjust
the
clearance
between
the
feed
dog (1,
Fig.
29) and the binder (2, Fig.
29) from 0.2 to 0.5 mm. Tighten
the
screw
(6, Fig. 28). Care must be
taken
that
the
part
(7, Fig. 28)
does
not
move
axially
when
tightening
the
screw.
Fig. 29
