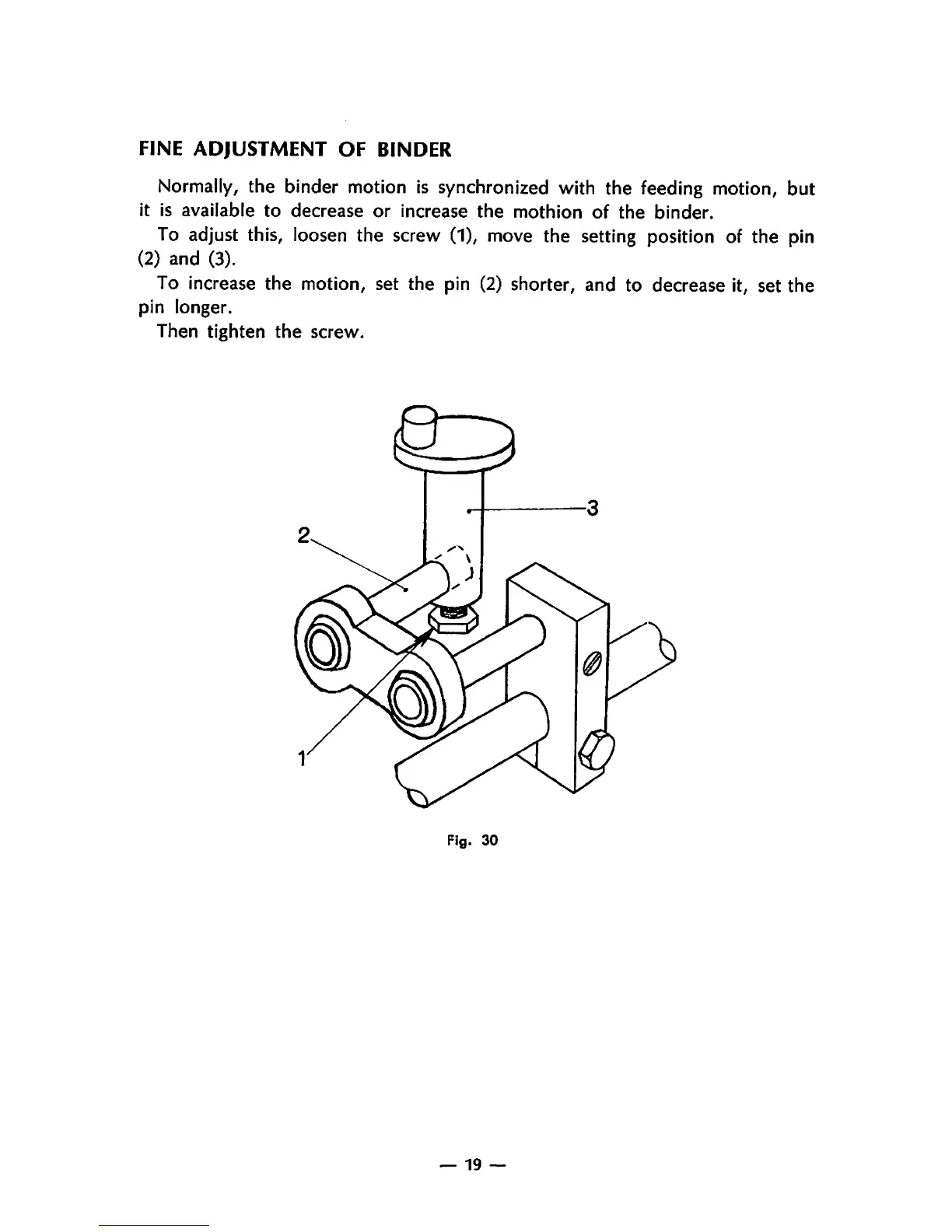

FINE
ADJUSTMENT
OF
BINDER
Normally, the binder motion is synchronized with the feeding motion, but
it is
available
to
decrease
or
increase
the
mothion
of
the
binder.
To adjust this, loosen the screw (1), move the setting position of the pin
(2)
and
(3).
To increase the motion, set the pin (2) shorter, and to decrease it, set the
pin longer.
Then tighten
the
screw.
Fig. 30
—
19
