6. Connecting with Expansion Accessories
ADI16-4(USB)
51
Connecting the Module
Inserting the stack hook by aligning it with the hook insertion inlet for the other device automatically
locks the module. (If a stack connector protective cover is attached, the connection operation should be
performed after the cover is removed.)

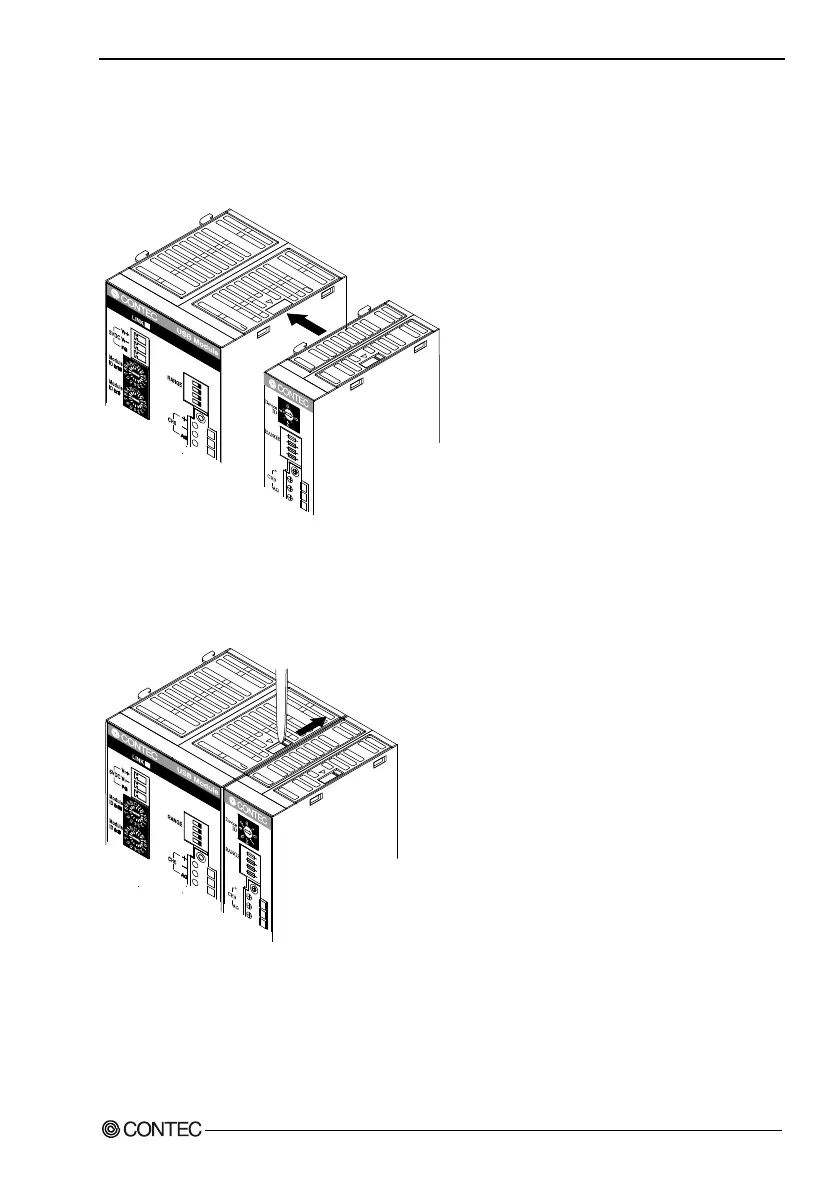

Figure 6.5. Connecting the Module
Removing the Module
Unlock the locking device at the top and the bottom. Remove the connected module from the hook.
Figure 6.6. Removing the Module
