Contec ADI16-4(USB) User Manual

3. Setup
16
ADI16-4(USB)
Connecting to a PC
Connect the USB device to a PC and install the driver.
It is illustrated by taking example for Windows XP. Displaying screen may be different according to
different OS, but basic settings are the same.
Points
- You must be logged on as an administrator or a member of the Administrators group to work on
Windows 2000 or Windows XP.
It may cause a trouble in recognizing and operating the device according to the kind of USB hub. If
you use the USB hub, we encourage you to take advantage of the CONTEC’s product loan service
to confirm operation before purchasing.
Step1 Setting supplied CD-ROM “API-USBP(WDM)”
The menu screen is displayed. The menu will be used in “Software Installation” on page 13 (If the
menu screen is not displayed for PC settings, please jump to Step2.)
Step2 Connecting USB port with a PC
Use the bundled USB cable to connect the
USB port of the USB module to the USB
port on the PC.
Check the orientation of the connector and
plug it deep into the port.

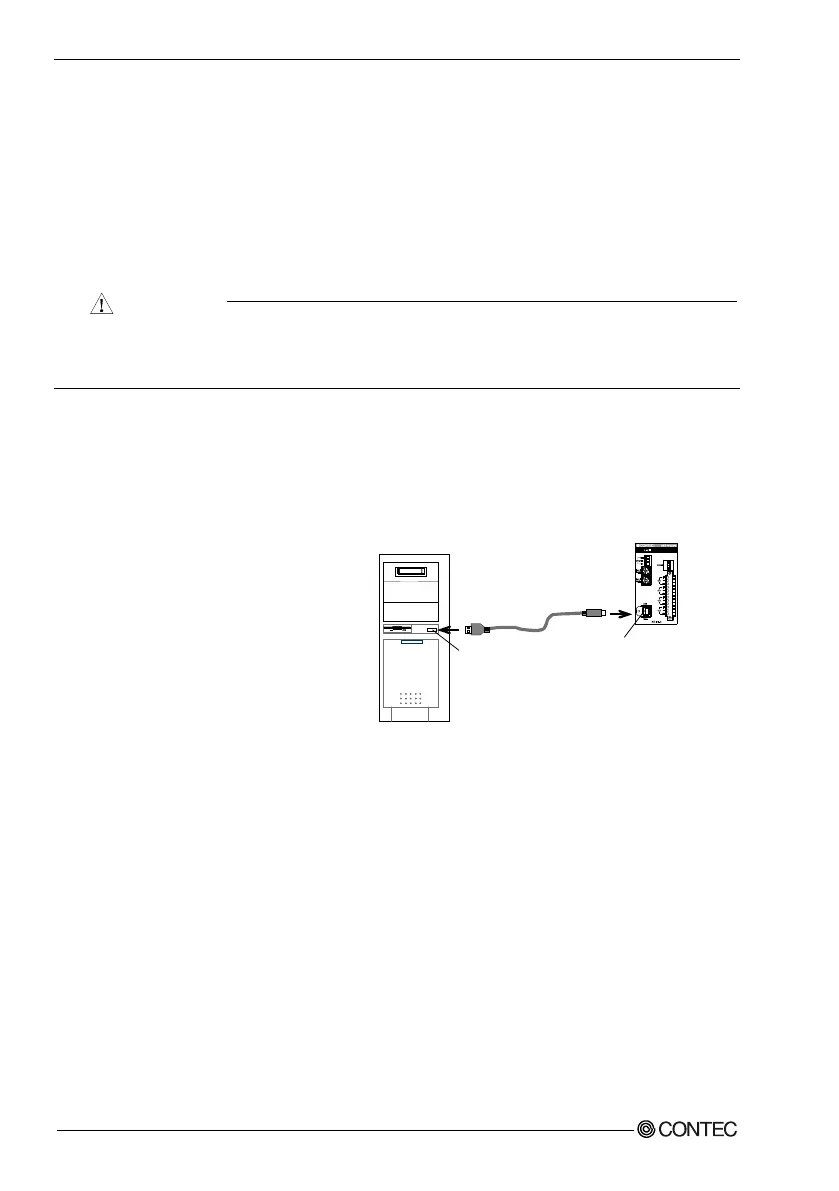

Figure 3.4 Connecting to a PC
Note!
Always use the supplied AC adapter or
power supply unit (option).
C
AUTION
USB
Po
rt
USB Port
USB Cable
0
2
3
4
5
6
7
9
A
C
D
E
F
8
0
2
3
4
5
6
7
9
A
C
D
E
F
8
