Control Techniques M'Ax 406 User Manual

*
M’Ax User Guide 101
Issue Number: 4

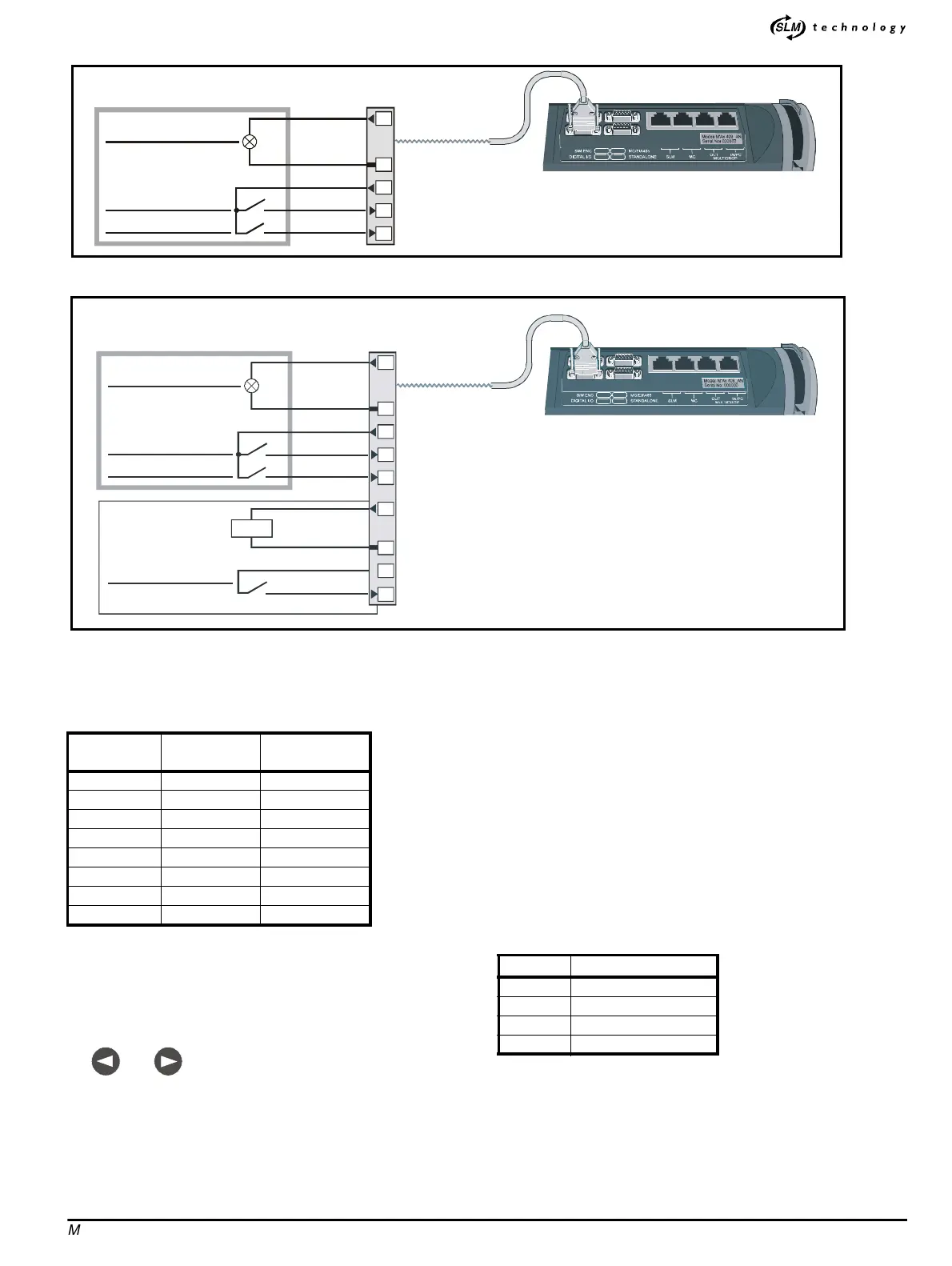

Figure E-2 Example DIGITAL I/O terminals in use
Figure E-3 Connections made to the selected DIGITAL I/O
terminals
7. Use the following table to find out which Input selection parameter to
adjust:
8. Set parameter
8.25 at 10.53.
9. Perform the following, as appropriate:
Version _AN
Initiate the save operation by setting parameter XX.00 at 1000.
Execute the operation by performing either of the following:
• While the display is in Edit mode, press at the same time:
•Setparameter
10.38 at 100 (via serial communications)
Version _SL
Version _AN
(if required)
Ensure the Drive is disabled by checking that the
Hardware enable
contact is open or that parameter 6.15 is set at 0, then perform either
of the following:
• Initiate thestore operation by setting parameter
0.50 at 2 (Prog).
Execute the operation by setting parameter
10.38 at 100.
•Set
11.67 Flash update enable at 1.
10. To use the saved values (version _
AN only) after the next power-up,
ensure parameter
0.50 is set at no (0). If you have to change the
setting, immediately afterwards execute the operation, as described
in step 9.
11. To use the stored values after the next power-up, ensure parameter
0.50 is set at 4 (boot2).Ifyouhavetochangethesetting,
immediately afterwards execute the operation, as described in step
9.
Blocking diode and fuse
12. If the auxiliary back-up supply is also to supply power to the motor
for positioning, refer to the following table to establish the fuse rating
and the minimum permissible current-rating for the blocking diode:
DIGITAL I/O
4
11
15
10
6
RUN
RESET
AT ZERO SPEED
Digital output 2
Digital input 6
0V COMMON
24V user supply
Digital input 1
DIGITAL I/O
4
11
15
10
6
RUN
RESET
AT ZERO SPEED
Digital output 2
Digital input 6
0V COMMON
24V user supply
Digital input 1
1
11
15
3
Digital output 3
0V COMMON
24V user supply
Digital input 5
Interlock circuit
UU TRIP ENABLE
Digital intput
DIGITAL I/O
terminal
Input selection
parameter
1108.21
298.22
388.23
478.24
518.25
668.26
7138.27
8128.28
and
Model Current rating
M’Ax 403 6A
M’Ax 406 9A
M’Ax 409 12A
M’Ax 412 14A
