Signal connections for remote control by motion
controller communicating by
) technology
Suitable for versions:
_SL,_AN
ThemotioncontrollerisusedalsoforsettinguptheDrive.
Connections shown in grey are optional.
The RESET contact is required for version _SL, but is optional for
version _AN.

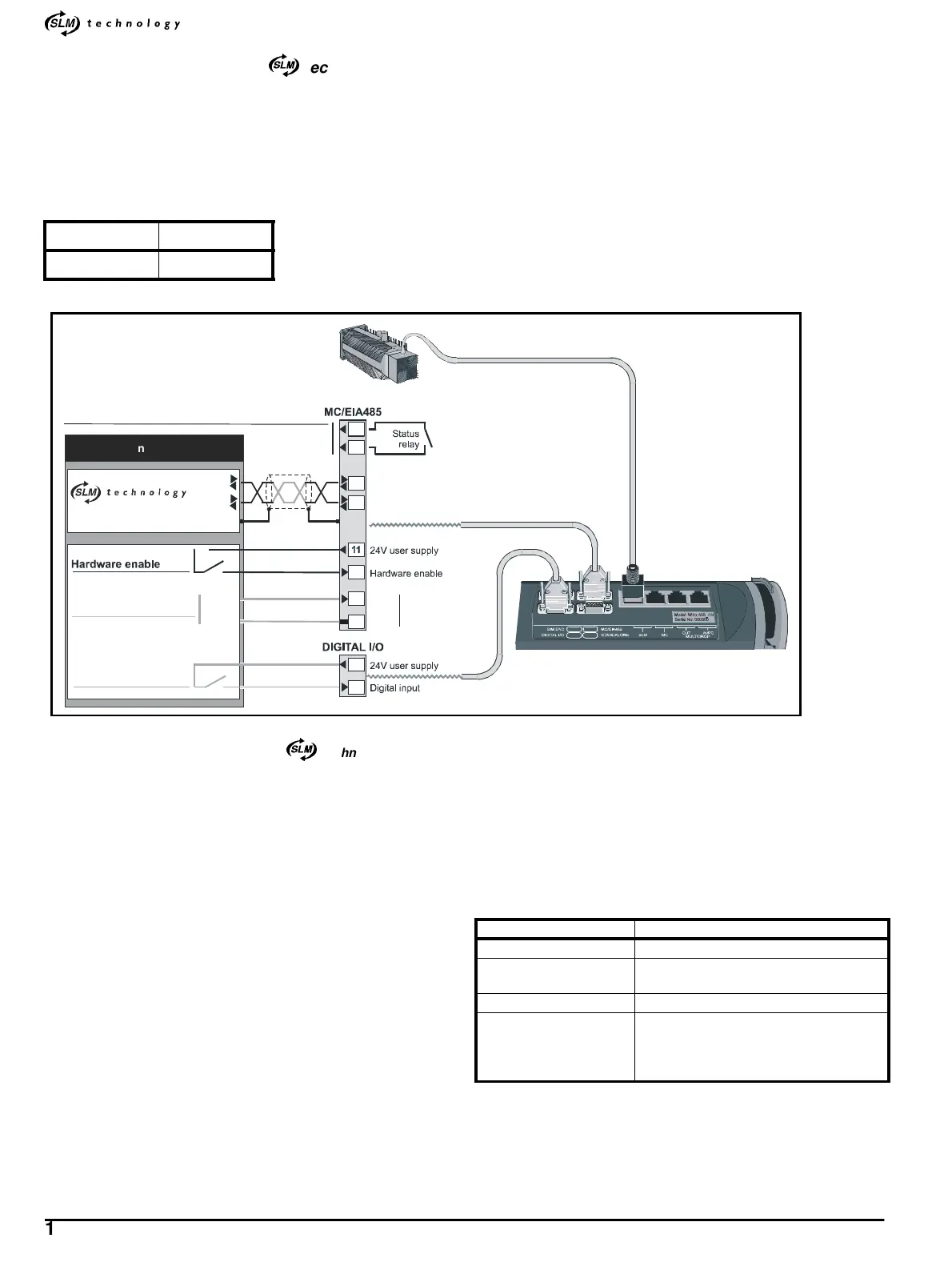

Figure 2-12 Signal connections for remote control by a motion
controller communicating by
) technology
2.6 Planning the signal-current
consumption
When the Drive is connected to the AC supply, an internal 24VDC supply
supplies the internal and external signal circuits. The maximum output
current of this supply is 400mA. Refer to Table 2-1 for calculating the
total load that the signal circuits will impose on this supply.
Table 2-1 Currents drawn from the internal 24V supply
If the total exceeds 400mA, check that the total at any one time does not
exceed 400mA (not all digital terminals may be drawing current
simultaneously). Then, if necessary, reduce the current drawn by the
user-defined circuits and from the digital outputs.
Parameter Setting
11.66 0
6
6
1
2
10
5
4
3
15
+24V
0V
SLM-and-user
back-up supply
com\
com
RESET
0V
com\
com
+24V
0V
+24V
0V
+24V
0V
+24V
0V
24V back-up supply
*
Motion controller
8
Drive monitoring
Circuit Current drawn
SLM and control circuits 65mA
24V user supply User-defined circuits Each digital input
(when activated): 9mA
Digital outputs User-defined loads, up to 100mA each
Drive-status supply
(current-source output)
0mA when the Drive-status supply is not
used
Up to 85mA when the Drive-status supply
is linked to other Drive(s)
